Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Install the park lock module (2) to the steering column (1).

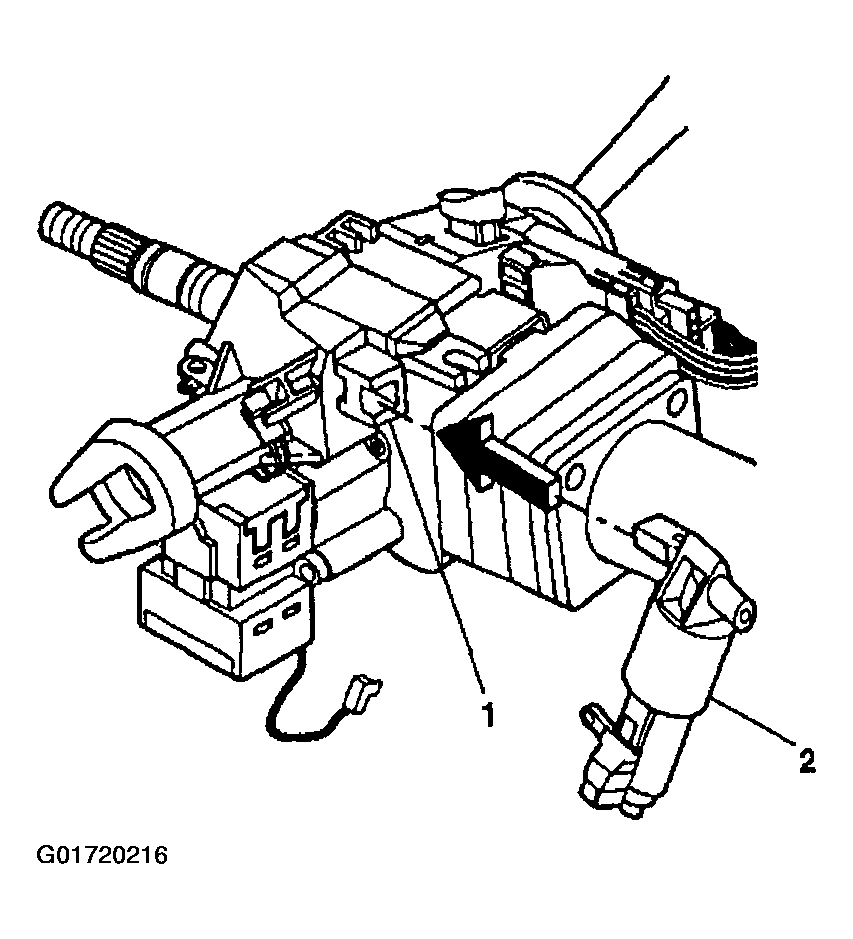

Fig 1: Steering Column Assembly And Park Lock Module
Courtesy of GENERAL MOTORS CORP.
Install the screw (1) to the park lock module (3).
Connect the electrical connector (2) to the park lock module (3).

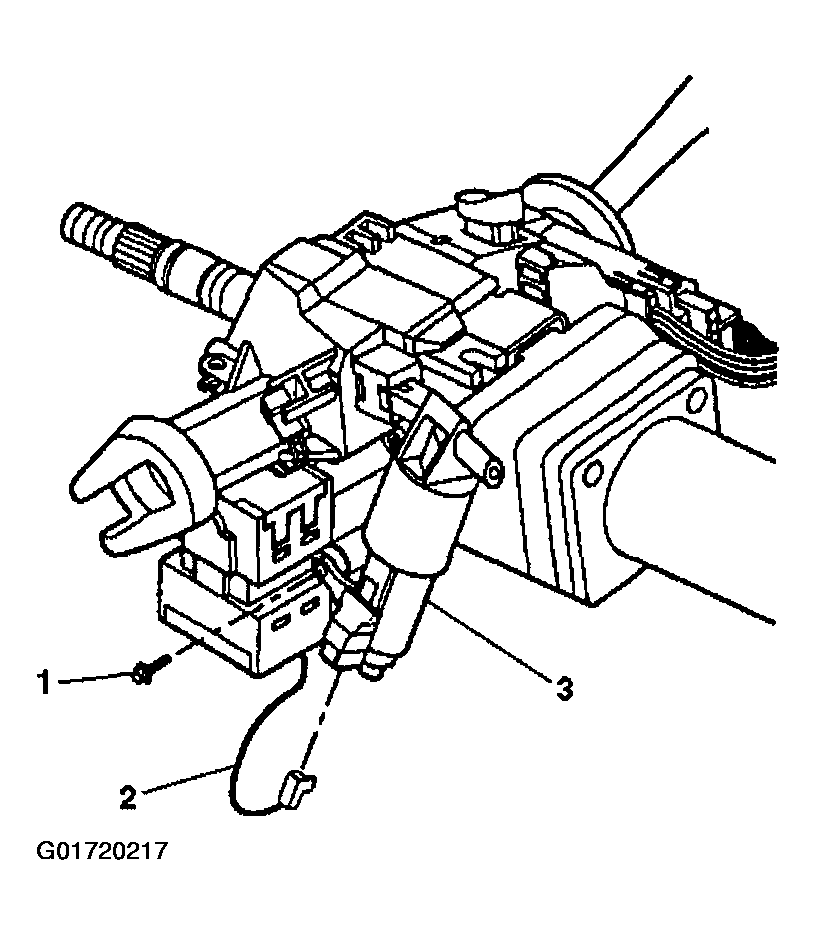

Fig 2: Electrical Connector And Park Lock Module
Courtesy of GENERAL MOTORS CORP.
Install the trim covers to the steering column. Refer to Steering Column Trim Covers Replacement - On Vehicle .
Check the operation of the park lock module (3).
