Shift Lever Replacement - On Vehicle With Tow/Haul Switch: Installation

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 GMC Sierra, 2002 Chevrolet Suburban, and 2002 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the shift lever (1). See Fig 1.
  2. Connect the shifter electrical connector.
  3. Install the wire straps to the harness.
  4. Install the harness retaining pin (4) to the instrument panel. See Fig 3.
  5. Install the knee bolster deflector bracket and nuts (1). See Fig 2. Tighten the nuts to 80 INCH lbs. (9 N.m).
  6. Install the knee bolster.
  7. Install the Torx® head screw. Tighten the screw to 13 INCH lbs. (1.5 N.m).
  8. Roll the seal over the Torx® head screw.
  9. Install the lower column cover.
  10. Install the 2 Torx® head screws to the lower column cover. Tighten the screws to 31 INCH lbs. (3.5 N.m).

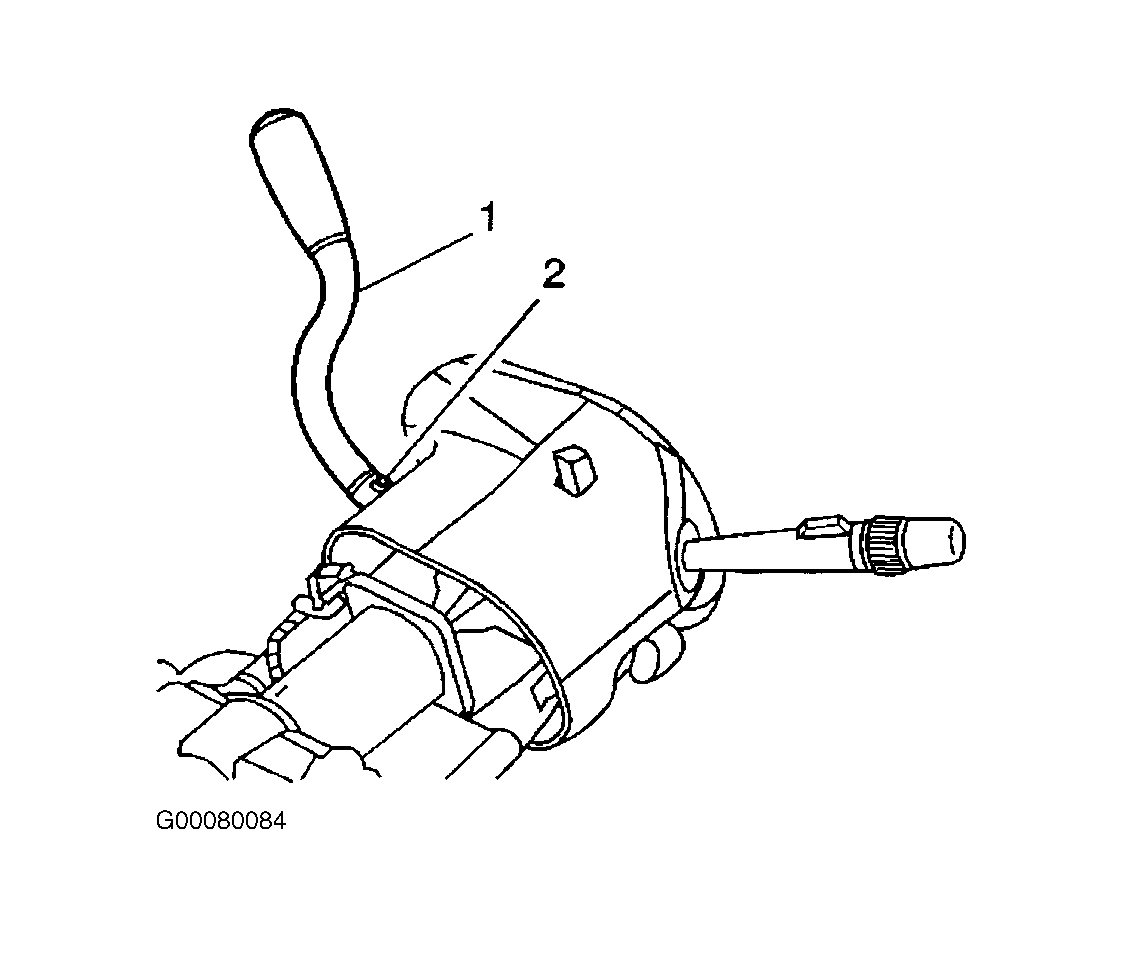

Fig 1: Shift Lever Replacement (1 Of 3)
G00080084Courtesy of GENERAL MOTORS CORP.

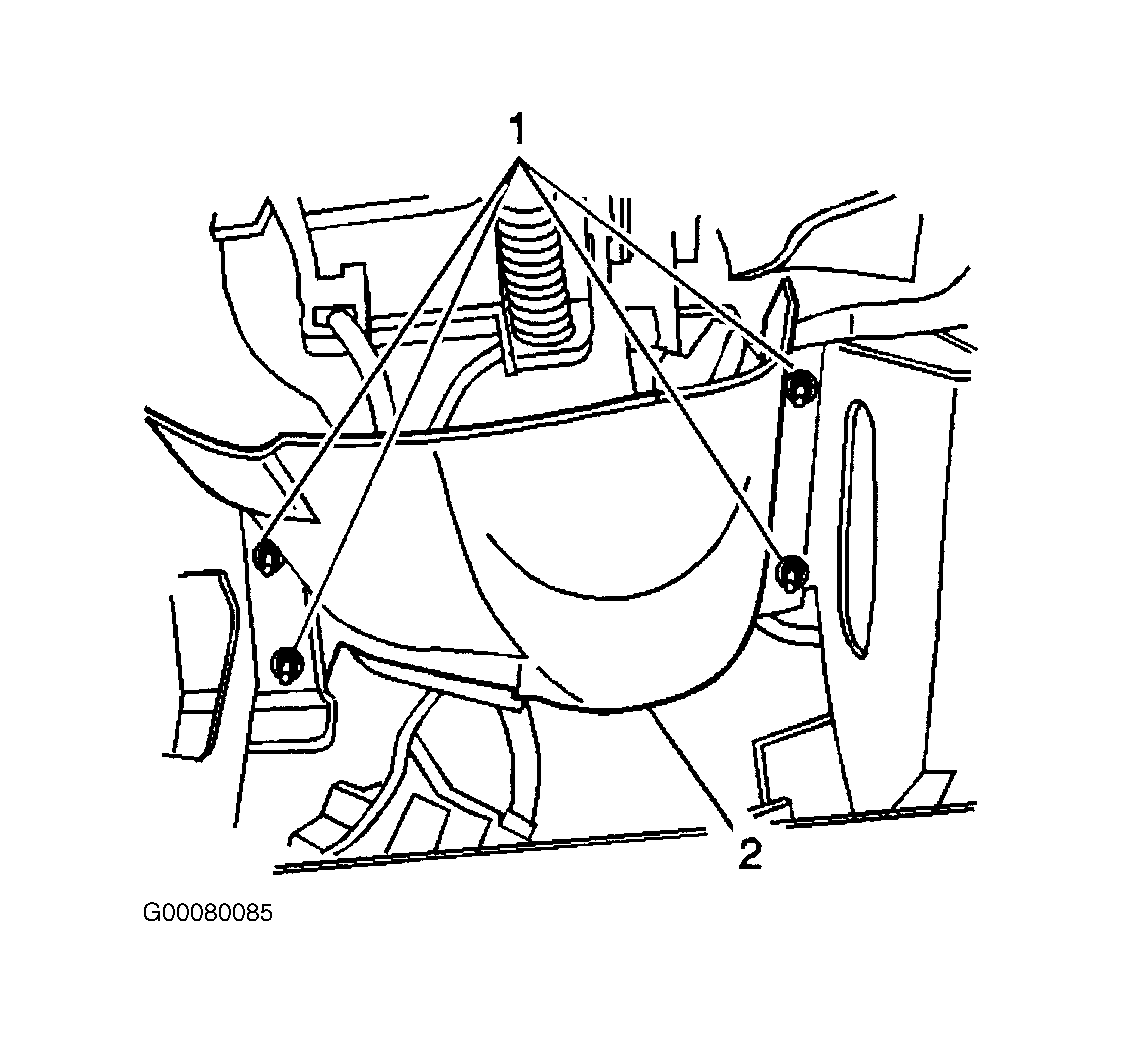

Fig 2: Shift Lever Replacement (2 Of 3)
G00080085Courtesy of GENERAL MOTORS CORP.

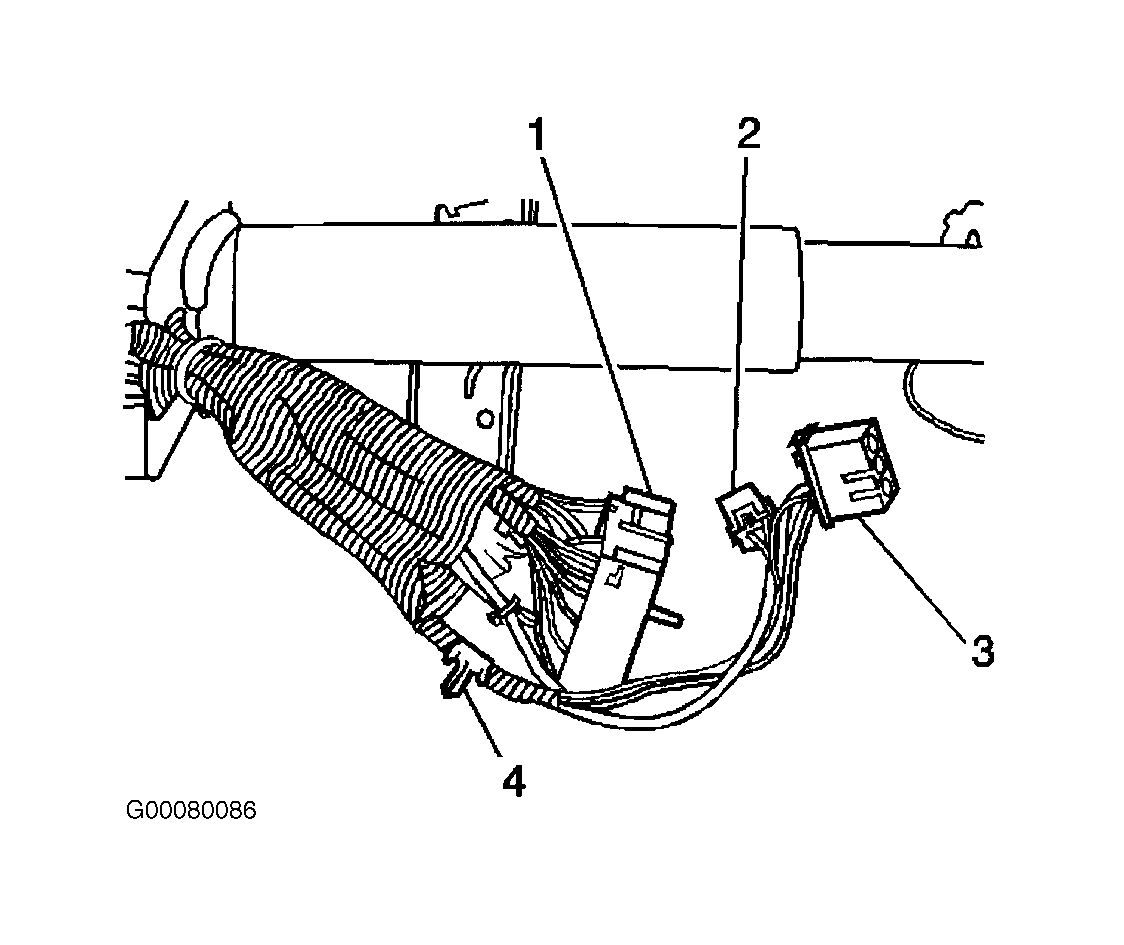

Fig 3: Shift Lever Replacement (3 Of 3)
G00080086Courtesy of GENERAL MOTORS CORP.
