Shift Speed Specifications

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 GMC Sierra, 2002 Chevrolet Suburban, and 2002 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

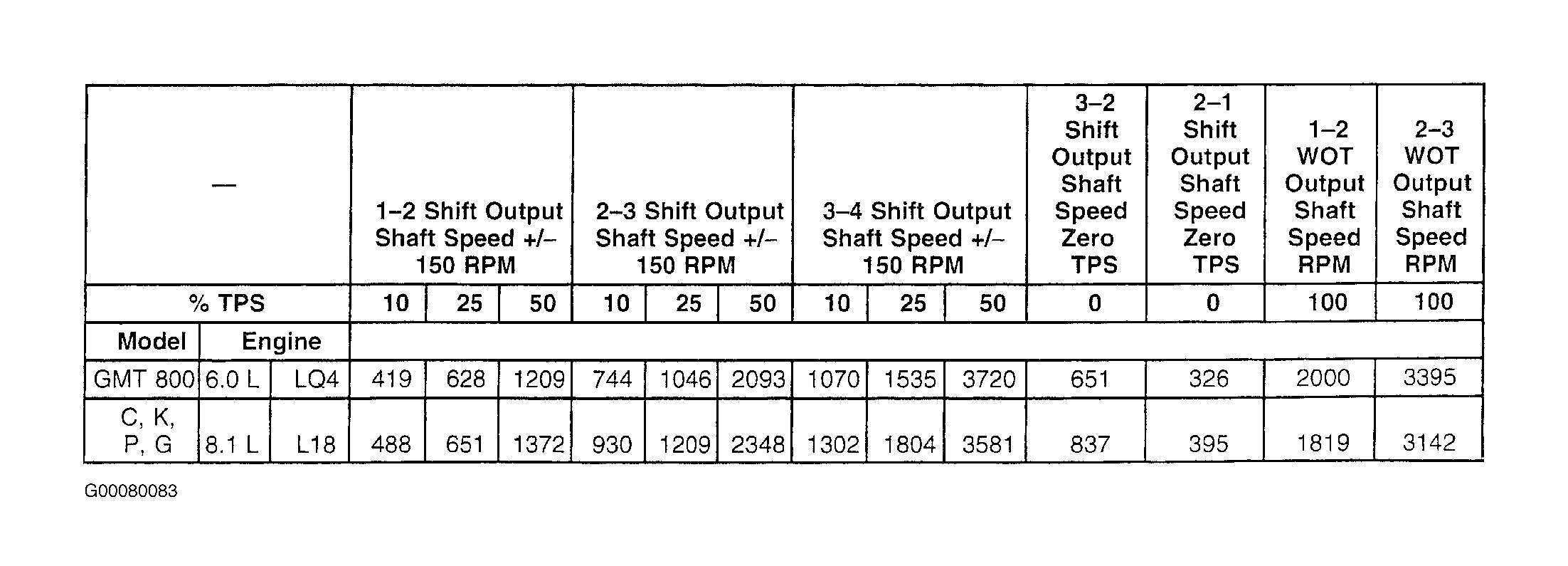

Fig 1: Shift Speed Specifications
G00080083Courtesy of GENERAL MOTORS CORP.
