Timing Chain, Sprockets, And TENSIONER (Unit Repair) Removal: Removal

IMPORTANT:  The timing chain tensioner must be removed to unload chain tension before the timing chain is removed. If it is not, the timing chain will become misaligned and it will be difficult to remove.

1. Remove upper timing chain guide.
2. Remove timing chain tensioner plunger.

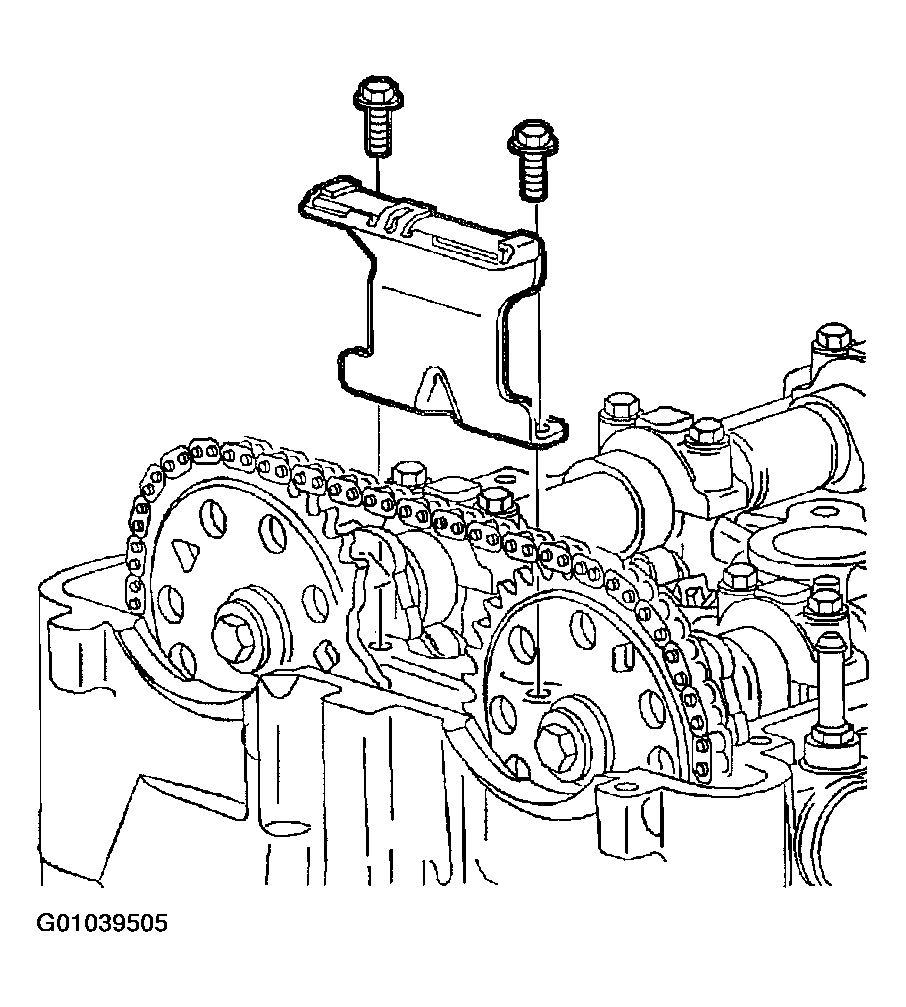

   Fig 1: Removing Upper Timing Chain Guide

   Courtesy of GENERAL MOTORS CORP.

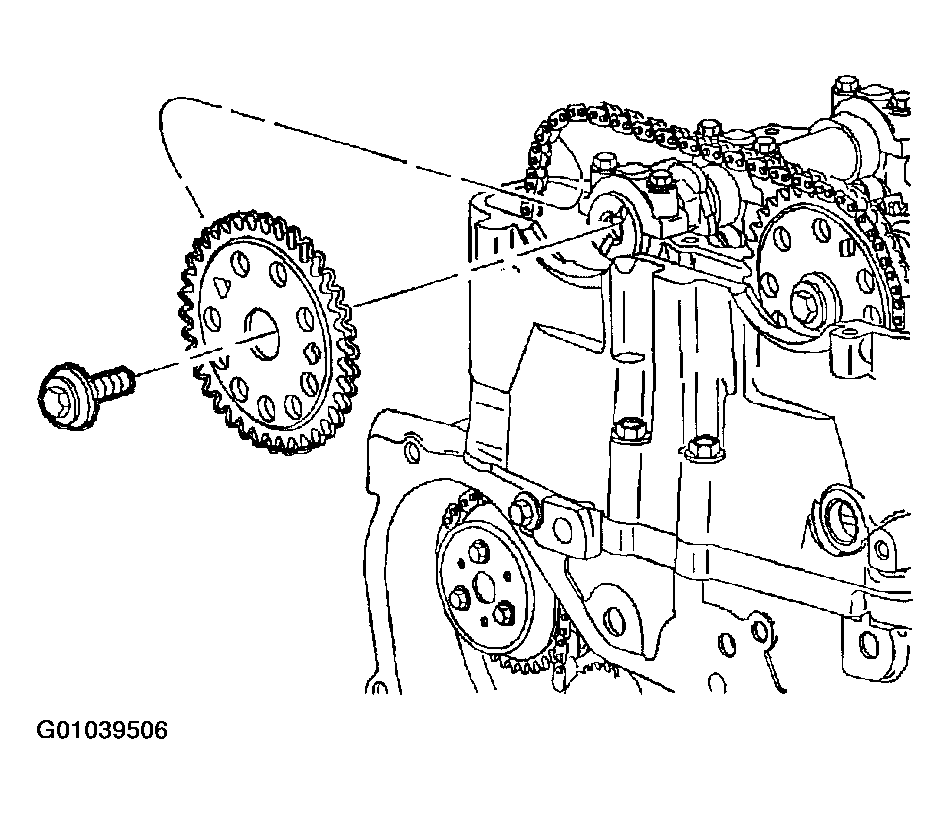

3. Remove exhaust cam bolt and exhaust cam sprocket. Discard bolt.
   Fig 2: Removing Exhaust Cam Bolt And Exhaust Cam Sprocket

   Courtesy of GENERAL MOTORS CORP.

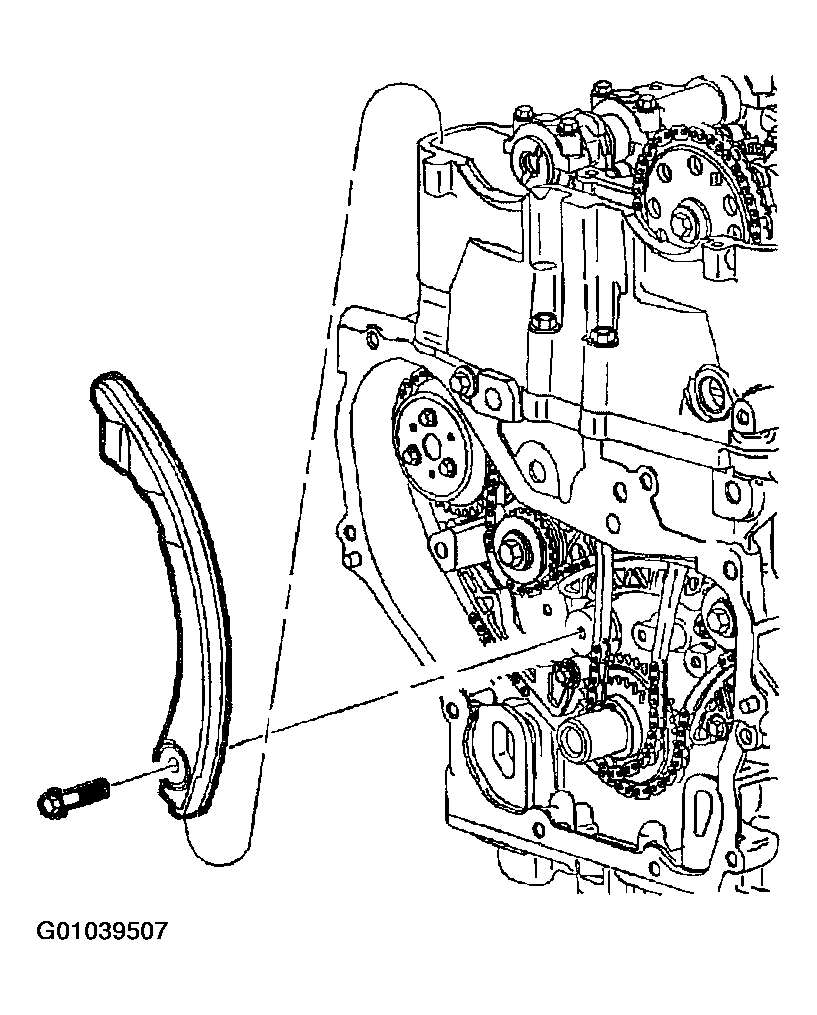

4. Remove adjustable timing chain guide.
   Fig 3: Removing Adjustable Timing Chain Guide

   Courtesy of GENERAL MOTORS CORP.

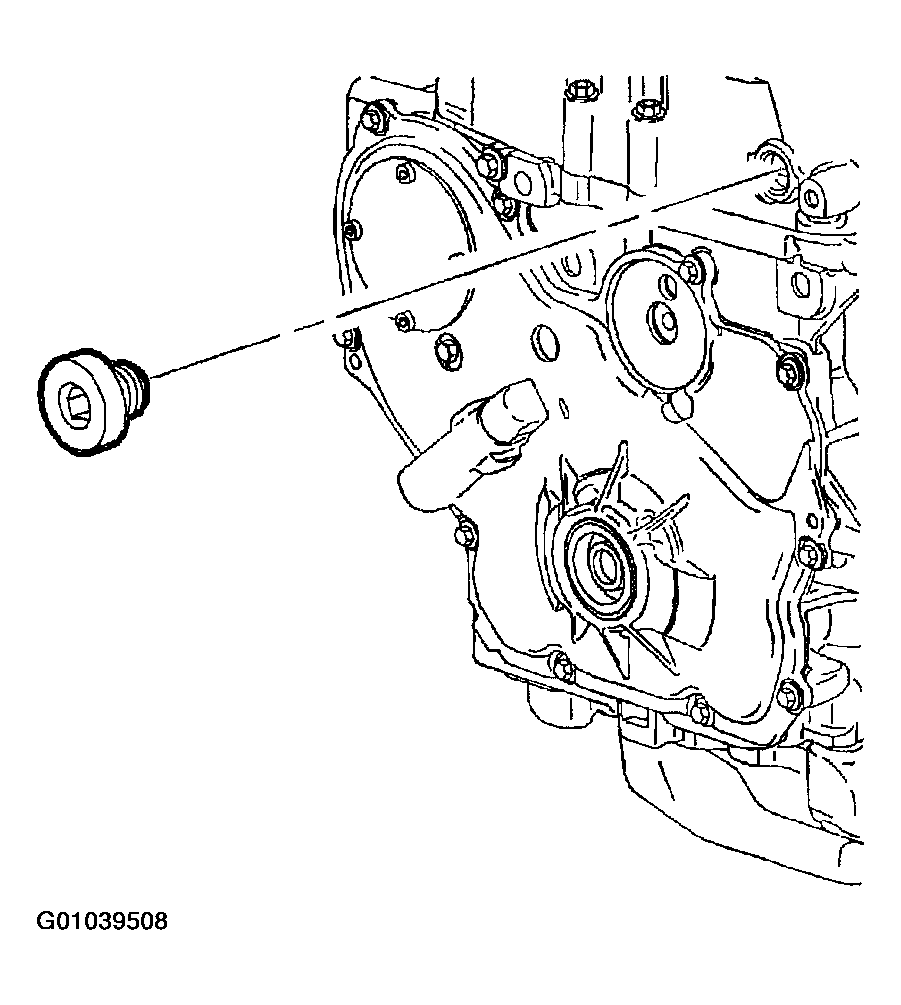

5. Remove plug to gain access to fixed timing chain guide bolt.
   Fig 4: Removing Plug

   Courtesy of GENERAL MOTORS CORP.

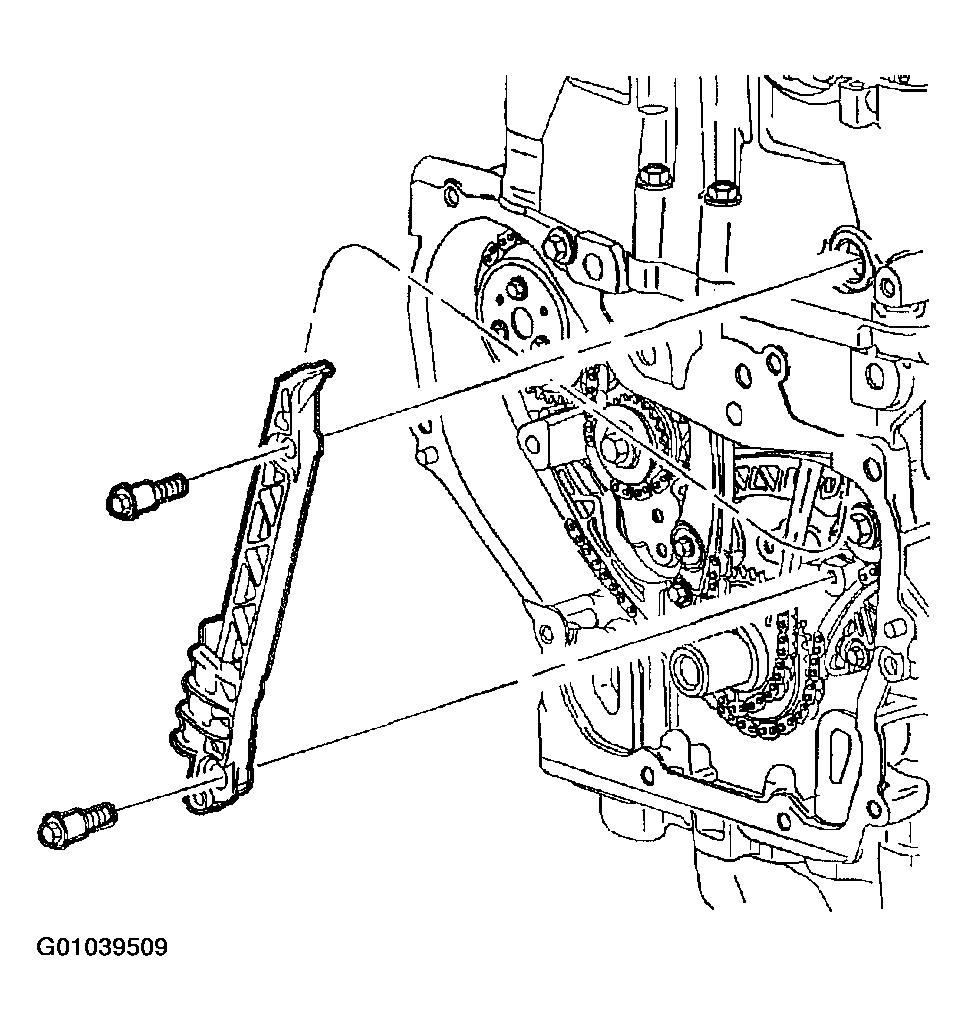

6. Remove fixed timing chain guide.
   Fig 5: Removing Fixed Timing Chain Guide

   Courtesy of GENERAL MOTORS CORP.
7. Locate hex on the intake camshaft and hold with an appropriate size wrench.

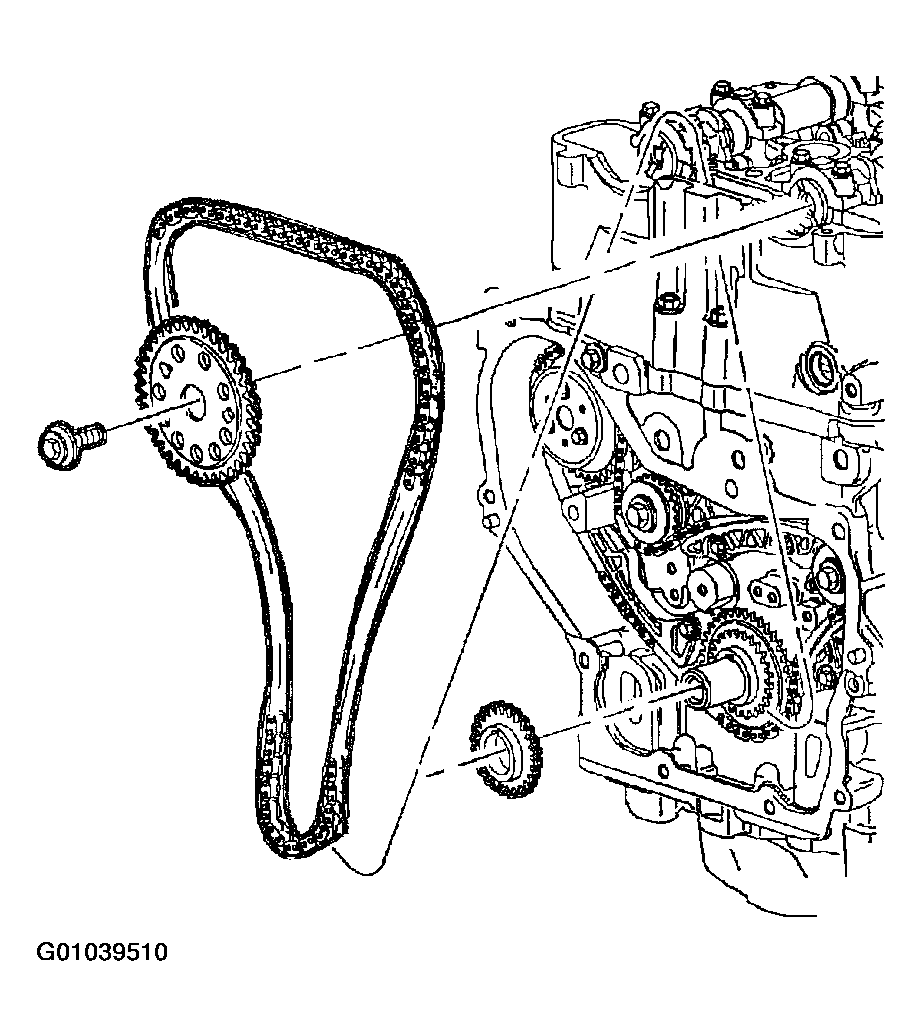

8. Remove intake cam sprocket bolt, the intake cam sprocket and the timing chain through the top of the cylinder head. Discard bolt.
   Fig 6: Removing Intake Cam Sprocket Bolt, The Intake Cam Sprocket And The Timing Chain

   Courtesy of GENERAL MOTORS CORP.

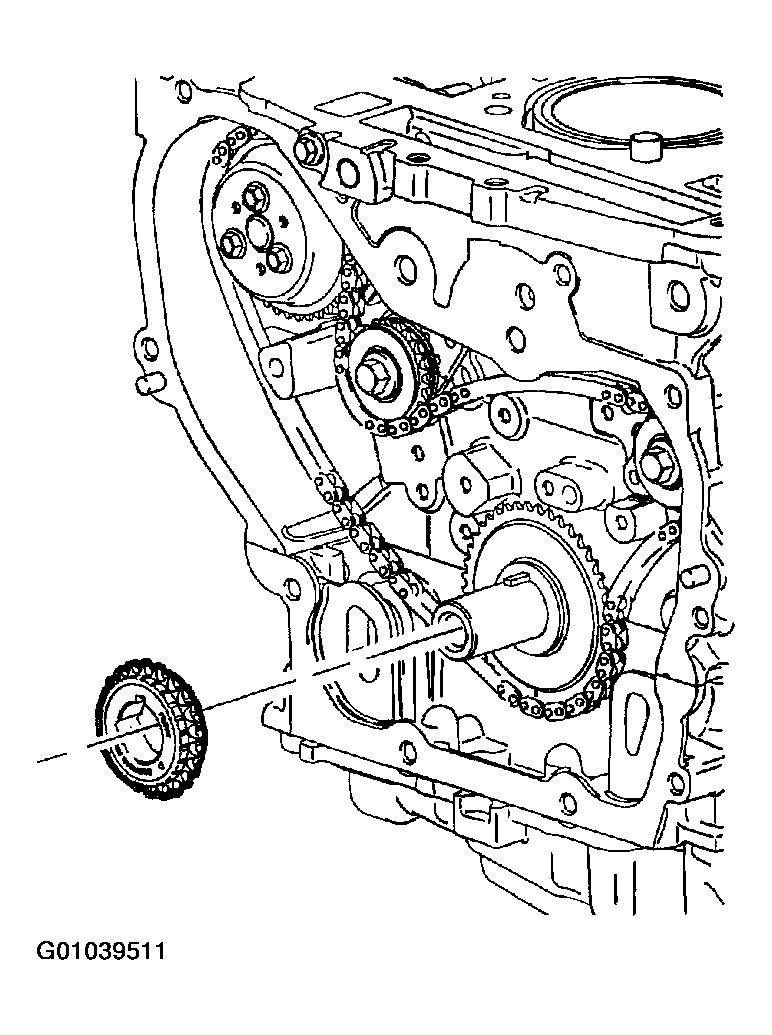

9. Remove crankshaft sprocket.
   Fig 7: Removing Crankshaft Sprocket

   Courtesy of GENERAL MOTORS CORP.

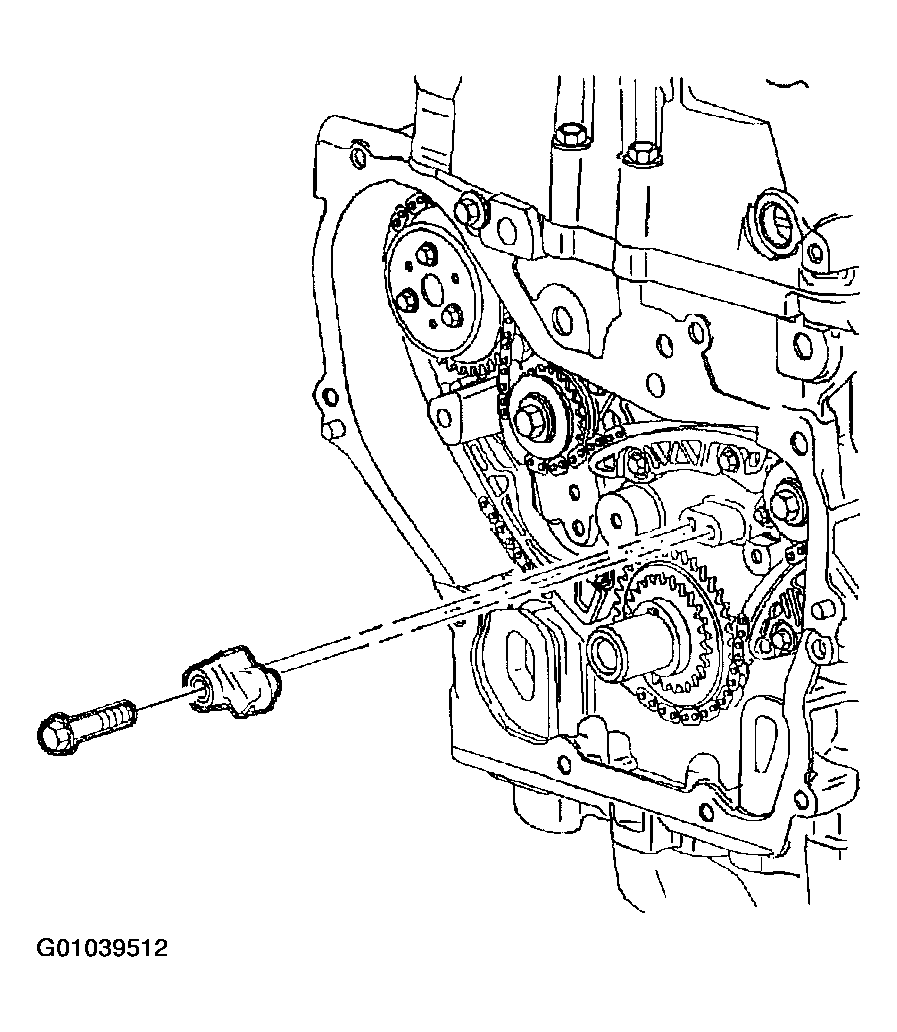

10. Remove oil nozzle and bolt.
    Fig 8: Removing Oil Nozzle And Bolt

    Courtesy of GENERAL MOTORS CORP.
