Oil Level Indicator And Tube (Unit Repair) Removal: Removal

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove electrical connector from oil level indicator tube.
  2. Remove tube bracket to intake manifold bolt.
  3. Remove tube from engine block.

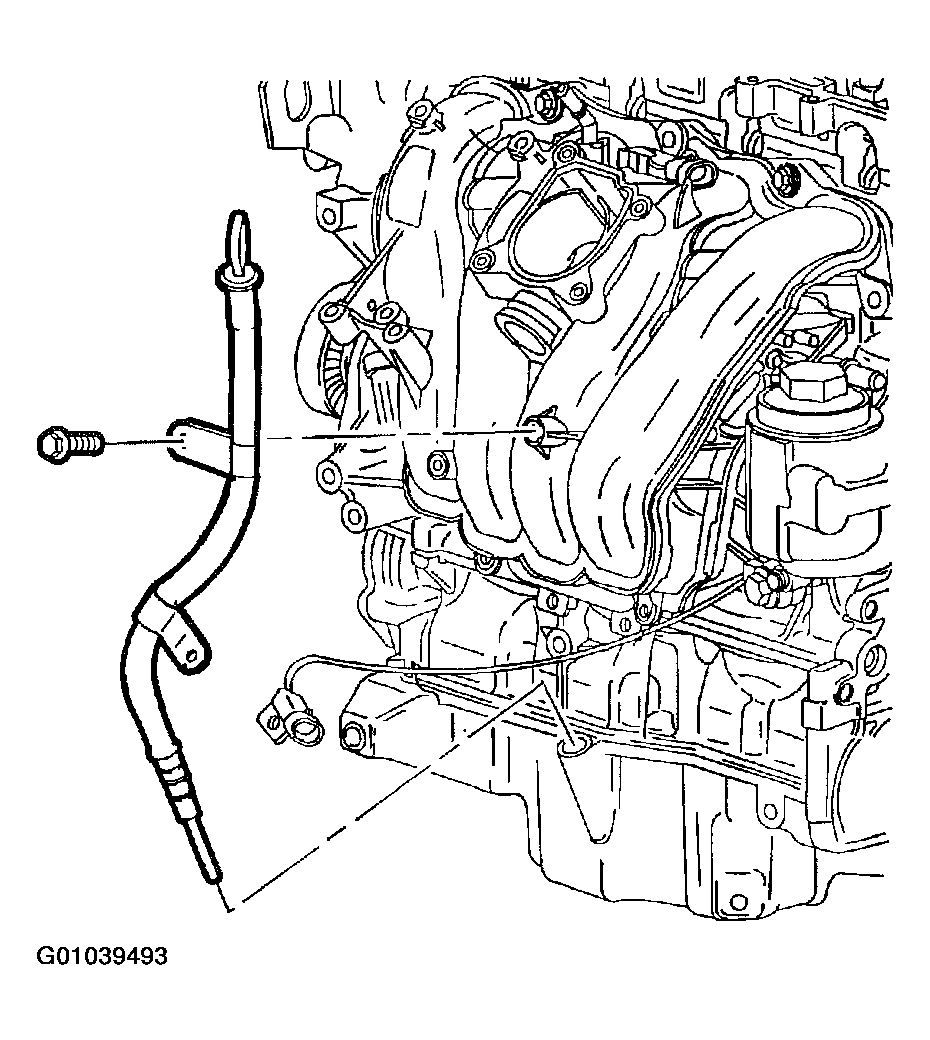

    Fig 1: Removing Tube Bracket To Intake Manifold Bolt
    G01039493Courtesy of GENERAL MOTORS CORP.
