Exhaust Manifold (Unit Repair) Removal: Removal

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove exhaust manifold heat shield.
  2. Remove heated oxygen sensor.
  3. Remove exhaust manifold to the cylinder head retaining nuts.
  4. Remove exhaust manifold.
  5. Clean all sealing surfaces.
  6. If exhaust manifold is being replaced, transfer the following parts:
    • Exhaust manifold heat shield
    • Heated oxygen sensor
  7. Replace exhaust manifold nuts.

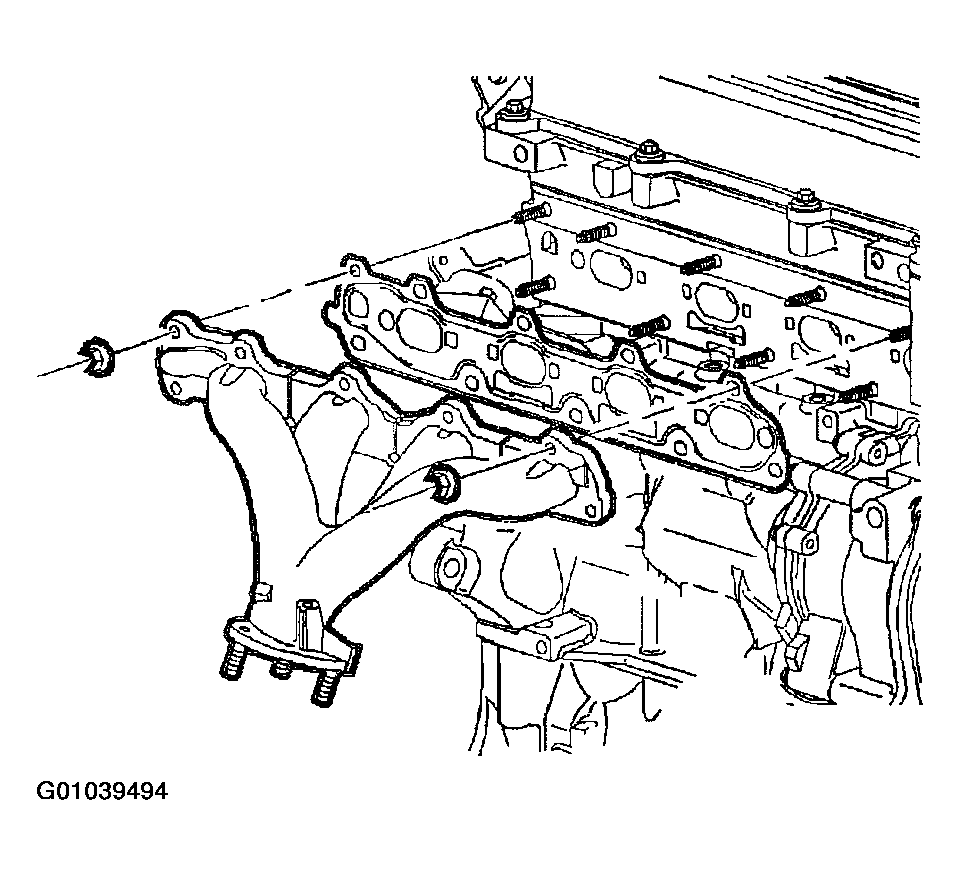

    Fig 1: Removing Exhaust Manifold
    G01039494Courtesy of GENERAL MOTORS CORP.
