Engine Flywheel (Unit Repair) Removal: Removal

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:  It is not necessary to orientate the flywheel to the crankshaft. It is balanced separately from the engine.

  1. Remove flywheel attaching bolts. Use Flywheel Holding Tool J43653 to prevent crankshaft rotation.
  2. Remove flywheel, if vehicle is equipped with a manual transaxle.

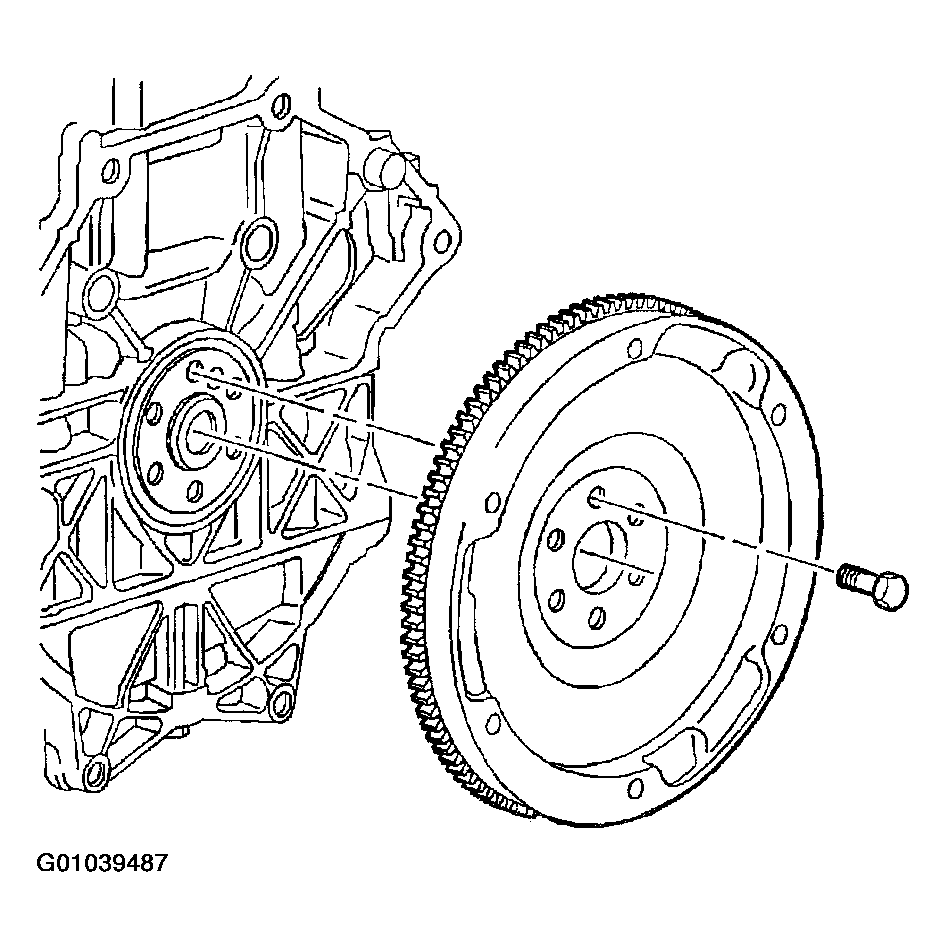

    Fig 1: Removing Flywheel Attaching Bolts
    G01039487Courtesy of GENERAL MOTORS CORP.
  3. Remove flywheel retainer and flywheel for vehicles equipped with automatic transaxle.
  4. Clean thread adhesive from flywheel bolts. Use a-nylon bristle brush to clean bolt holes in crankshaft.

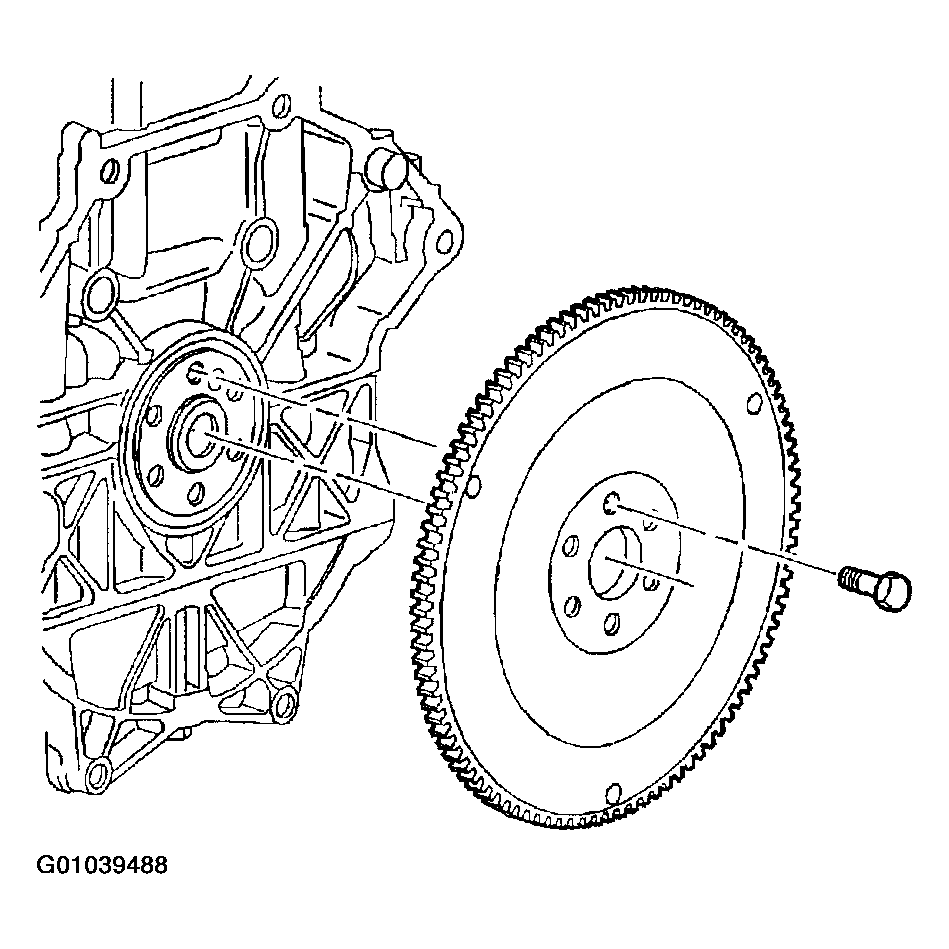

    Fig 2: Removing Flywheel Retainer And Flywheel
    G01039488Courtesy of GENERAL MOTORS CORP.
