Engine Disassembly - Preparation For Disassembly

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Remove flywheel/flexplate.

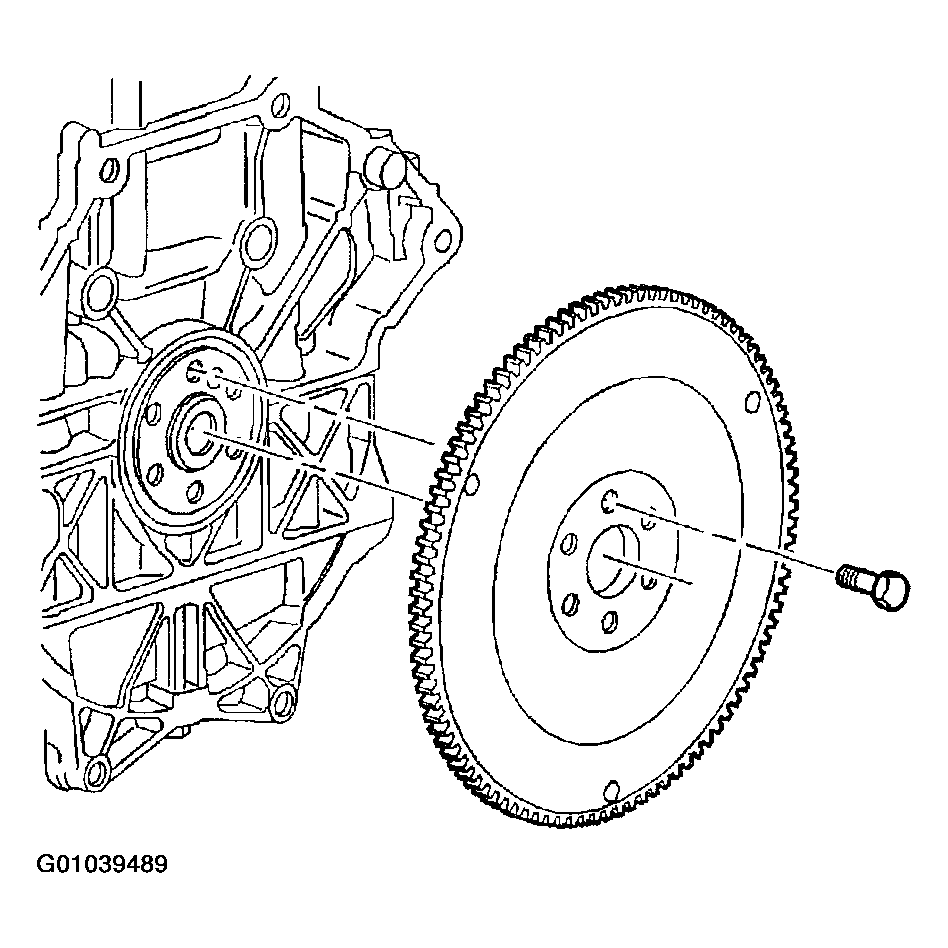

Fig 1: Removing Flywheel/Flexplate
Courtesy of GENERAL MOTORS CORP.
Mount engine on a stand.
Remove all accessories and components:
1. 3.1 Engine wire harness
2. 3.2 Starter
3. 3.3 Generator
4. 3.4 Oil pressure sending unit

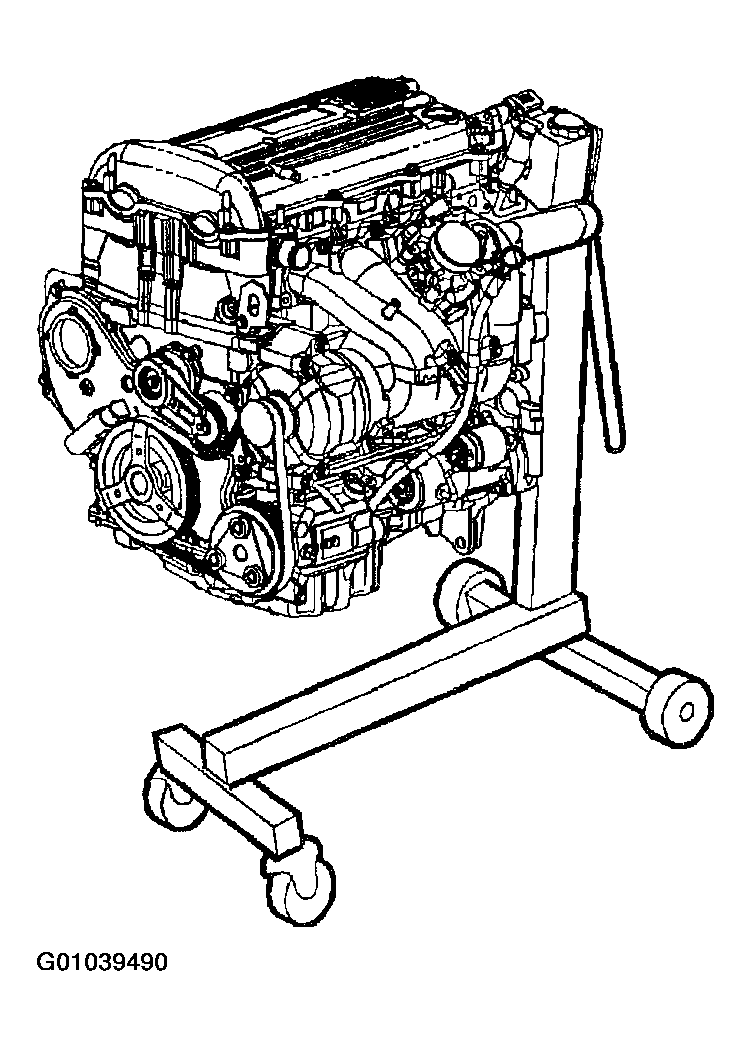

  Fig 2: Mounting Engine On A Stand
  Courtesy of GENERAL MOTORS CORP.
5. 3.5 Knock sensor
6. 3.6 Crankshaft position sensor

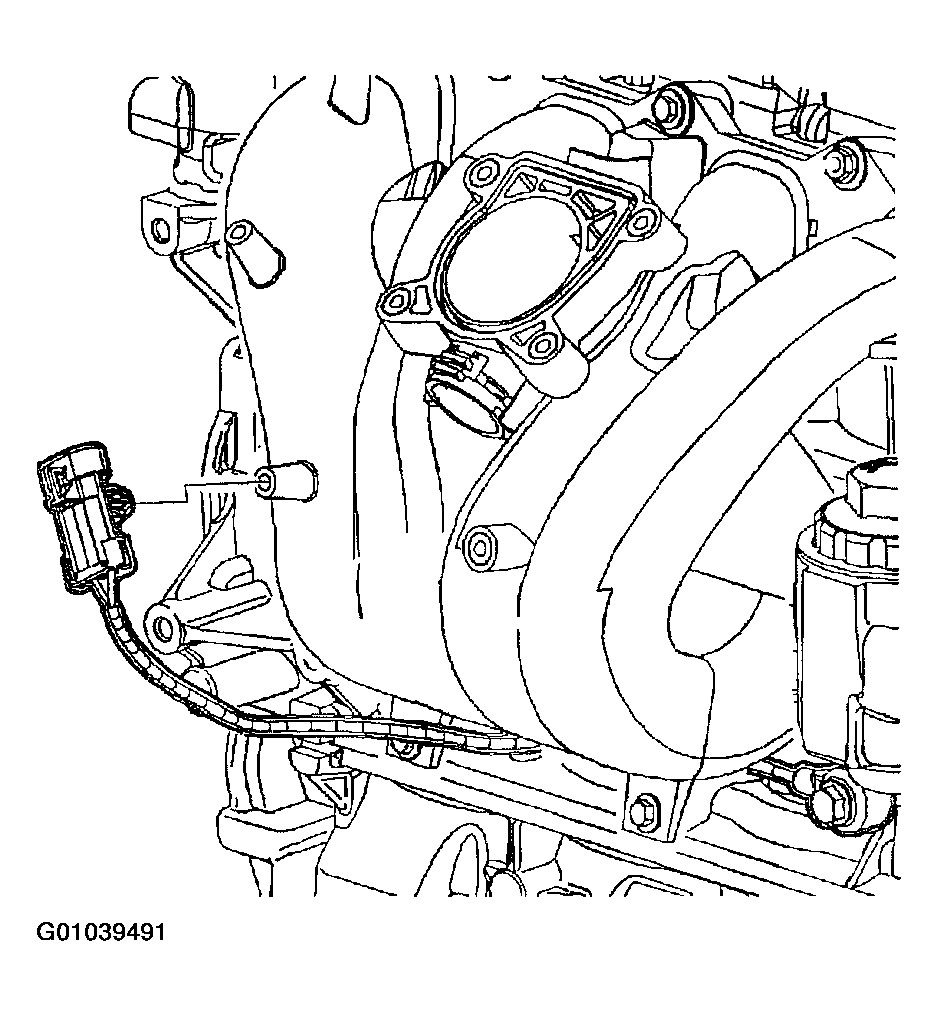

  Fig 3: Disconnecting Knock sensor
  Courtesy of GENERAL MOTORS CORP.
