Tools Required

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a seal removal tool, remove oil seal from front cover.
    1. 1.1 Clean seal bore and oil drain back passage way.
    2. 1.2 Ensure that the oil drain back passage is free of RTV or debris.

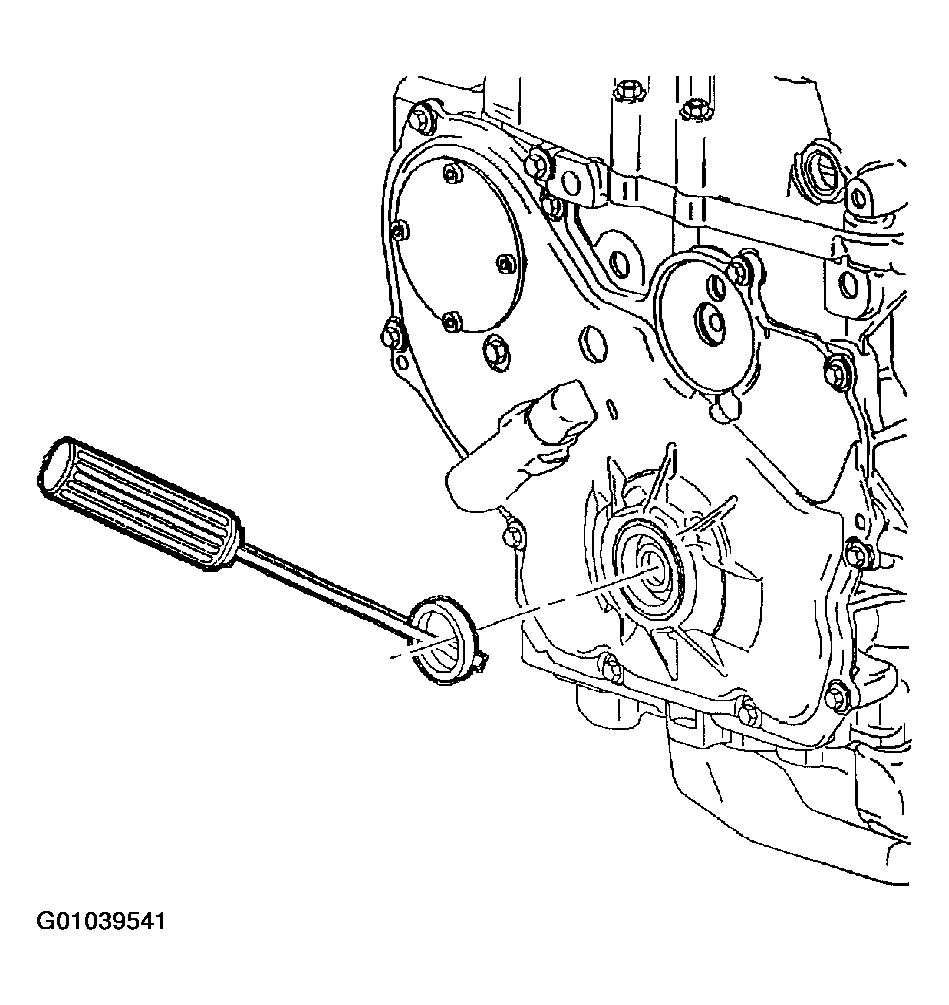

      Fig 1: Removing Oil Seal From Front Cover
      G01039541Courtesy of GENERAL MOTORS CORP.
  2. Install oil seal.
    1. 2.1 Install new oil seal using Camshaft/Front Main Seal Installer J35268A.

      IMPORTANT:  Always ensure that the oil pump cover is properly supported when installing seal.

    2. 2.2 Ensure that front main oil seal is fully and evenly sealed.
    3. 2.3 Apply thin film of oil to seal lip.

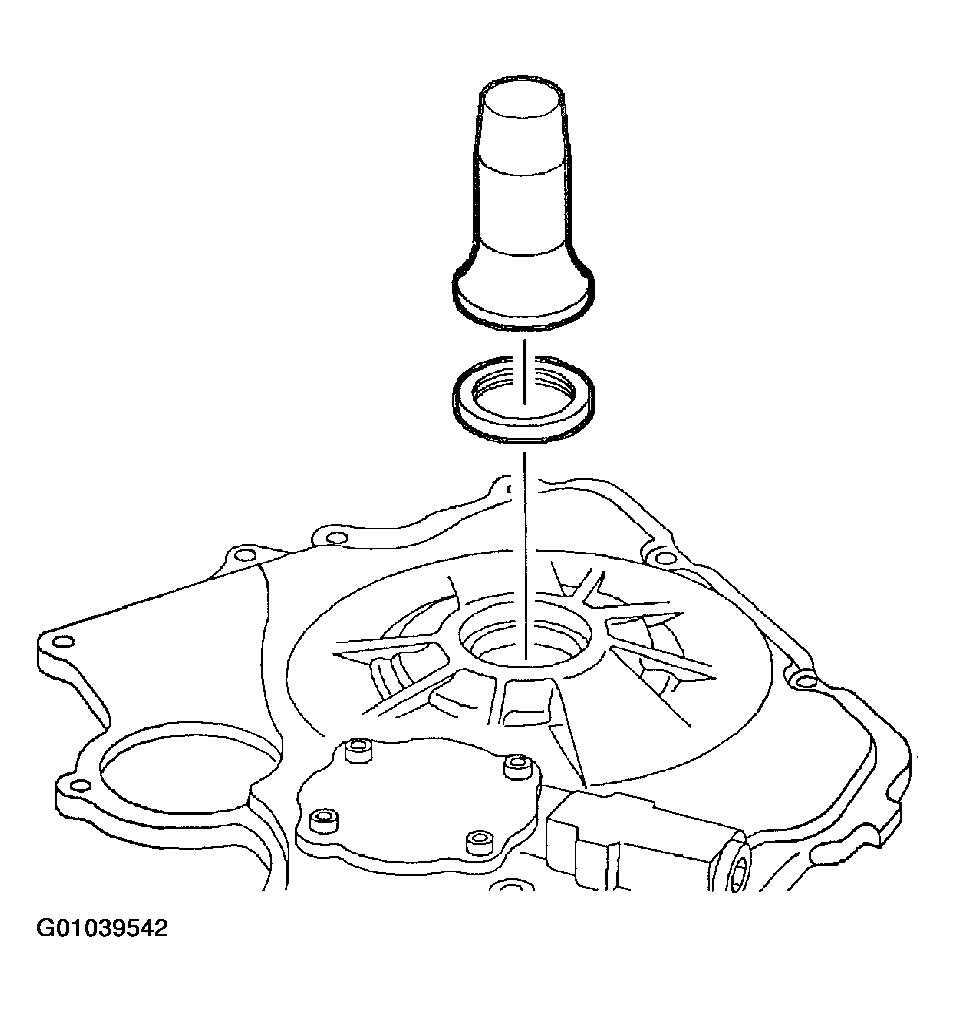

      Fig 2: Installing Oil Seal
      G01039542Courtesy of GENERAL MOTORS CORP.
