Crankshaft Damper (Unit Repair) Removal: Removal

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install Crankshaft Pulley Holder J38122A onto damper assembly
  2. Remove and discard damper retaining bolt and washer. Use J38122A and breaker bar in order to prevent crankshaft from rotating when loosening bolt.

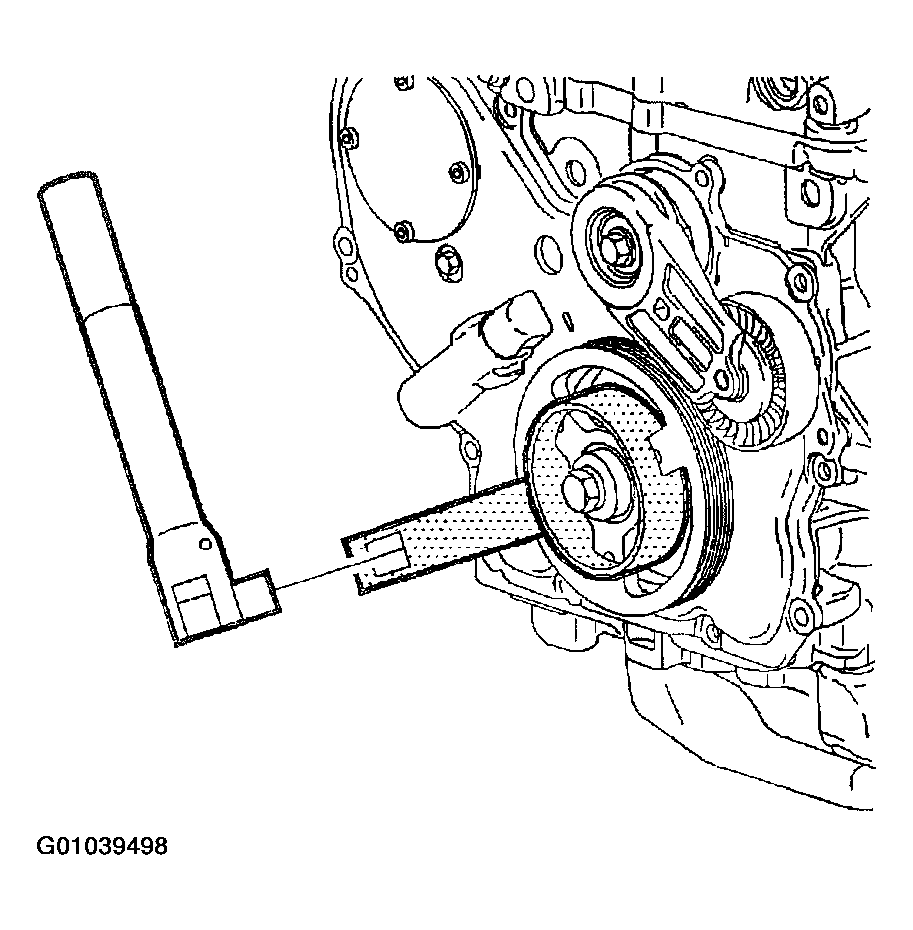

    Fig 1: Installing Crankshaft Pulley Holder J38122A Onto Damper Assembly
    G01039498Courtesy of GENERAL MOTORS CORP.
  3. Remove damper assembly.

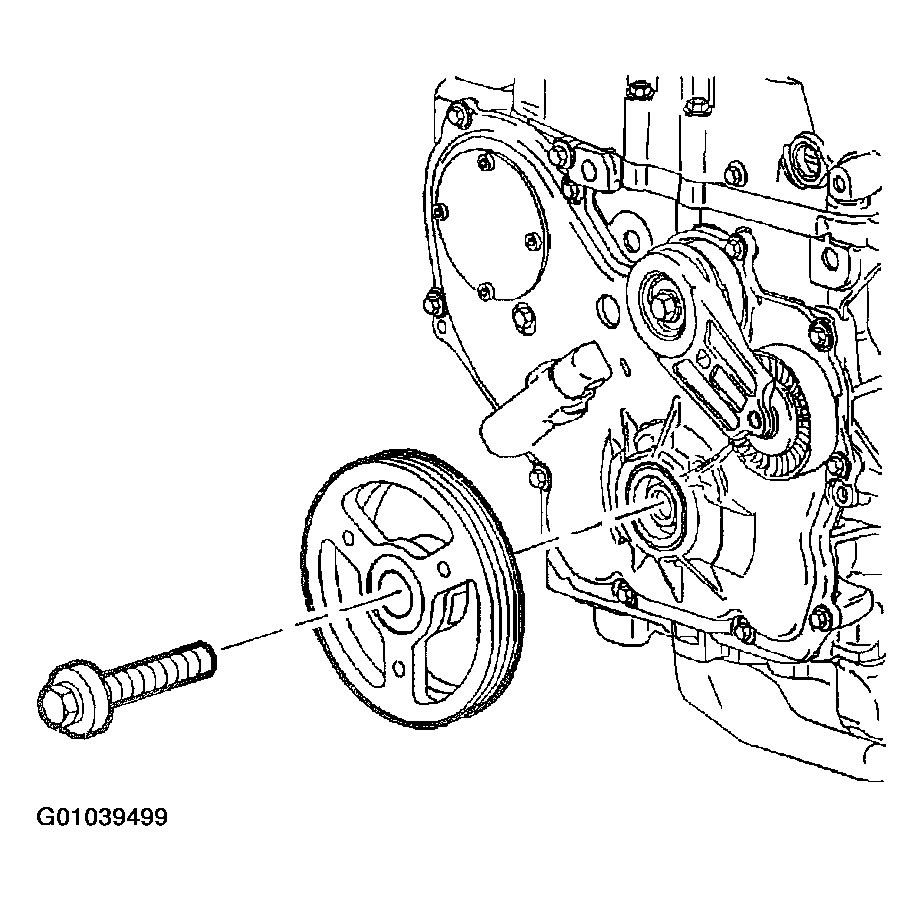

    Fig 2: Removing Damper Assembly
    G01039499Courtesy of GENERAL MOTORS CORP.
