Tools Required

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

J43654 Piston Pin Clip Installer

To identify special tool, see SPECIAL TOOLS .

CAUTION: HANDLE THE PISTON CAREFULLY. WORN PISTON RINGS ARE SHARP AND MAY CAUSE BODILY INJURY.

Disassemble piston rings. Use a suitable tool in order to expand the rings. Piston rings must not be reused.

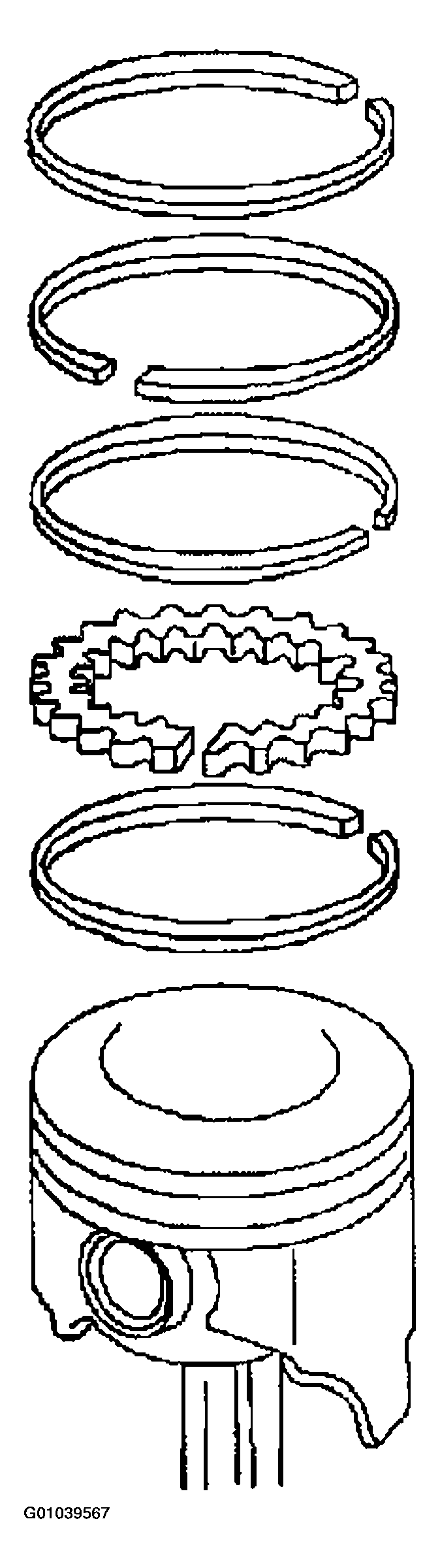

Fig 1: Disassembling Piston Rings
Courtesy of GENERAL MOTORS CORP.
Remove piston pin retaining clips using Piston Pin Clip Installer J43654.

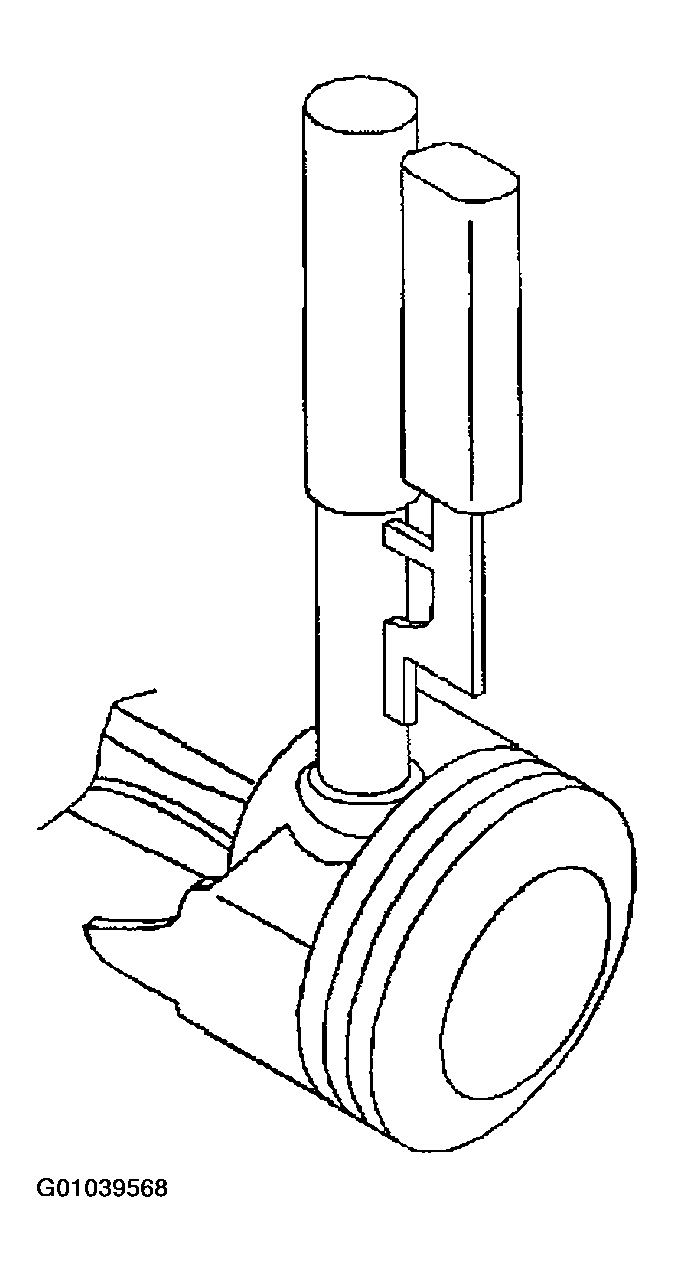

Fig 2: Removing Piston Pin Retaining Clips
Courtesy of GENERAL MOTORS CORP.
Remove piston pin.

Fig 3: Removing Piston Pin
Courtesy of GENERAL MOTORS CORP.
