Engine Block Disassemble (Unit Repair): Removal

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

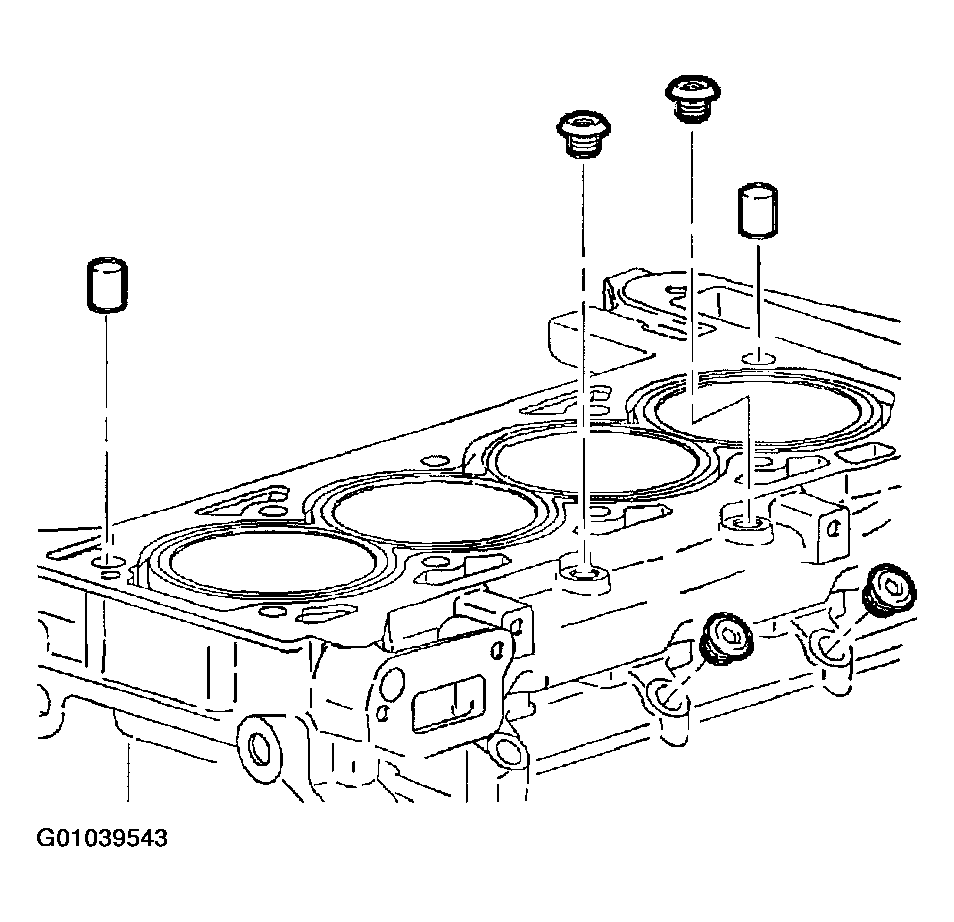

Remove water jacket drain plug.
Remove oil passage plug.
Remove rear oil passage plug.

Fig 1: Removing Rear Oil Passage Plug
Courtesy of GENERAL MOTORS CORP.

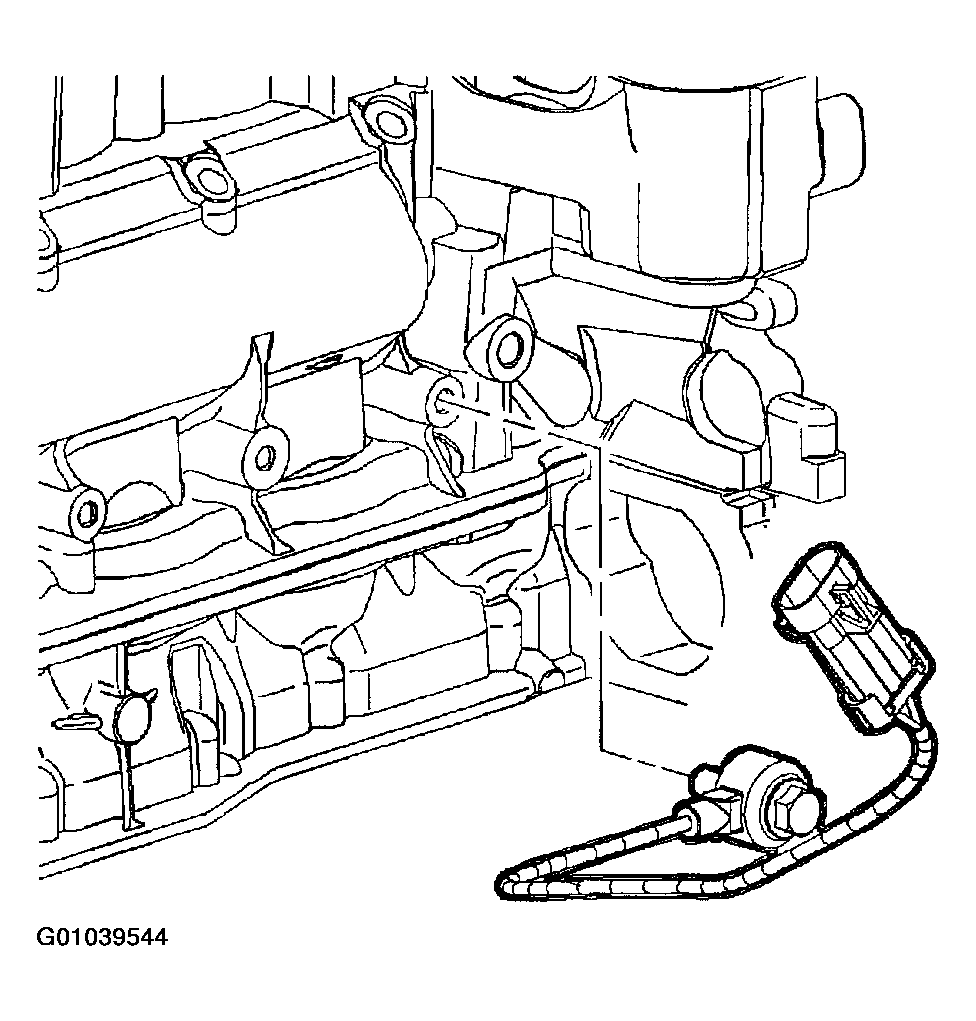

Remove knock sensor and bolt.

Fig 2: Removing Knock Sensor And Bolt
Courtesy of GENERAL MOTORS CORP.

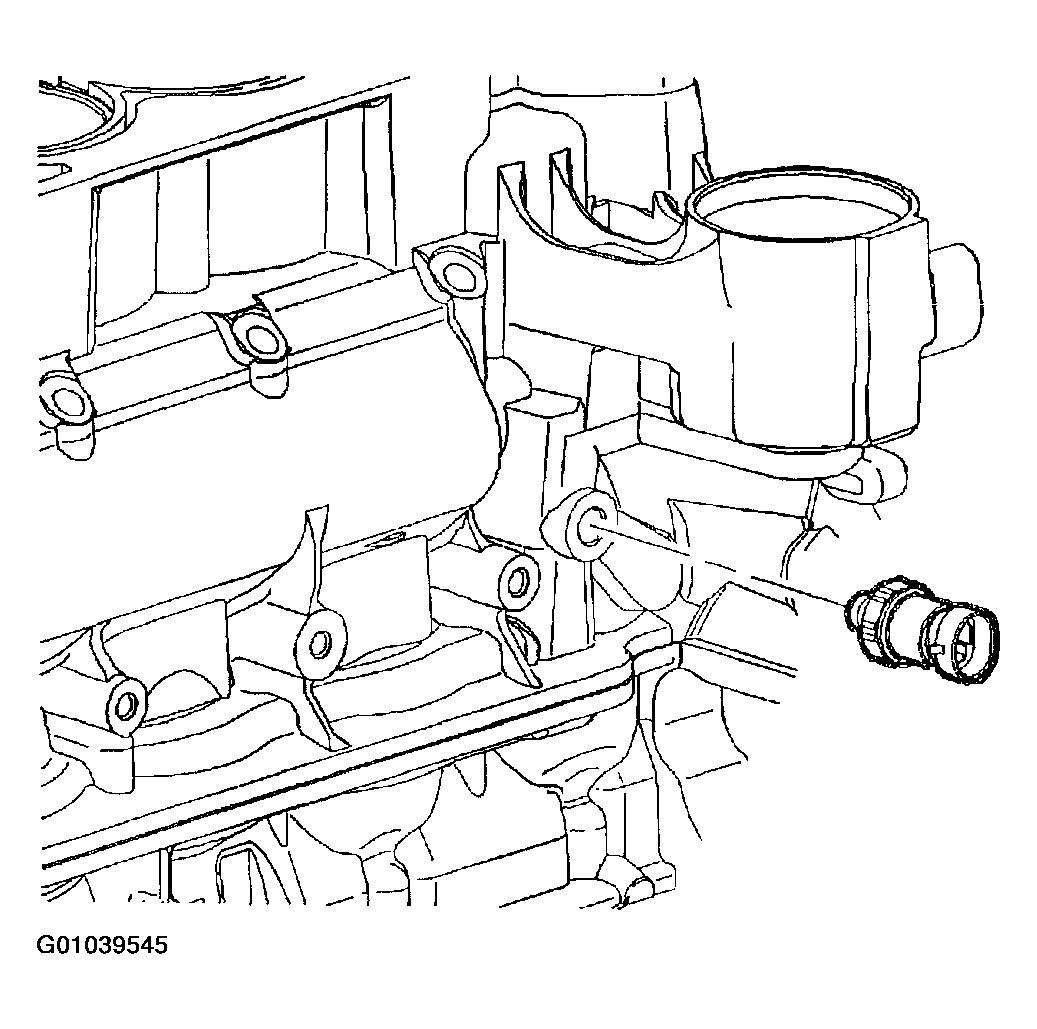

Remove oil pressure switch.

Fig 3: Removing Oil Pressure Switch
Courtesy of GENERAL MOTORS CORP.

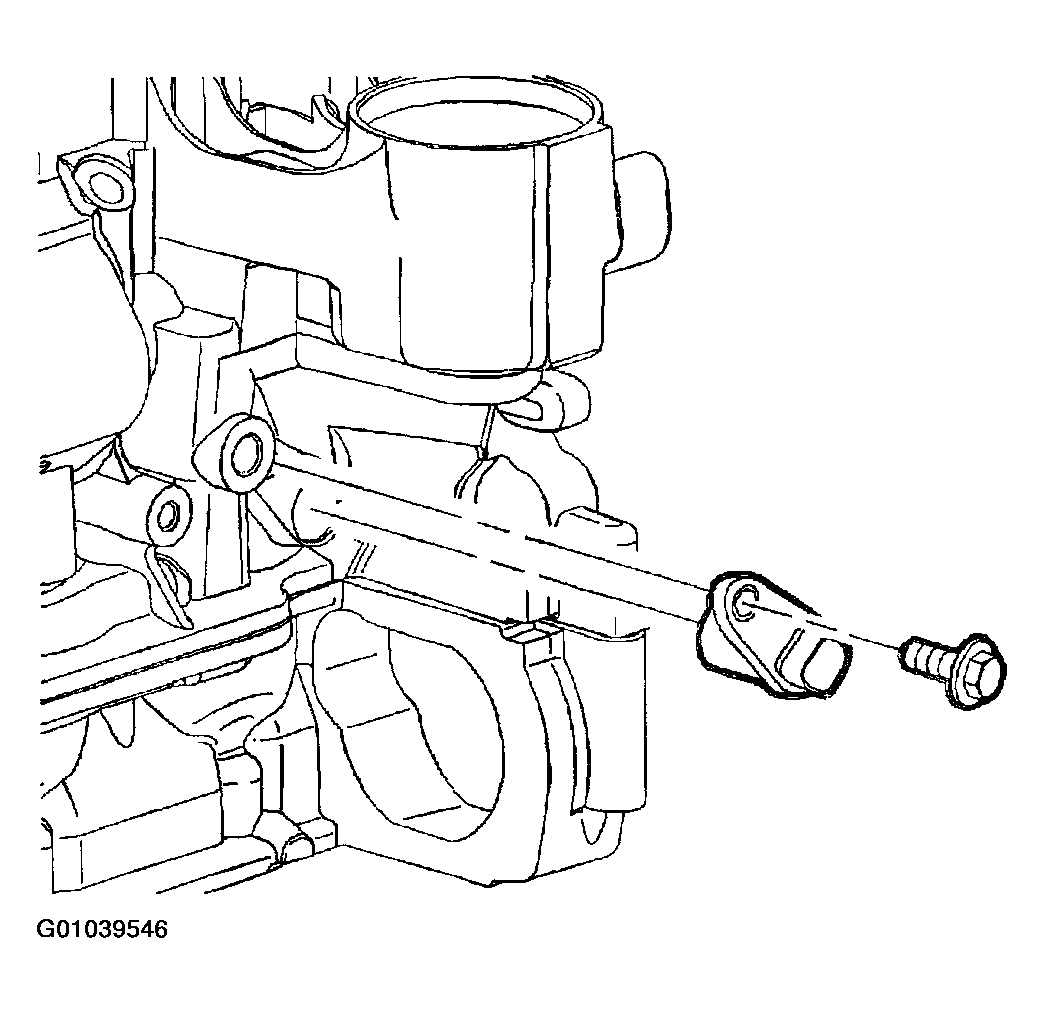

Remove camshaft position sensor and bolt.

Fig 4: Removing Camshaft Position Sensor And Bolt
Courtesy of GENERAL MOTORS CORP.
