Tools Required

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

SA9102E-A Valve Seal Remover/Installer
SA9124E Valve Spring Compressor/Remover

IMPORTANT: Ensure that the valve train components are kept together and identified in order for proper re-installation in their original position.

Compress valve spring using Valve Spring Compressor/Remover SA9124E.
Remove valve keys.
Slowly release valve spring compressor from valve spring assembly.
Remove retainer.
Remove springs.

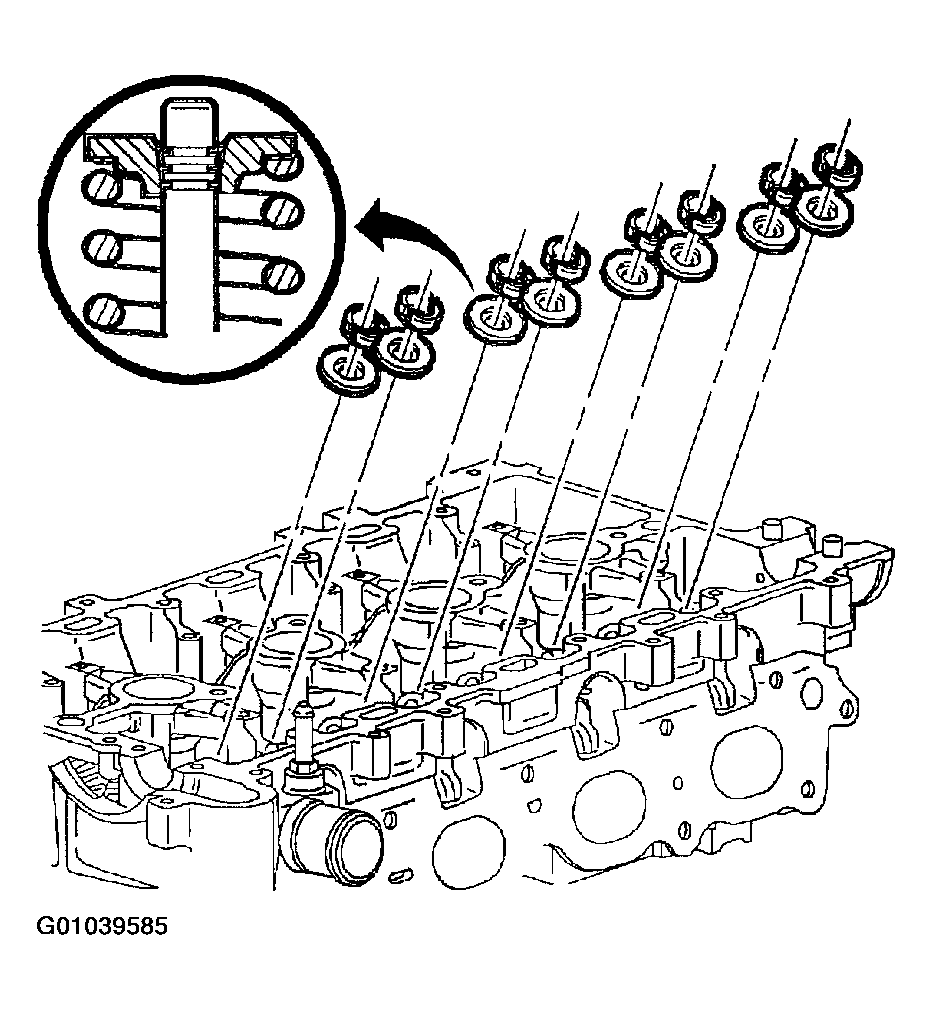

Fig 1: Removing Valve Retainers
Courtesy of GENERAL MOTORS CORP.

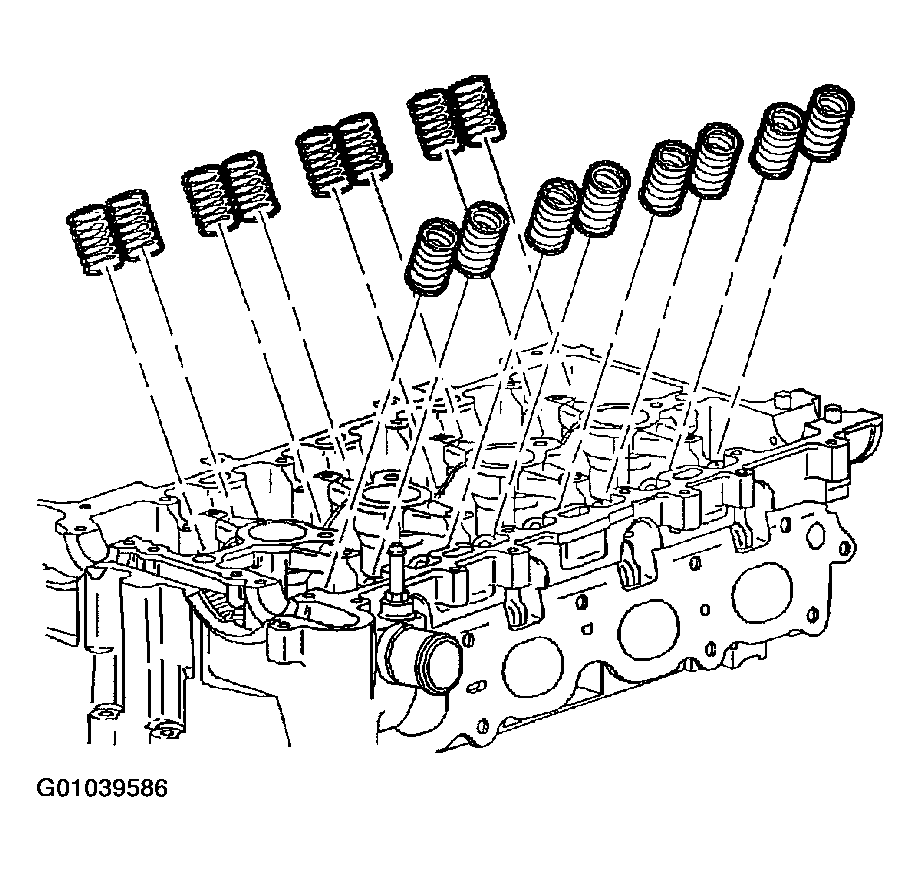

Fig 2: Removing Valve Springs
Courtesy of GENERAL MOTORS CORP.

NOTE: Do not damage the valve guide. Remove any burrs that have formed at the key groove by chamfering the valve stem with an oil stone or a file.
Remove valve seal using Valve Seal Remover/Installer SA9102E-A. Discard valve seal.
Remove valve.
Repeat for remaining valves.

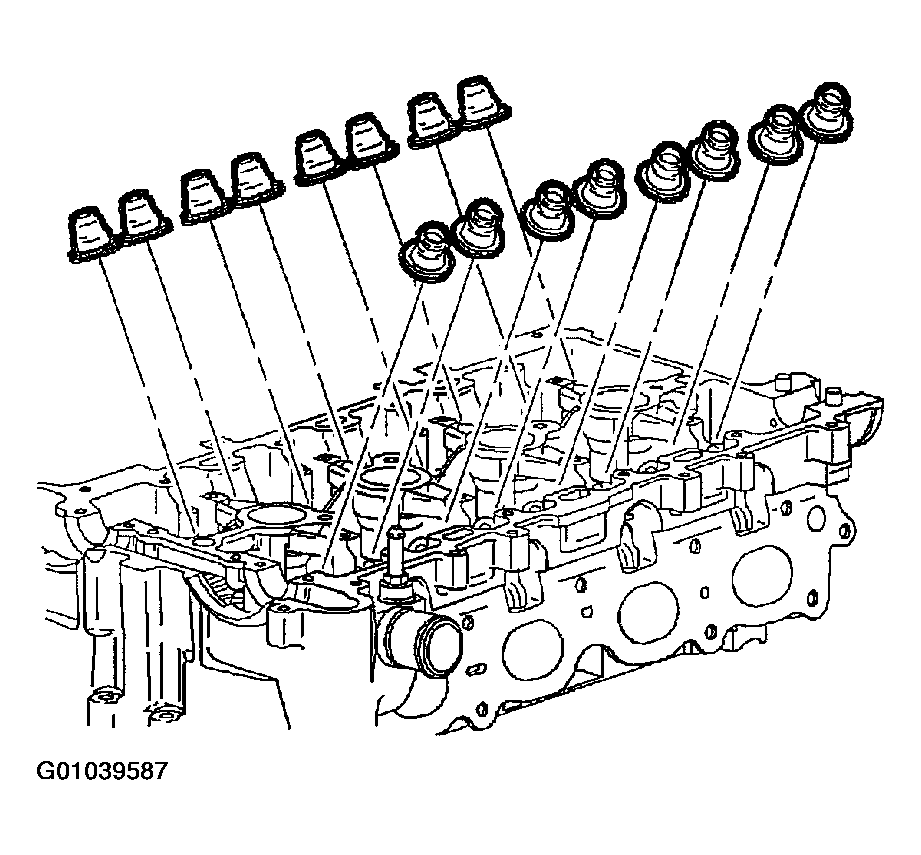

Fig 3: Removing Valve Seal
Courtesy of GENERAL MOTORS CORP.
