Intake Camshaft, Follower, And Valve Lash Adjuster (Unit Repair) Installation: Installation

1. Lubricate valve lash adjusters.
2. Install valve lash adjusters into their bores in cylinder head.

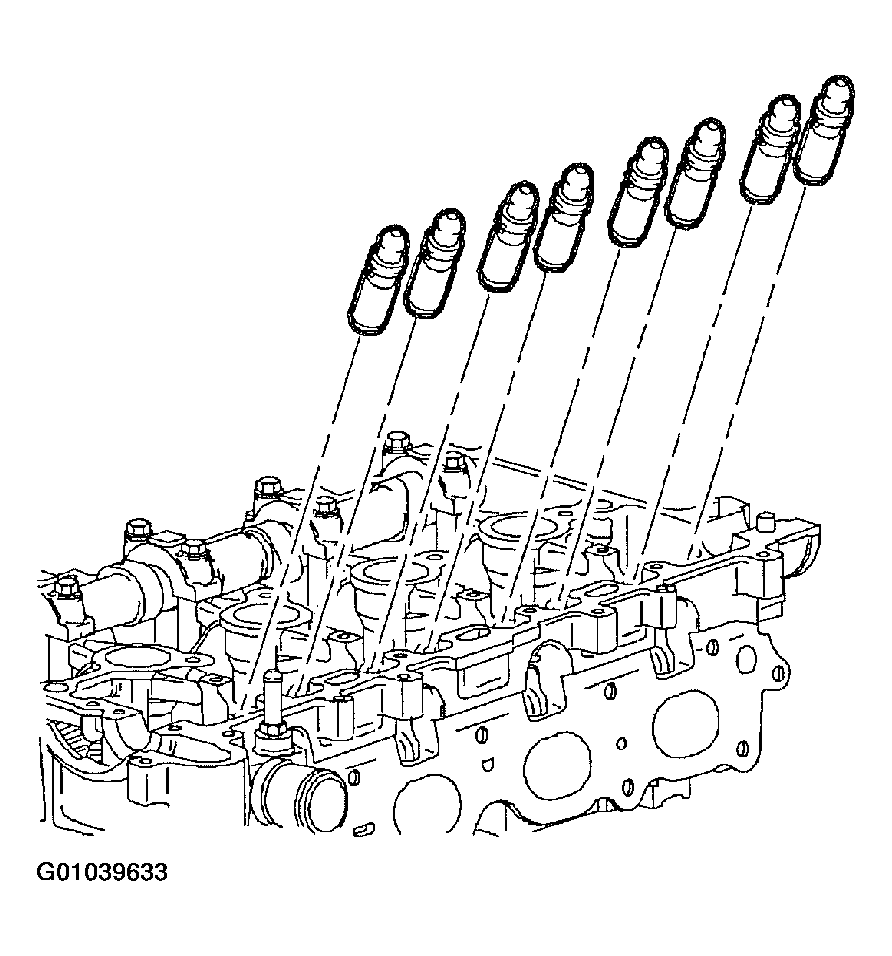

   Fig 1: Installing Valve Lash Adjusters

   Courtesy of GENERAL MOTORS CORP.
3. Lubricate valve tips with engine oil supplement.

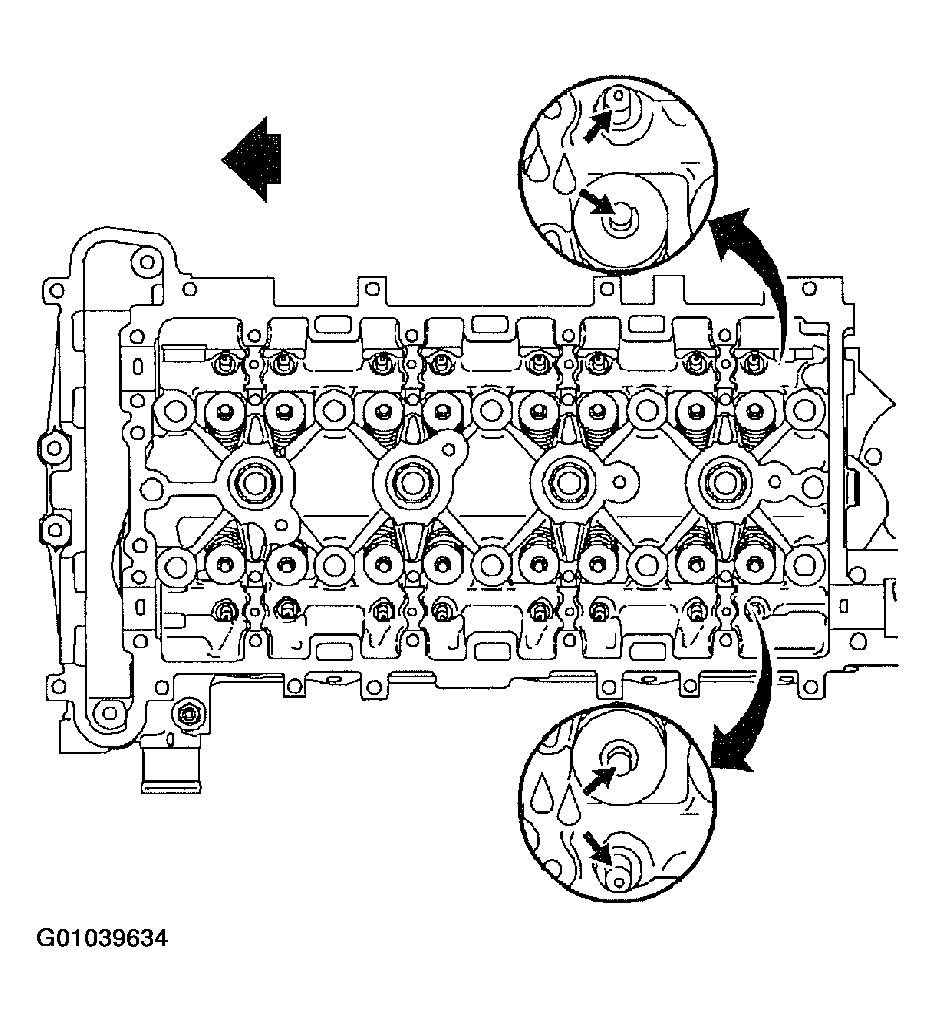

   Fig 2: Lubricating Valve Tips

   Courtesy of GENERAL MOTORS CORP.

   IMPORTANT:  Used roller followers must be returned to the original position on the camshaft. If the camshaft is being replaced, the roller followers actuated by the camshaft must also be replaced.

4. Position roller followers on tip of valve stem and on lash adjuster. Lubricate roller followers with engine oil supplement.

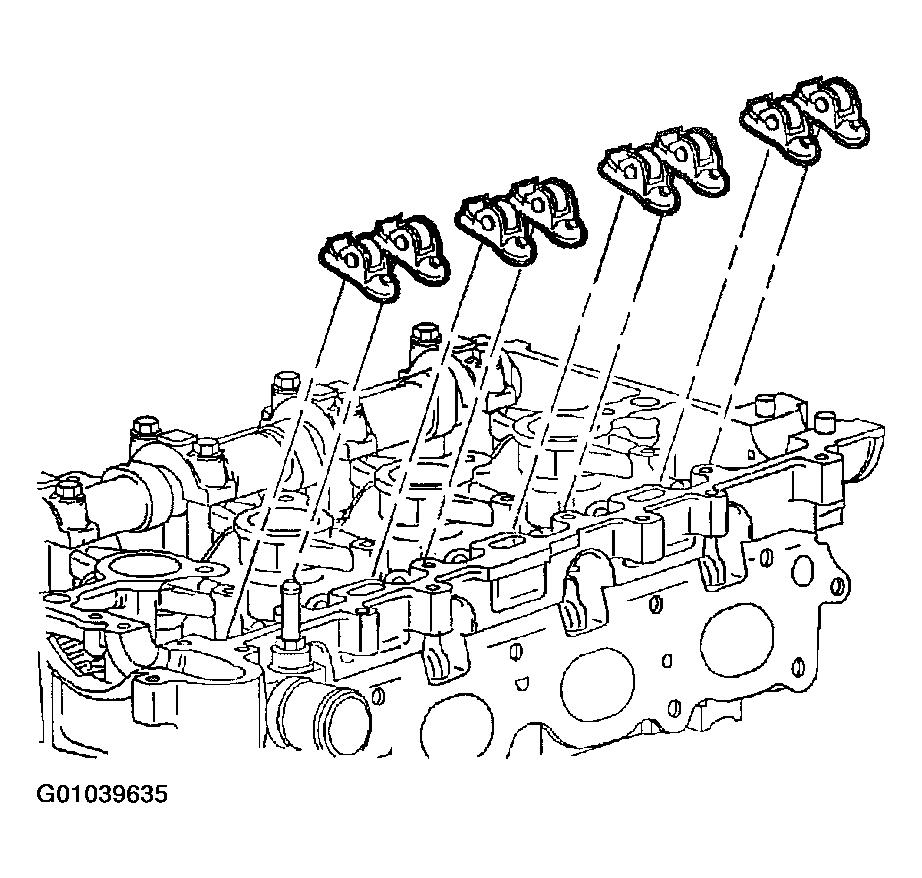

   Fig 3: Positioning Roller Followers On Tip Of Valve Stem And On Lash Adjuster

   Courtesy of GENERAL MOTORS CORP.
   NOTE: Set crankshaft at 60° Before Top-Dead Center to prevent valve to piston contact.
5. Set intake camshaft on top of roller followers in camshaft bearing journals. Lubricate with engine oil supplement.
6. Install camshaft bearing caps in correct order and hand start camshaft cap bolts.

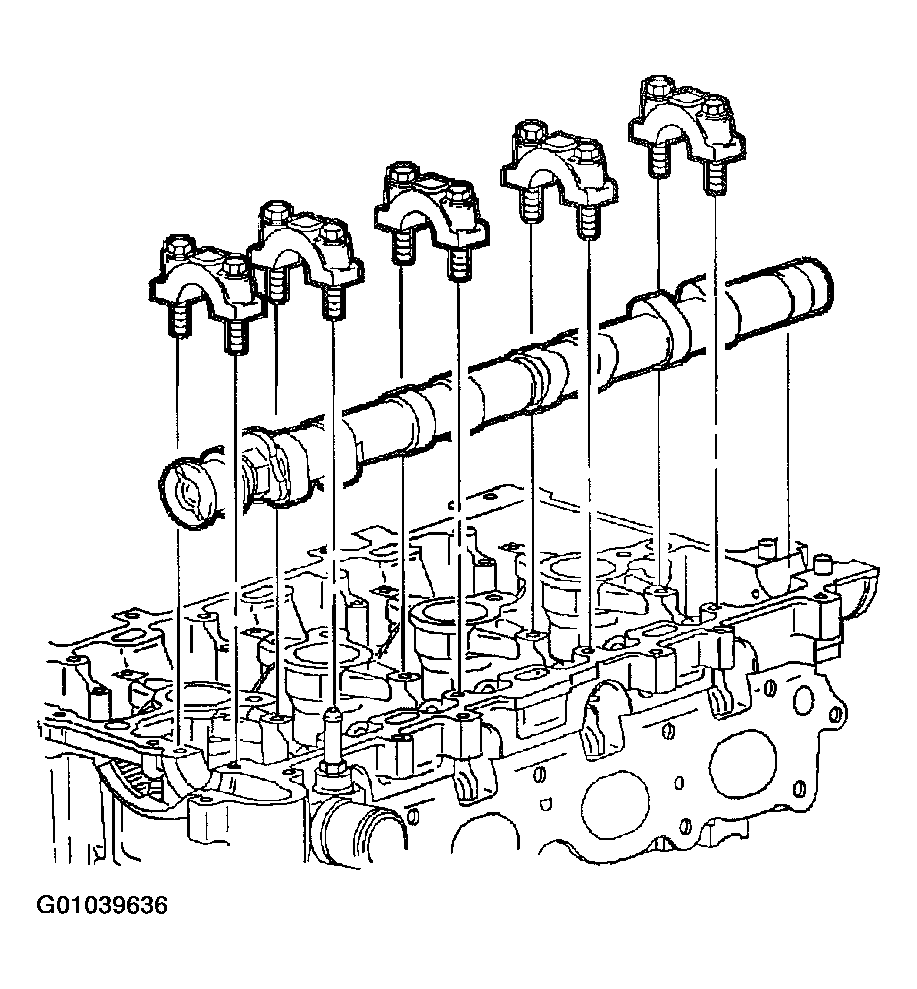

   Fig 4: Installing Camshaft Bearing Caps

   Courtesy of GENERAL MOTORS CORP.
7. The timing chain sprocket alignment notch on the camshaft should be oriented to the eleven o'clock position.
8. Tighten camshaft bearing cap bolts in increments of three turns until they are seated.

   Torque:

   Camshaft Bearing Cap Bolts: 10 N.m (89 in-lbs)

   Fig 5: Aligning Timing Chain Sprocket On The Camshaft

   Courtesy of GENERAL MOTORS CORP.
9. Apply a 5 mm (13/64 in.) bead of Permatex® Anerobic Gasket Maker 51813 to rear intake camshaft bearing cap.
10. Install rear intake camshaft bearing cap bolts.

Torque:

Intake Camshaft Rear Bearing Cap Bolts: 25 N.m (18 ft-lbs)

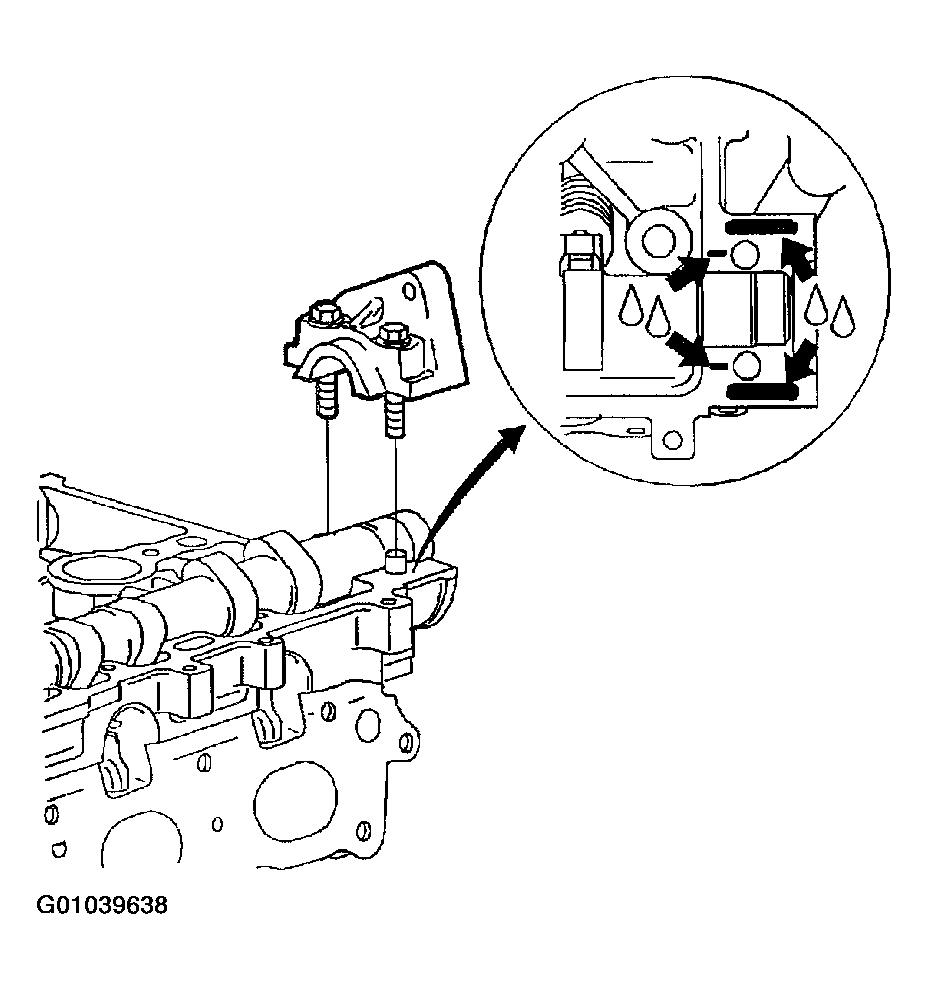

Fig 6: Installing Rear Intake Camshaft Bearing Cap Bolts

Courtesy of GENERAL MOTORS CORP.
