Crankshaft Front Cover Oil Seal (Unit Repair): Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:  Ensure that engine front cover is properly supported when installing seal.

Install front cover crankshaft seal into front cover using Saturn Seal Driver SA9107T.

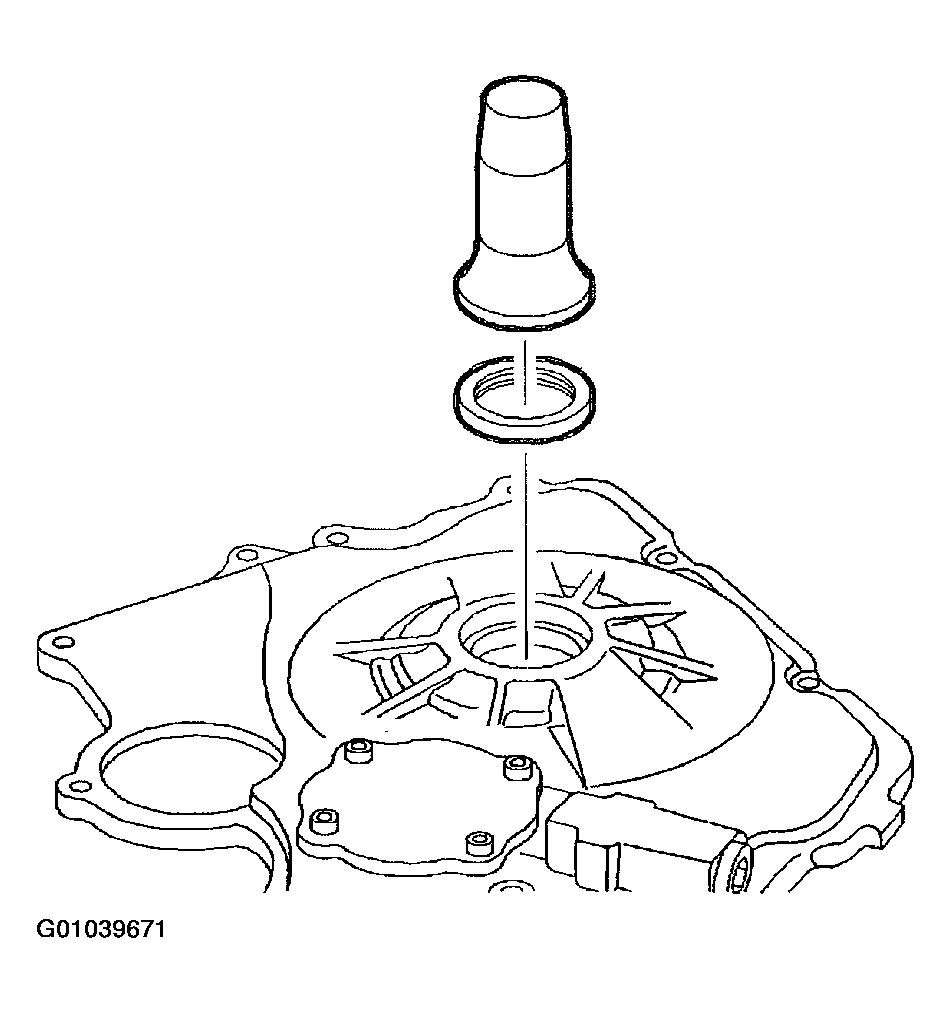

Fig 1: Installing Front Cover Crankshaft Seal
G01039671Courtesy of GENERAL MOTORS CORP.
