Crankshaft And Bearings (Unit Repair): Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: If crankshaft bearing failure is due to other than normal wear, investigate the cause. Inspect the crankshaft or connecting rod bearing bores.

Inspect the connecting rod bearing bores or crankshaft main bearing bores using the following procedure:

Tighten bearing cap to specification.
Measure bearing bore for taper and out-of-round.
No taper or out-of-round should exist.

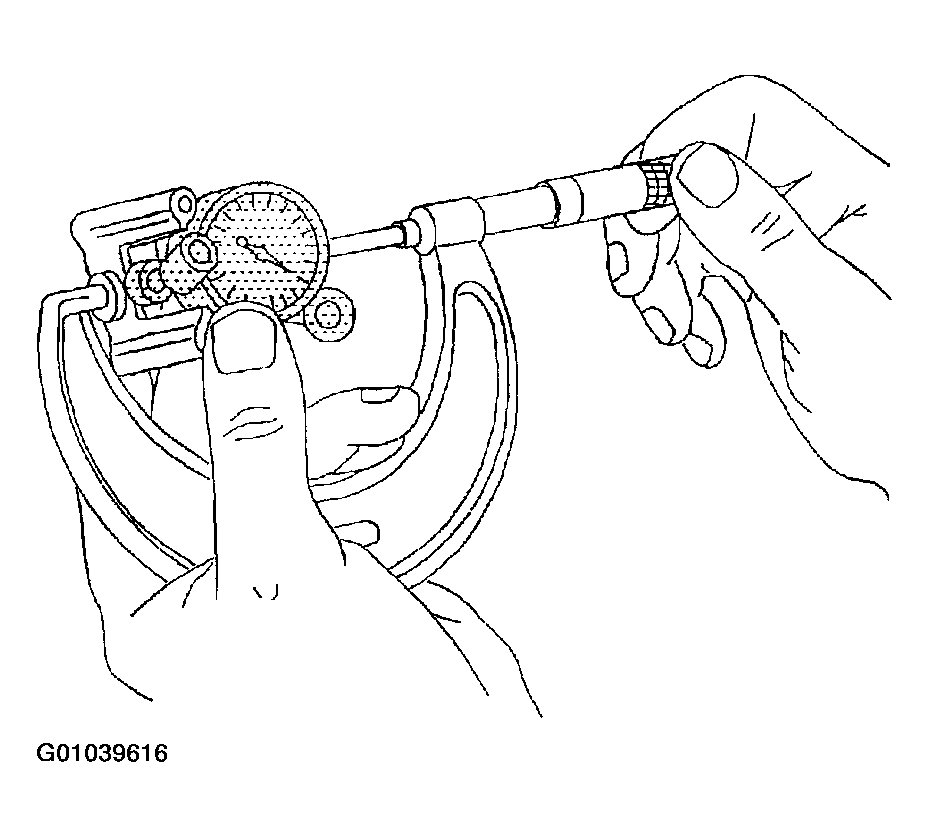

Fig 1: Measuring Bearing Bore For Taper And Out-Of-Round
Courtesy of GENERAL MOTORS CORP.
