Camshaft Cover (Unit Repair): Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Assemble camshaft cover and gasket, use care to make sure that gasket is located in retaining groove on camshaft cover.
Install cover on cylinder head and hand tighten bolts.

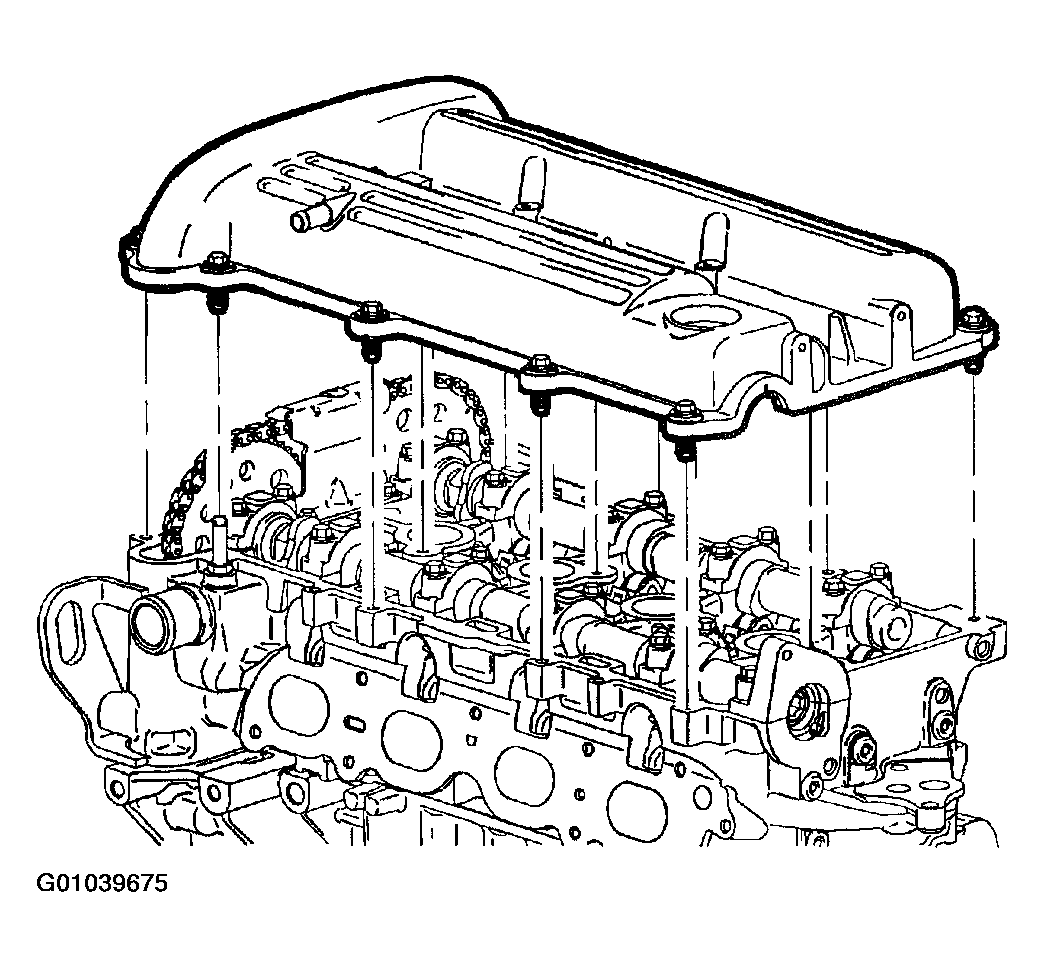

Fig 1: Installing Cover On Cylinder Head
Courtesy of GENERAL MOTORS CORP.
Install ground strap.
Torque:

Camshaft Cover Bolts: 10 N.m (89 in-lbs) Camshaft Cover Ground Strap Bolts: 10 N.m (89 in-lbs)

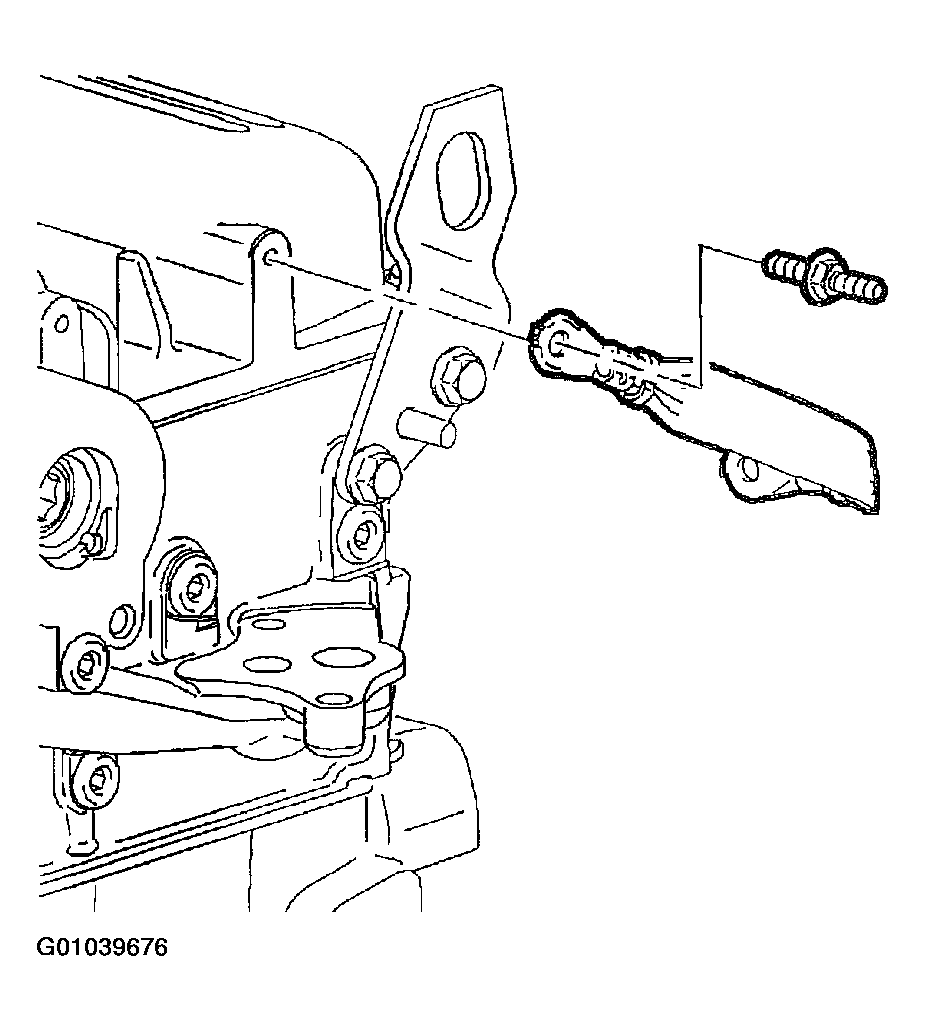

Fig 2: Installing Ground Strap
Courtesy of GENERAL MOTORS CORP.
Install spark plugs.
Torque:

Spark Plugs: 20 N.m (15 ft-lbs)

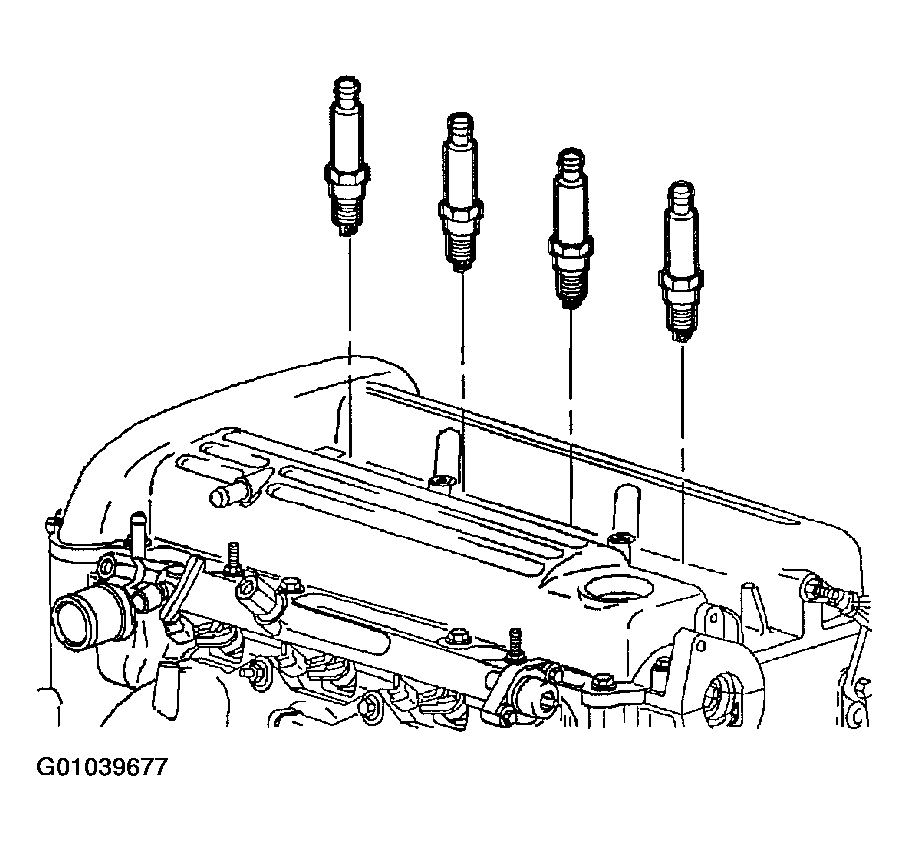

Fig 3: Installing Spark Plugs
Courtesy of GENERAL MOTORS CORP.
Install ignition coil and module assembly to cam cover.
Torque:

Ignition Coil-to-Camshaft Cover Bolts: 8 N.m (71 in-lbs)
Install power steering backing plate.

Torque:

Power Steering Backing Plate: 25 N.m (18 ft-lbs)

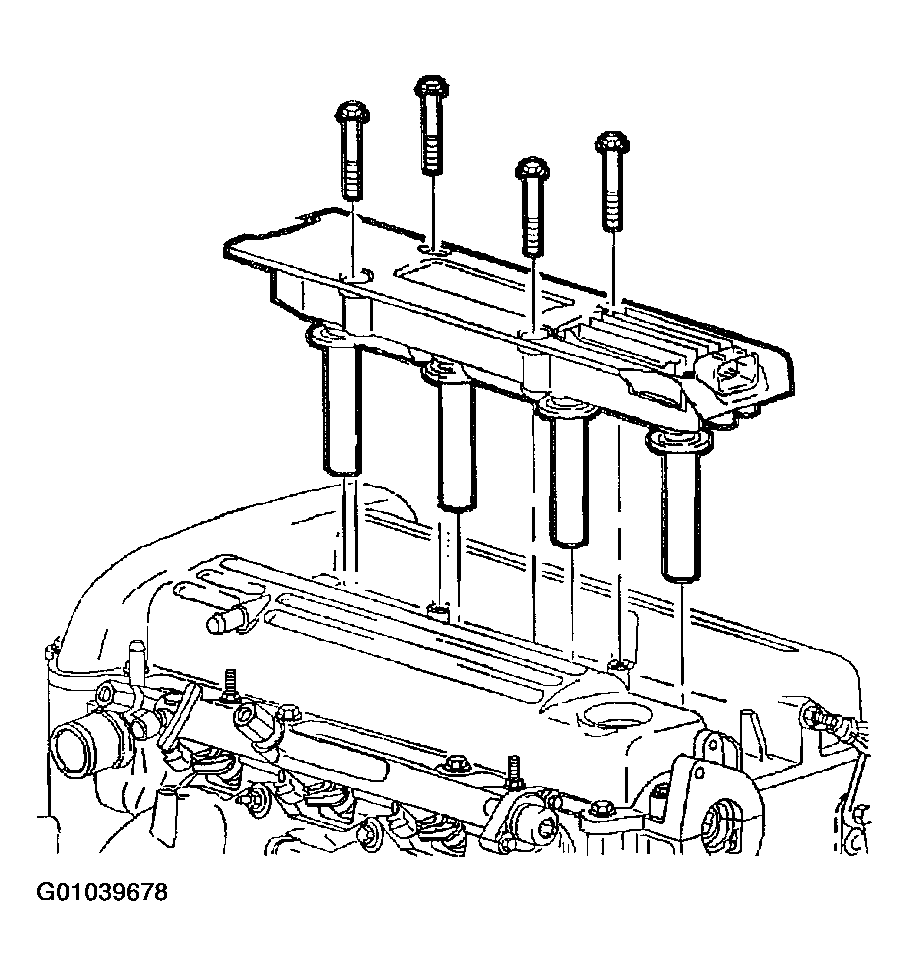

Fig 4: Installing Power Steering Backing Plate

Courtesy of GENERAL MOTORS CORP.
