Right Hand Mount: Removal

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove air cleaner assembly.

    4-Cyl Vehicles Only

  2. Install Engine Support Fixture SA9105E and Engine Support Fixture Adapter J44630.

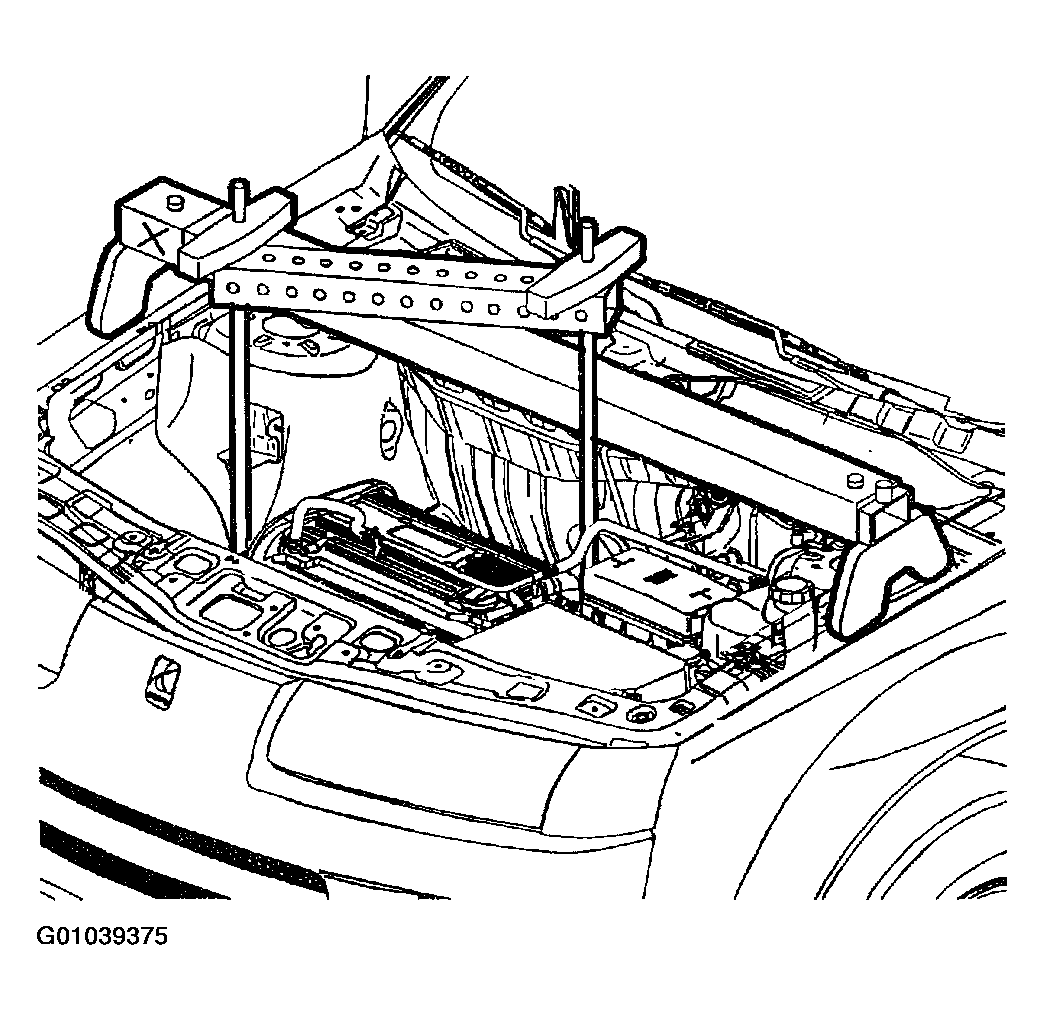

    Fig 1: Installing Engine Support Fixture SA9105E and Engine Support Fixture Adapter J44630
    G01039375Courtesy of GENERAL MOTORS CORP.
  3. Remove mount-to-mount bracket bolts.

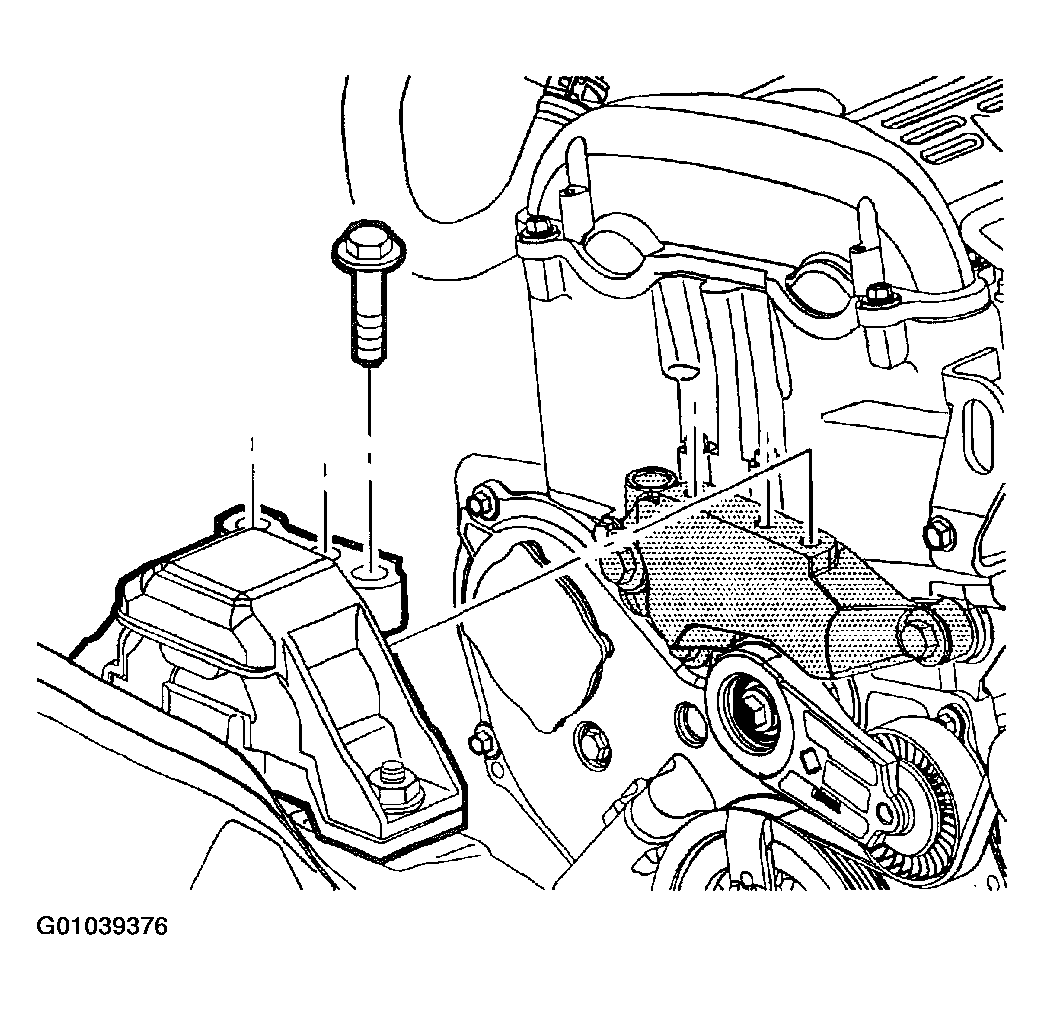

    Fig 2: Removing Mount-To-Mount Bracket Bolts
    G01039376Courtesy of GENERAL MOTORS CORP.
  4. Remove mount-to-frame rail nuts.
  5. Remove mount.

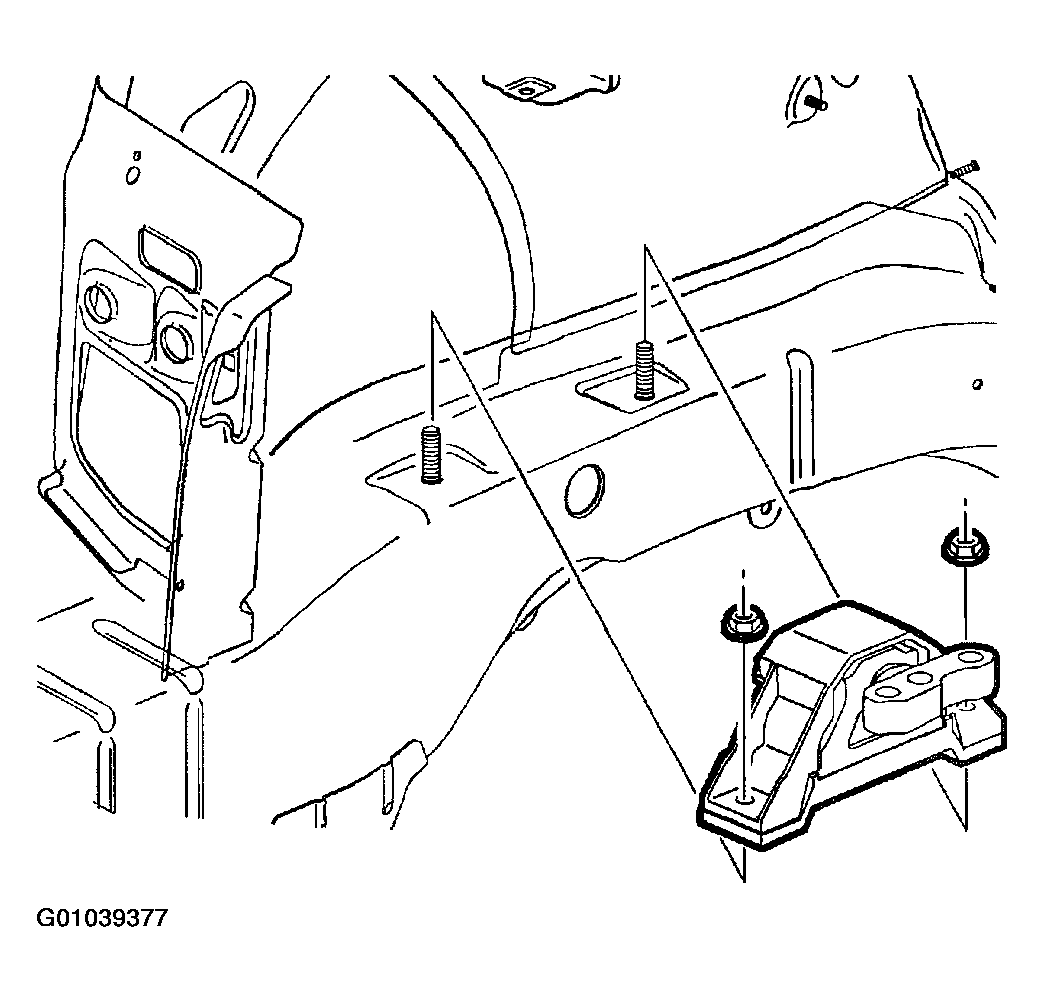

    Fig 3: Removing Mount-To-Mount Bracket Bolts
    G01039377Courtesy of GENERAL MOTORS CORP.
