Right Hand Mount: Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install mount onto frame rail studs.
  2. Install mount to frame rail nuts and tighten.

    Torque:

    Mount-to-Frame Rail Nuts: 110 N.m (81 ft-lbs)

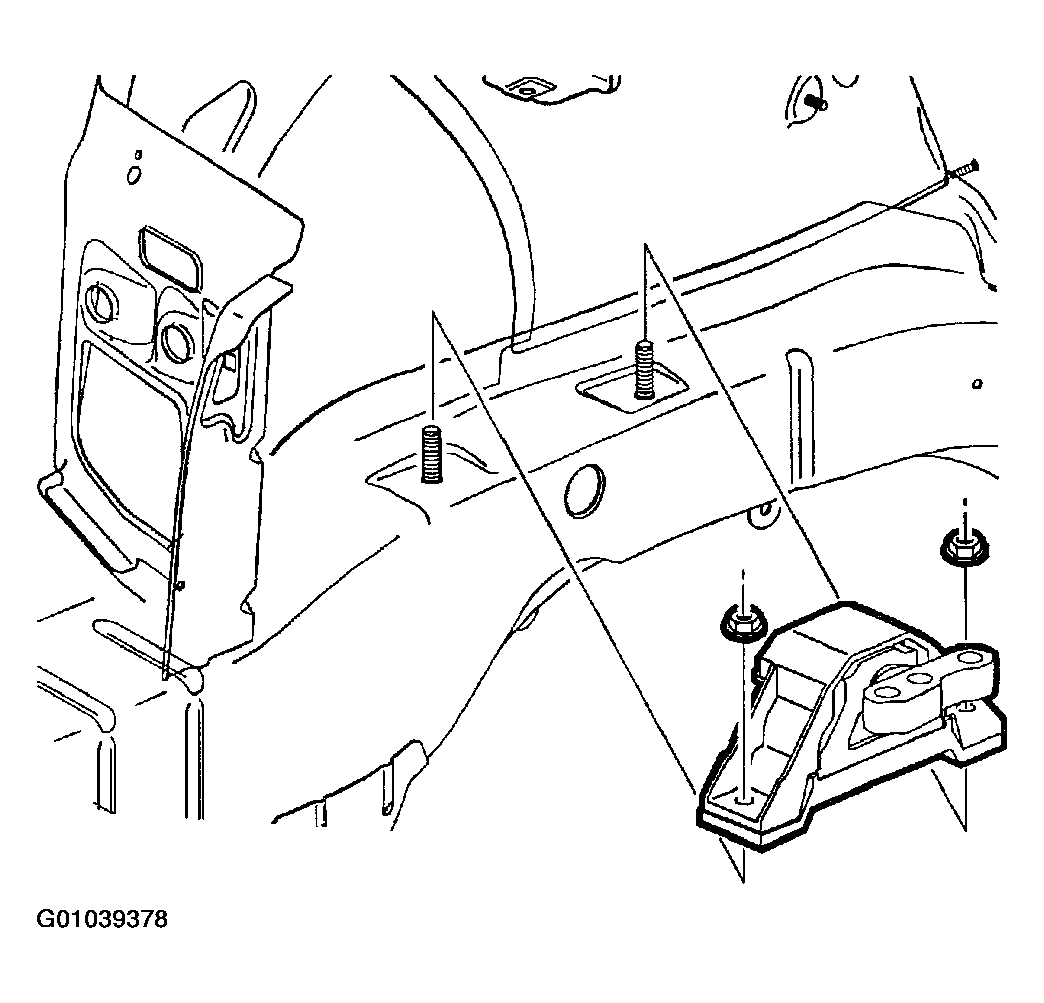

    Fig 1: Removing Mount
    G01039378Courtesy of GENERAL MOTORS CORP.
  3. Hand start all mount-to-bracket bolts. Reposition powertrain as required to allow all bolts to hand start.
  4. Beginning with center bolt position tighten mount-to-bracket bolts.

    Torque:

    Mount-to-Bracket Bolts: 50 N.m (37 ft-lbs)

  5. Remove engine support fixture SA9105E and engine support fixture adapter J41630, or floor jack.
  6. Install air cleaner assembly.
  7. Start engine and observe idle shake. Compare to pre-removal condition, if excessive perform powertrain balance procedure.

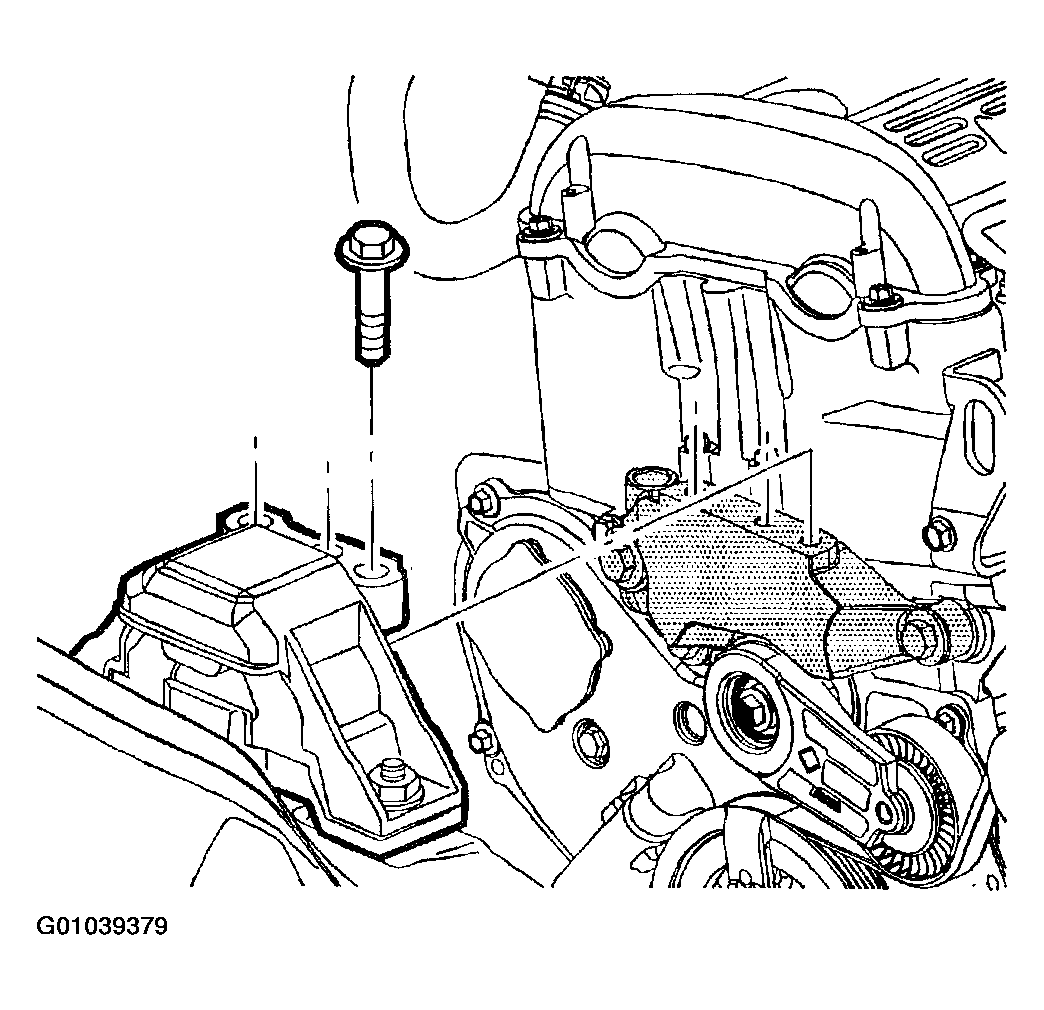

    Fig 2: Removing Mount-To-Bracket Bolts
    G01039379Courtesy of GENERAL MOTORS CORP.
