Right Hand Mount Bracket: Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install mount bracket to engine.
  2. Install bracket to engine bolts.

    Torque:

    Bracket-to-Engine Bolts (4-Cyl): 110 N.m (81 ft-lbs)

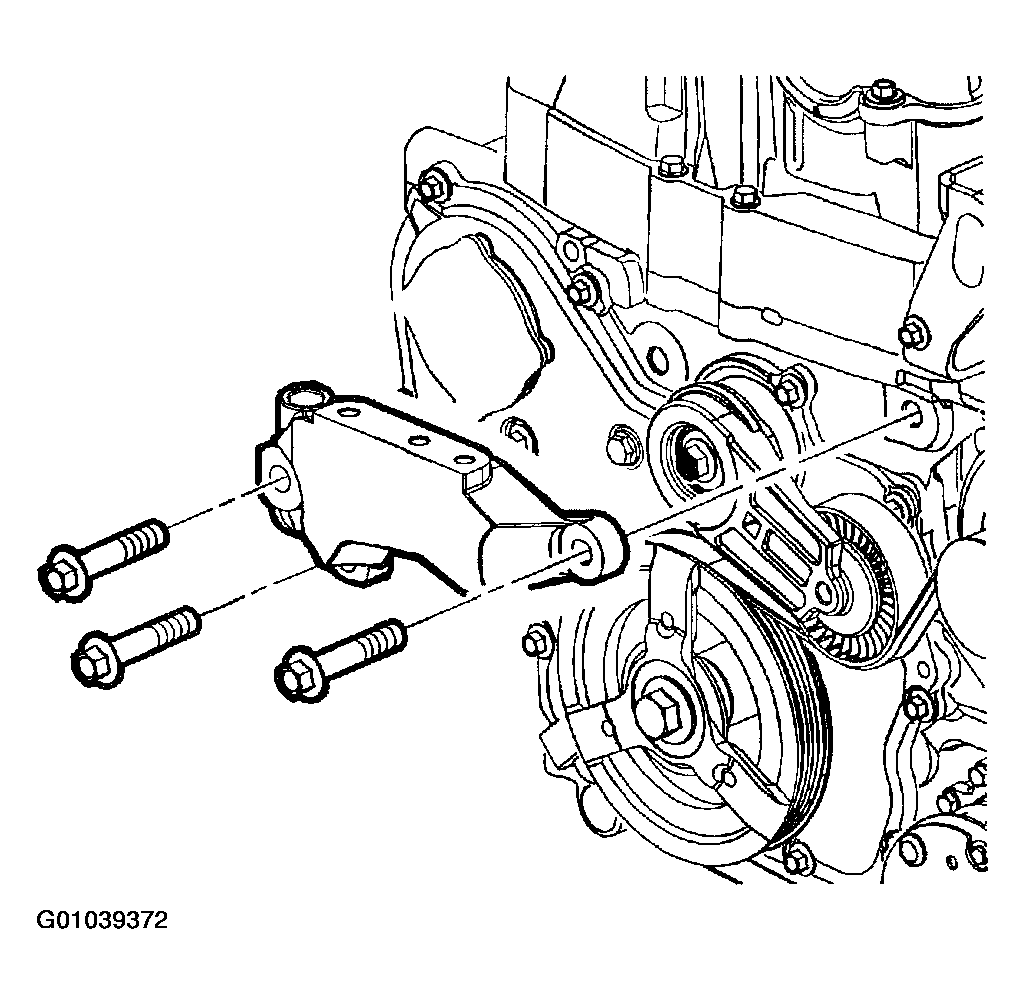

    Fig 1: Installing Mount Bracket Bolts
    G01039372Courtesy of GENERAL MOTORS CORP.
  3. Position mount to frame rail.
  4. Install mount to frame rail nuts and tighten.

    Torque:

    Mount-to-Frame Rail Nuts: 110 N.m (81 ft-lbs)

  5. Hand start all mount to bracket bolts. Reposition powertrain as required to allow all bolts to hand start.

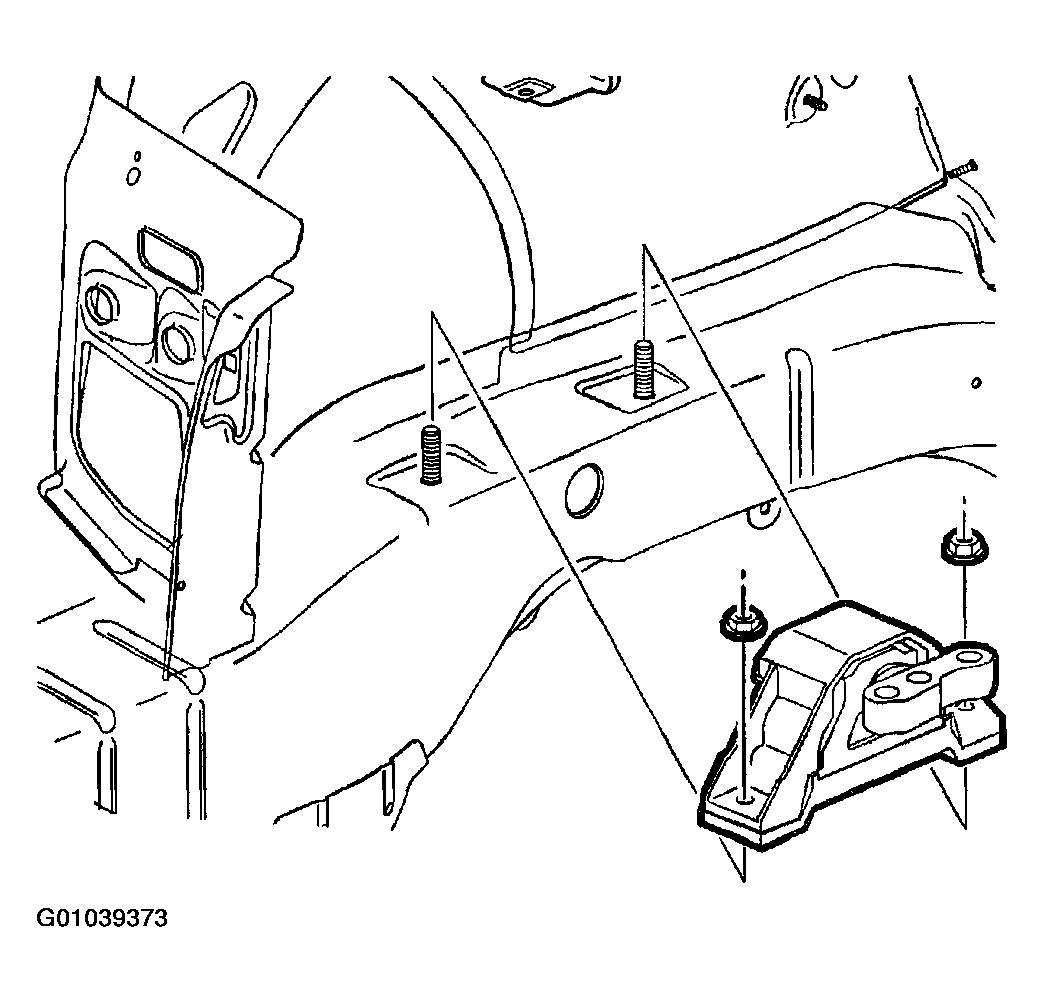

    Fig 2: Installing Mount To Frame Rail
    G01039373Courtesy of GENERAL MOTORS CORP.
  6. Tighten mount to bracket bolts, starting with center positions first.

    Torque:

    Mount-to-Bracket Bolts: 50 N.m (37 ft-lbs)

  7. Remove engine support.
  8. Install air cleaner assembly.
  9. Start engine and observe idle shake, if excessive perform powertrain balance procedure: Operation #2.

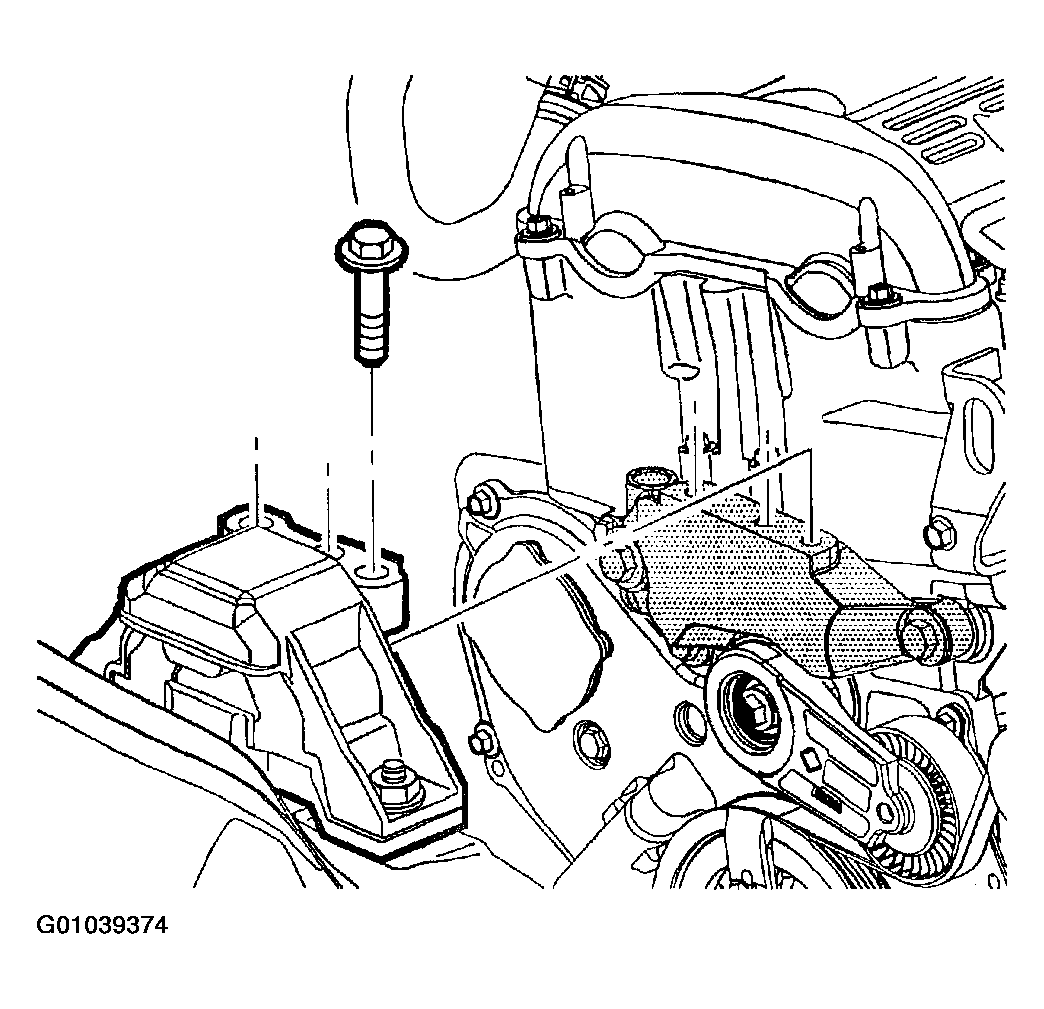

    Fig 3: Installing Mount-To-Bracket Bolts
    G01039374Courtesy of GENERAL MOTORS CORP.
