Engine Block And Components

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

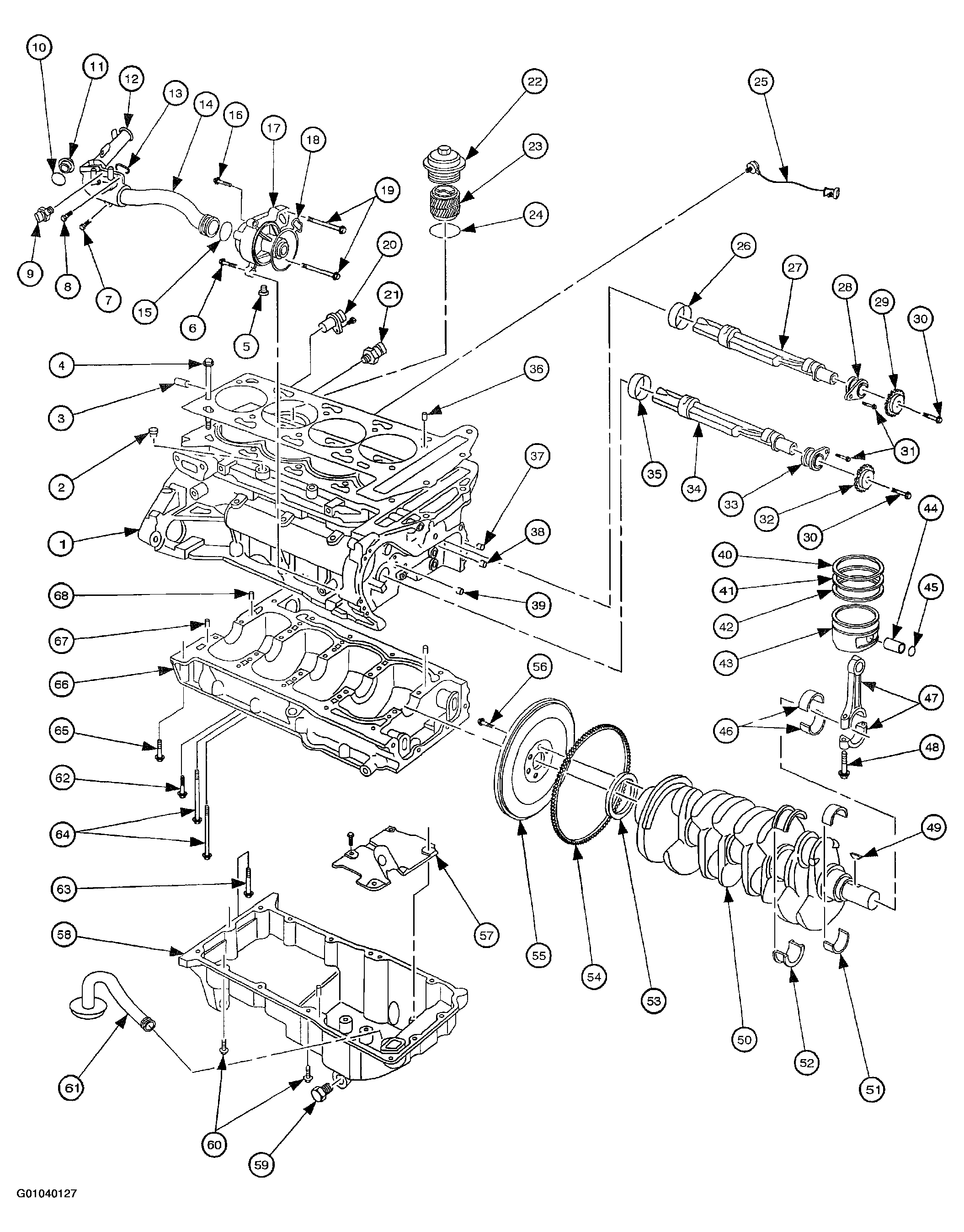

Fig 1: Exploded View Of Engine Block And Components
G01040127Courtesy of GENERAL MOTORS CORP.

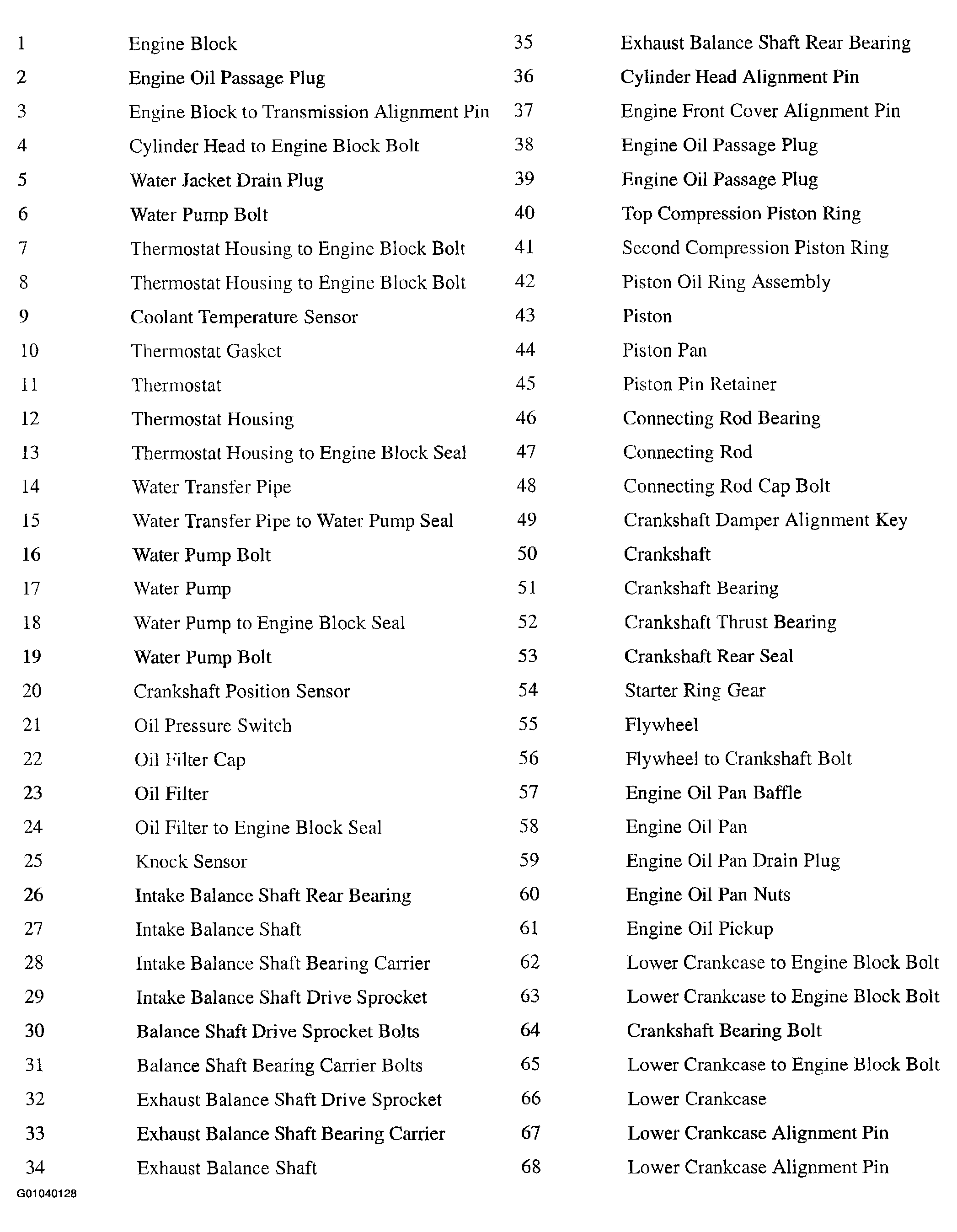

Fig 2: Engine Block And Components Legend
G01040128Courtesy of GENERAL MOTORS CORP.
