Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power steering pump from the engine for clearance. Refer to Power Steering Pump Replacement (3.8L)  or Power Steering Pump Replacement (3.1L)  .
  2. Using J 37609-A  remove the power steering pump pulley from the power steering pump.

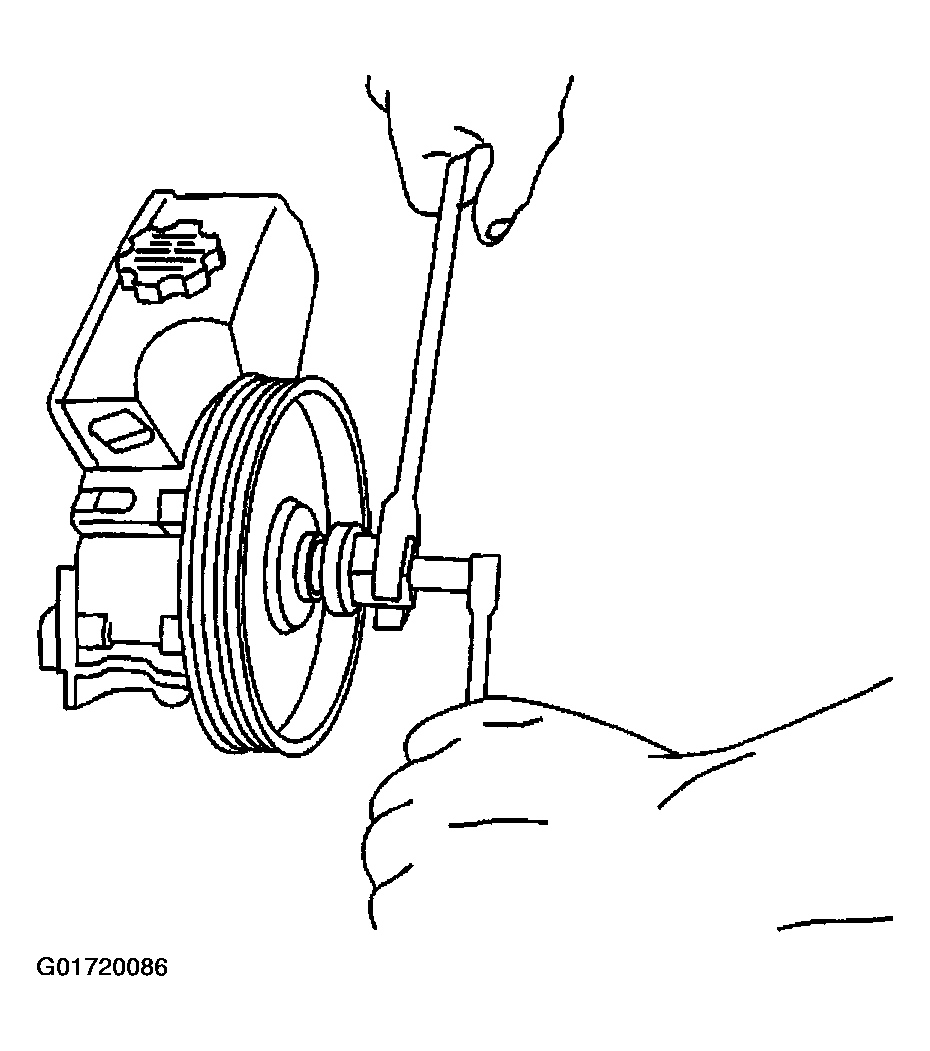

Fig 1: Power Steering Pump Pulley
G01720086Courtesy of GENERAL MOTORS CORP.
