Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belt. Refer to SPECIFICATIONS & DRIVE BELT ROUTING .
  2. Remove the BEC for tool clearance.
  3. Using J 37609-A  remove the power steering pump pulley from the power steering pump.

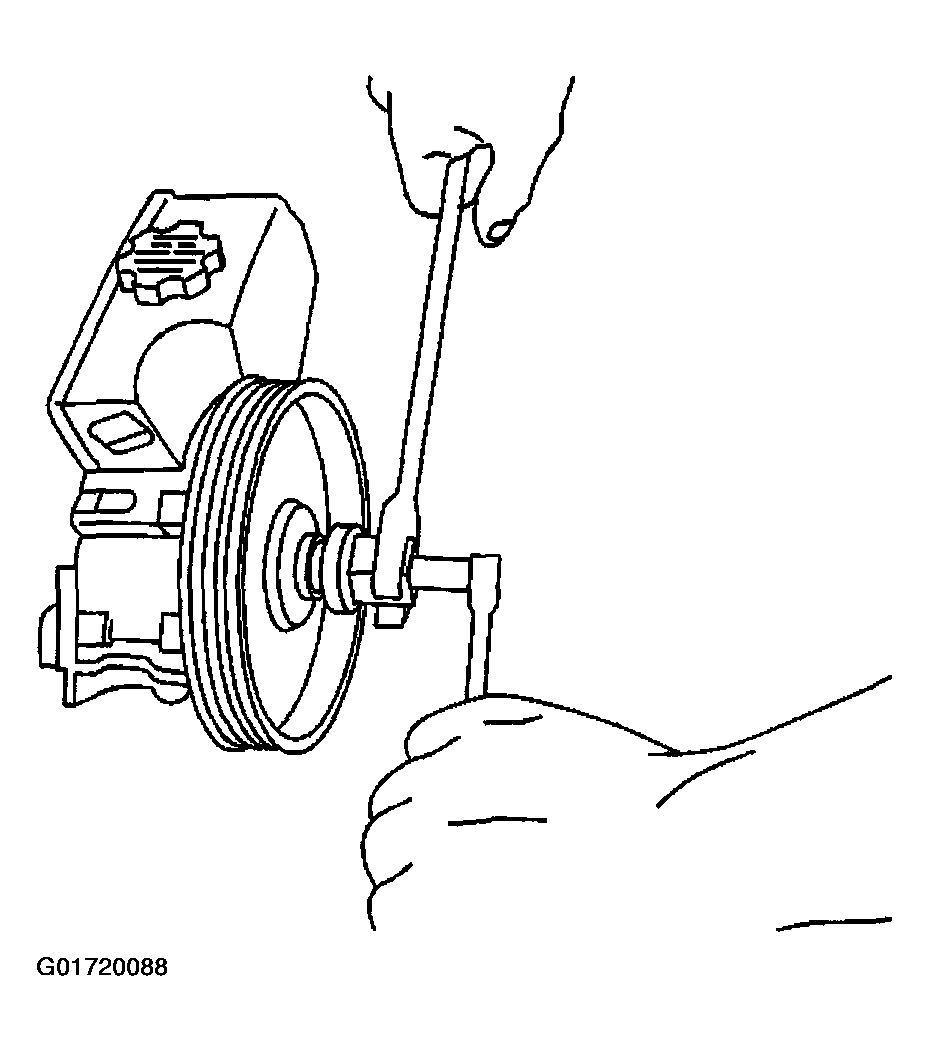

Fig 1: Power Steering Pulley
G01720088Courtesy of GENERAL MOTORS CORP.
