Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place a drain pan under the vehicle.
  2. Remove the accessory drive belt. Refer to SPECIFICATIONS & DRIVE BELT ROUTING .
  3. Raise and support the vehicle.
  4. Remove the tire and wheel assembly.
  5. The power steering pressure hose is the lower hose at the power steering gear.
  6. Remove the power steering pressure hose from the power steering gear.
  7. Remove the power steering pressure hose from the power steering pump.
  8. Remove the power steering pressure hose from the clamps on the power steering gear.
  9. Remove the power steering pressure hose from the vehicle.

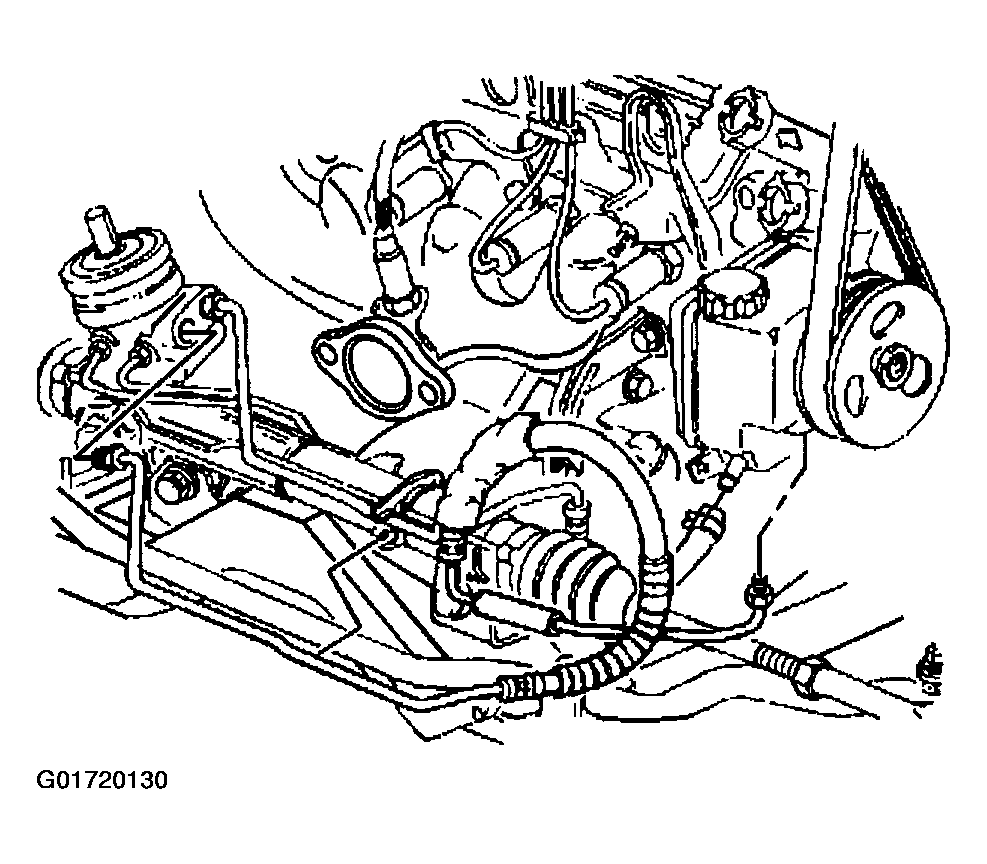

Fig 1: Power Steering Gear Pressure Hose Components
G01720130Courtesy of GENERAL MOTORS CORP.
