Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the return hose from the cooler pipe/hose. Refer to Power Steering Return Hose Replacement (3.1L)  or Power Steering Return Hose Replacement (3.8L)  .
  3. Remove the cooler pipe/hose retaining bolt from the frame.
  4. Remove the cooler pipe/hose from the retaining clips on the frame.

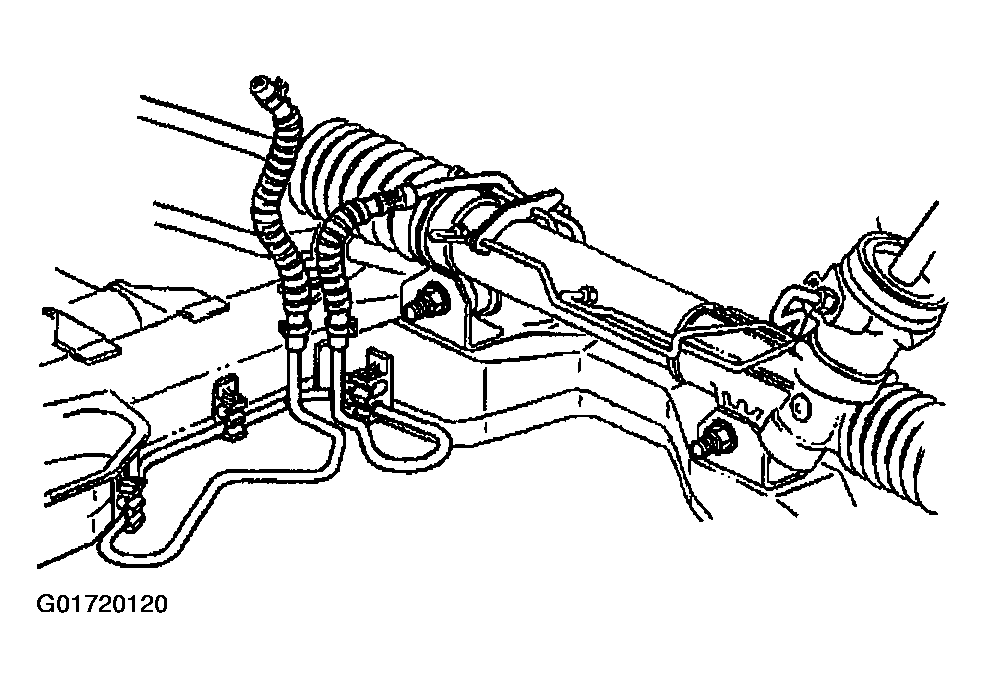

    Fig 1: Cooler Pipe/Hoses
    G01720120Courtesy of GENERAL MOTORS CORP.
  5. Remove the cooler pipe/hose from the clamps on the steering gear.
  6. Remove the wiring harness clip from the cooler pipe/hose.
  7. Remove the cooler pipe/hose from the steering gear.
  8. Remove the cooler pipe/hose from the vehicle.

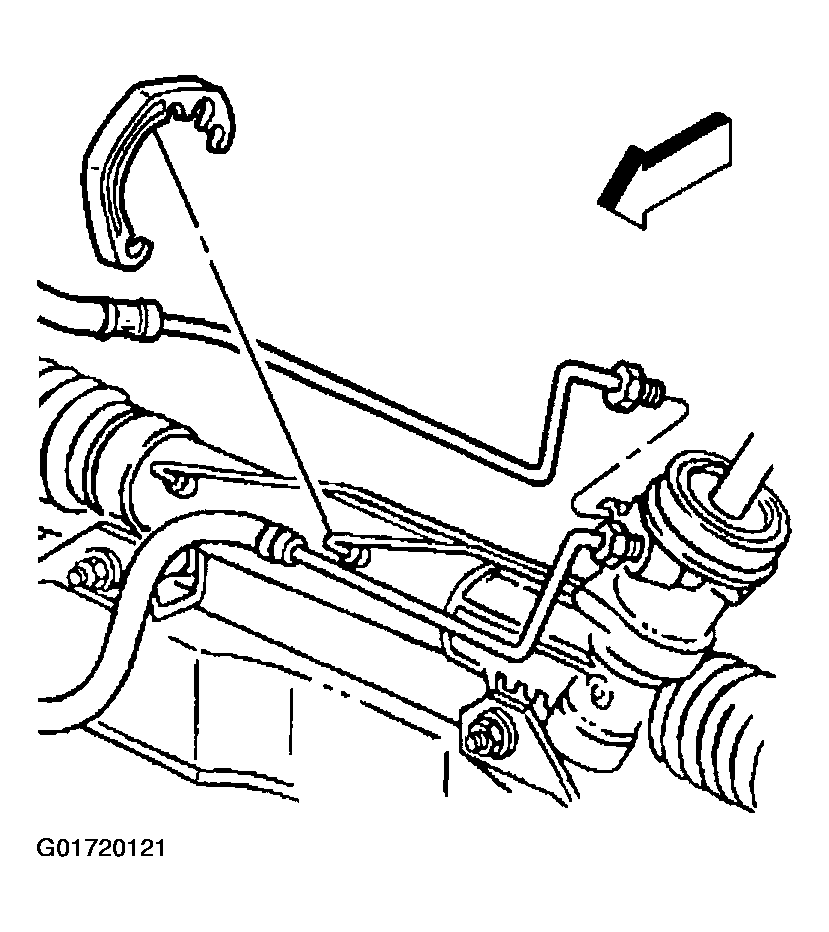

Fig 2: Cooler Pipe/Hose Clamp
G01720121Courtesy of GENERAL MOTORS CORP.
