Test Description

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 2. Test for the current state of the brake lamp switch parameter.

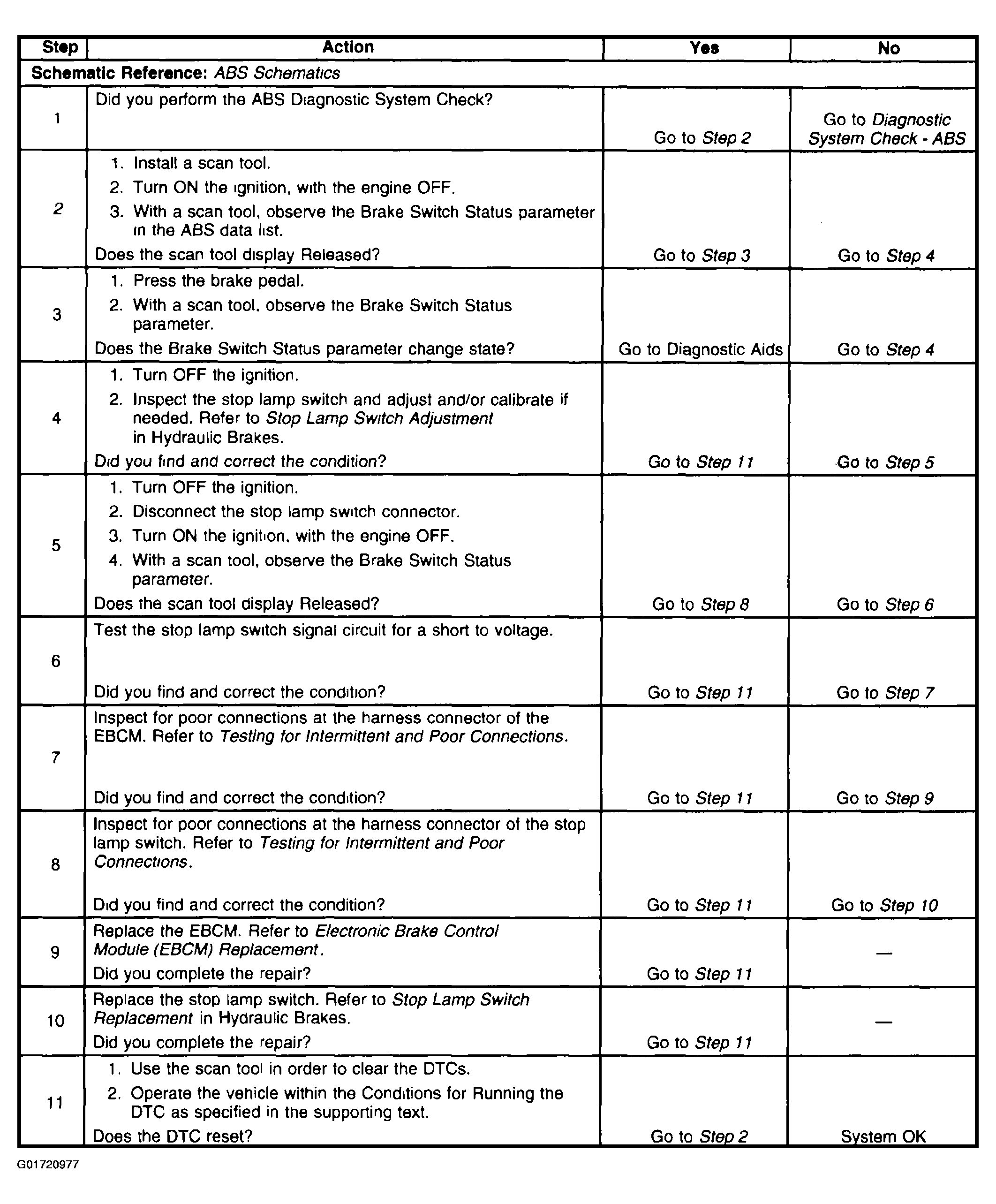

Fig 1: DTC C1294 Testing Procedures
G01720977Courtesy of GENERAL MOTORS CORP.
