Test Description

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. Tests for an open in the ground circuit of the body control module.
  2. 4. Verifies the proper operation of the charging system.
  3. 6. Determines whether the DTC resets.

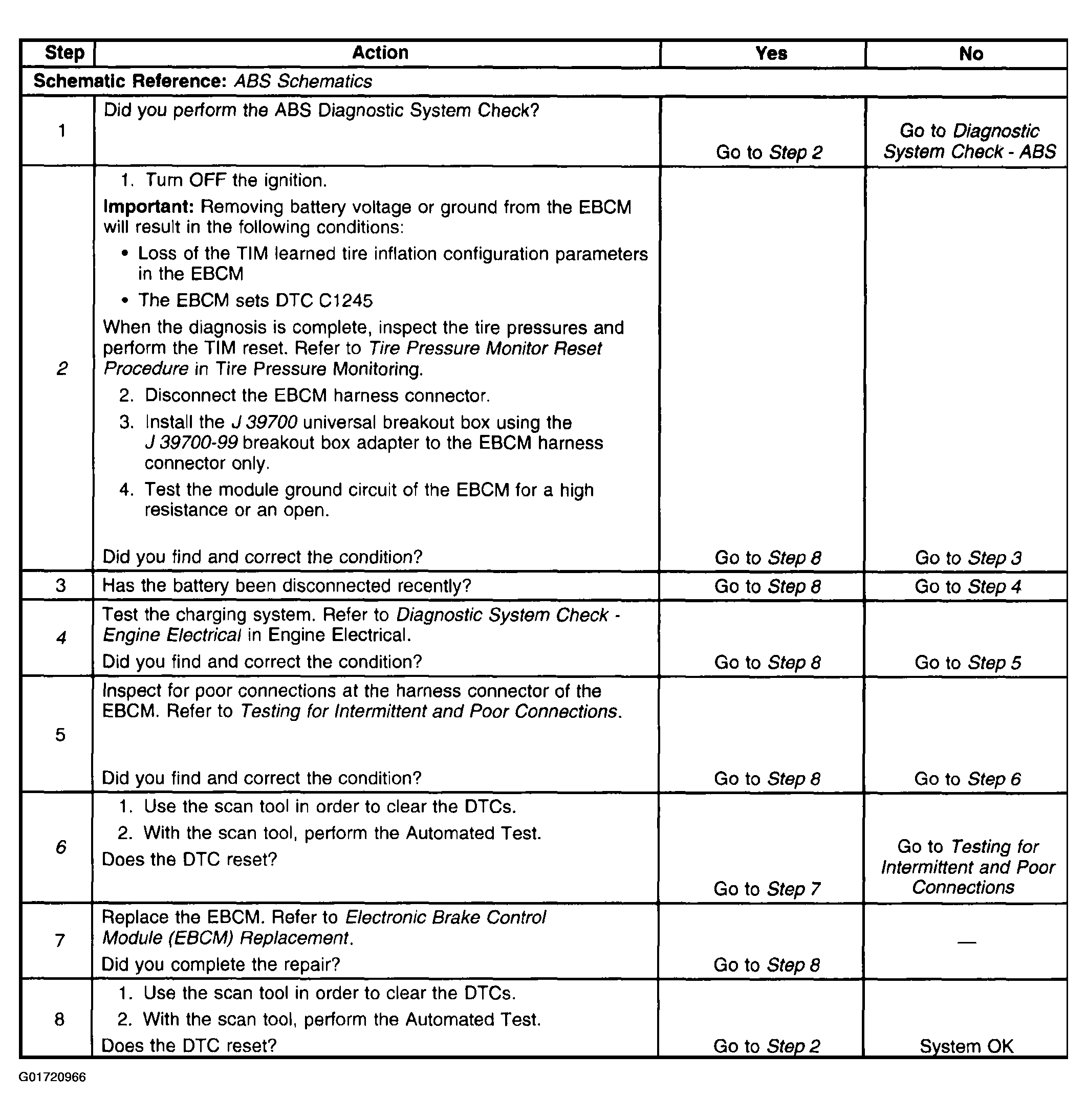

Fig 1: DTC C1254 Testing Procedures
G01720966Courtesy of GENERAL MOTORS CORP.
