Test Description

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 2. Determines whether the DTC is current.

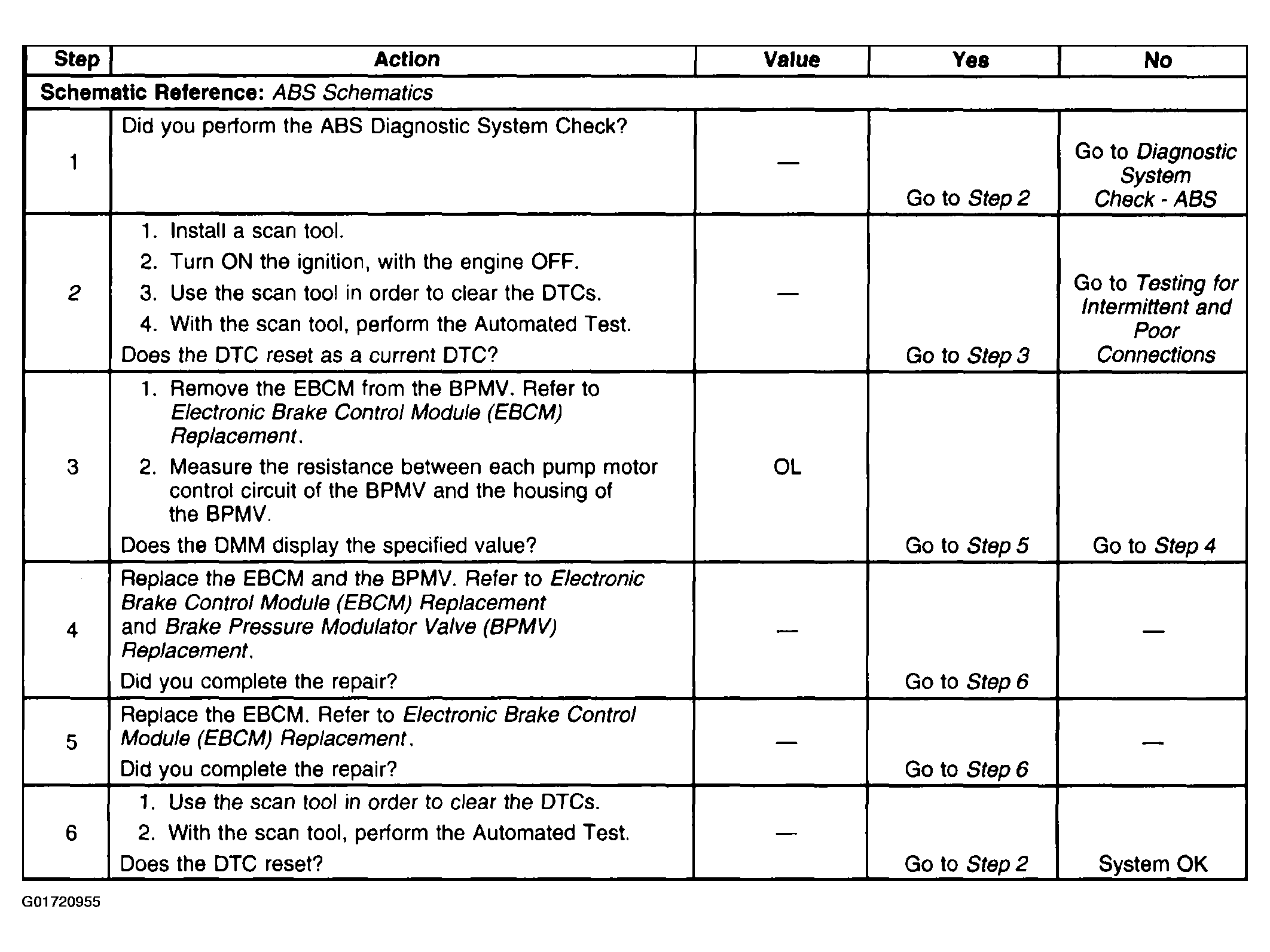

Fig 1: DTC C1214 Testing Procedures
G01720955Courtesy of GENERAL MOTORS CORP.
