Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.

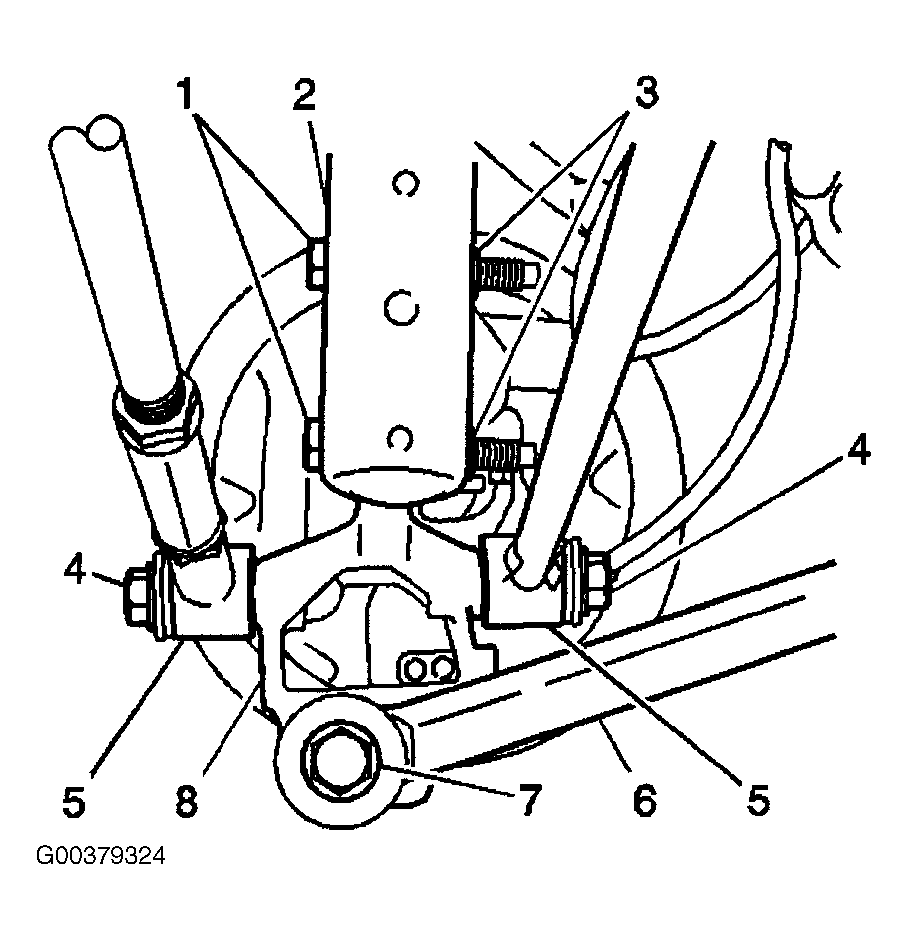

  2. Remove the bolt and nut from the trailing arm (6) and the knuckle (8). See Figure.
  3. Remove the nut and bolt from the trailing arm (6) and the trailing arm bracket.
  4. Remove the trailing arm (6) from the vehicle.
