Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Remove the tire and wheel assembly.
  3. Scribe the strut to the knuckle.
    Fig 1: Scribing Strut To Knuckle
    G00379322Courtesy of GENERAL MOTORS CORP.

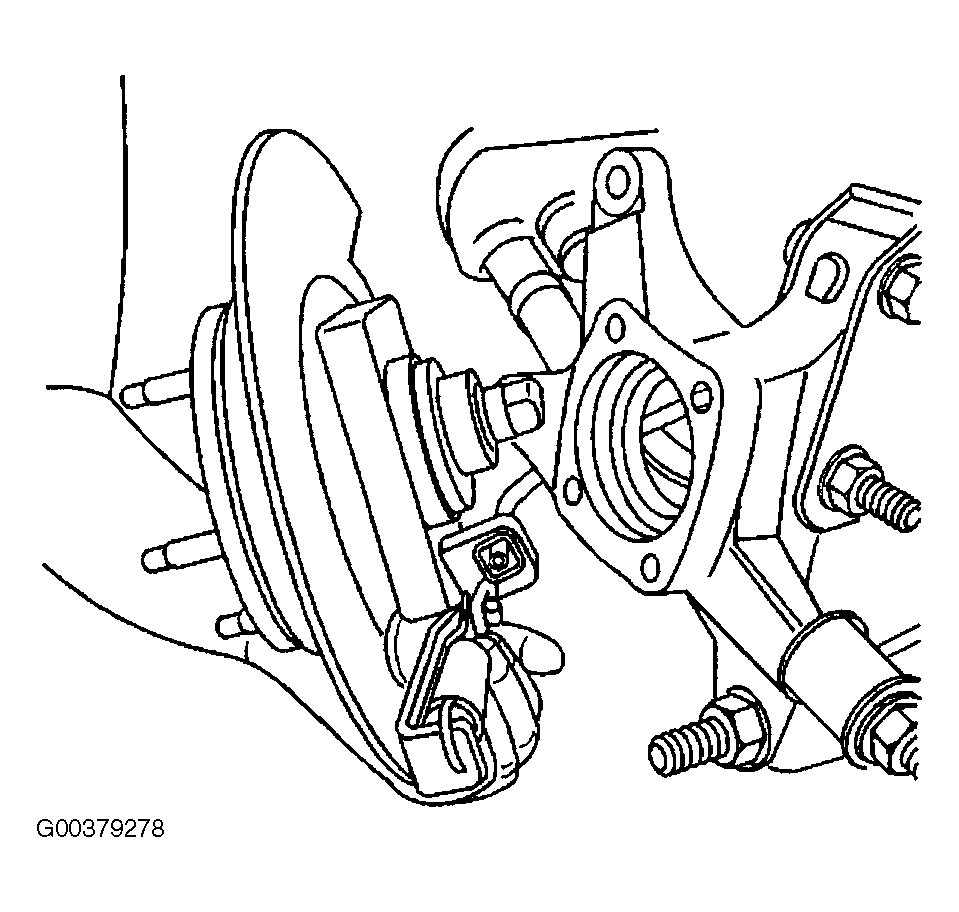

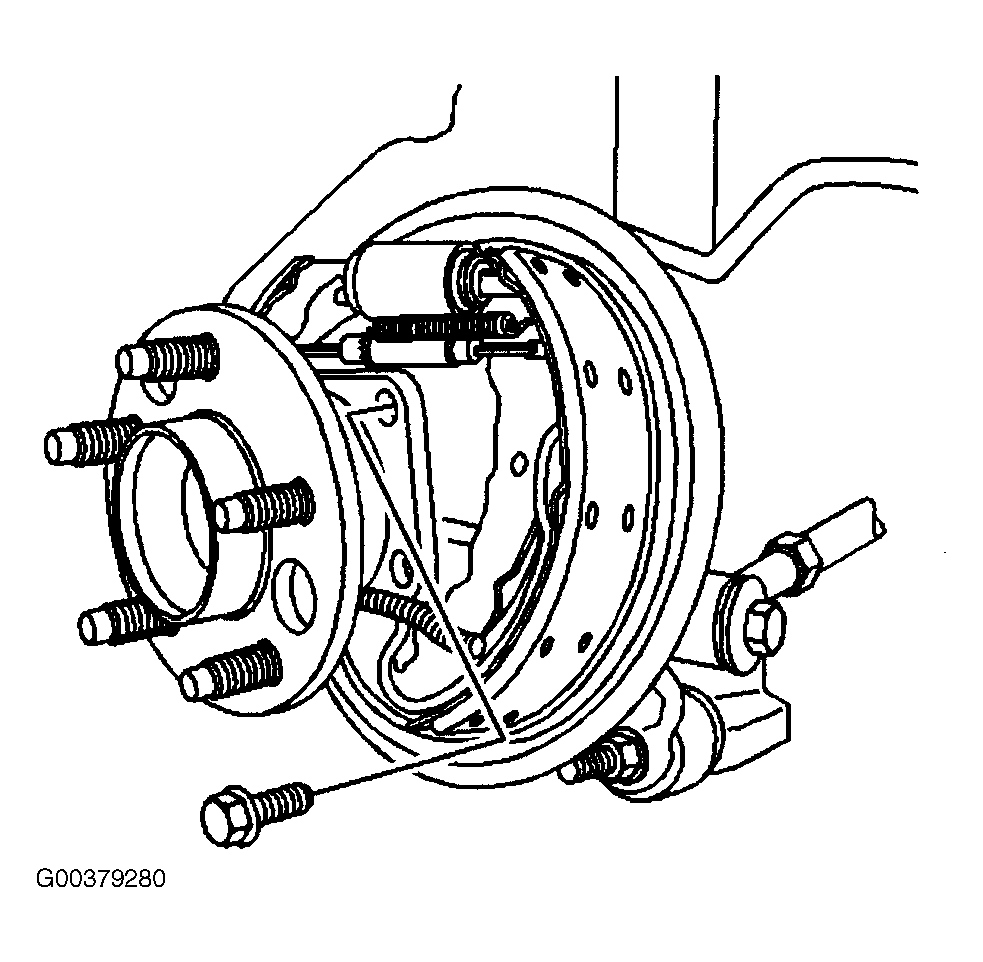

  4. Remove the bearing/hub assembly. Refer to Figure or Figure .
  5. Remove the rear wheel spindle rods (8) from the knuckle (5). Refer to SPINDLE ROD REPLACEMENT .

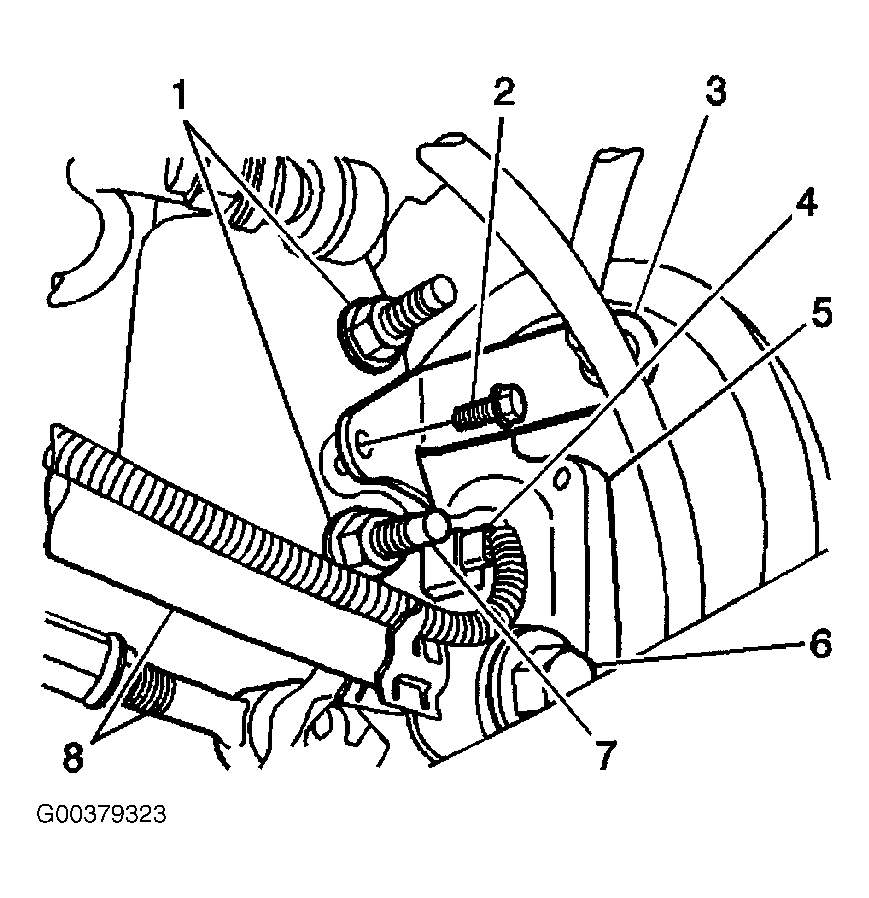

    Fig 2: Removing Rear Wheel Spindle Rods From Knuckle
    G00379323Courtesy of GENERAL MOTORS CORP.
  6. Remove the trailing arm (6) from the knuckle (8). Refer to TRAILING ARM REPLACEMENT .
    Fig 3: Removing Trailing Arm From Knuckle
    G00379324Courtesy of GENERAL MOTORS CORP.
  7. Remove the rear strut to knuckle bolts (7) and the nuts (1). Refer to STRUT ASSEMBLY REPLACEMENT .
  8. Remove the knuckle (5) from the vehicle.
