Water Pump Replacement - L81: Installation

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Clean and block at water pump mating surface.
Install new water pump O-seal to water pump.
Install water pump assembly.
Install water pump bolts.
Torque:

Water Pump Bolts - 6-Cyl: 25 N.m (18 ft-lbs)

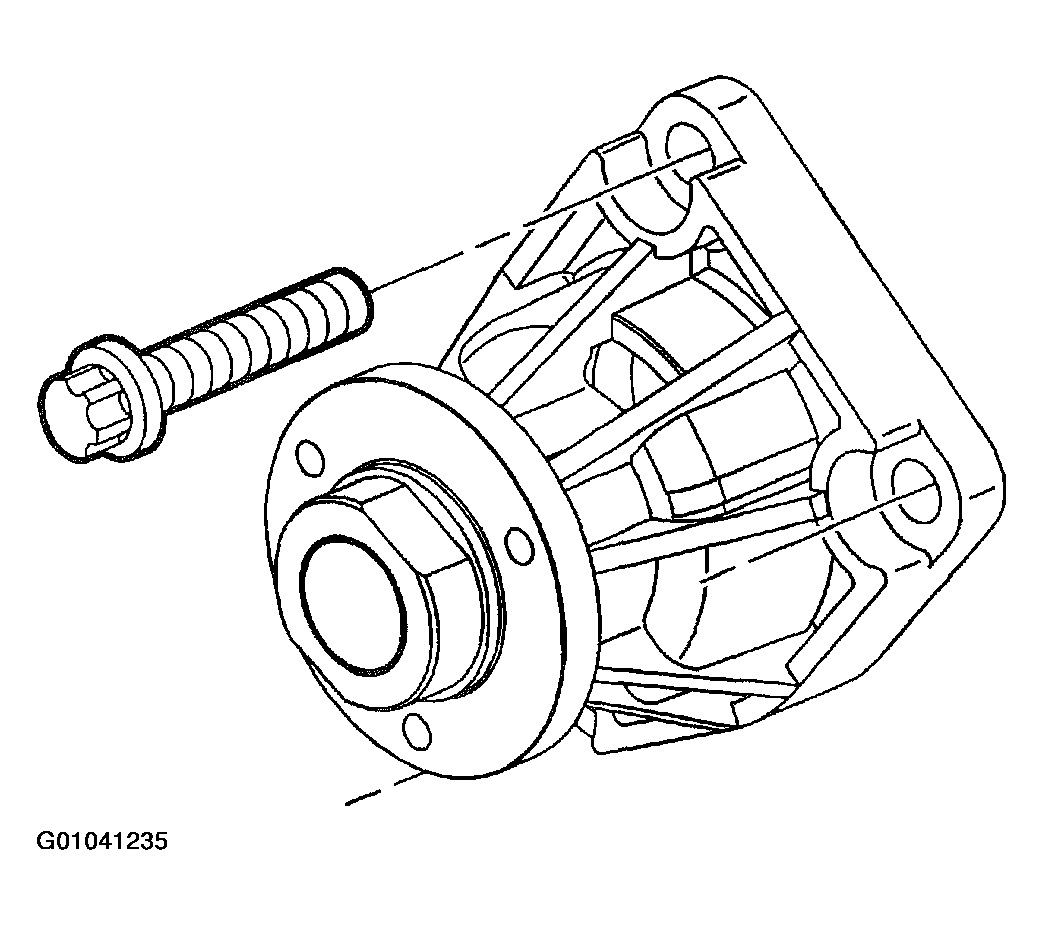

Fig 1: Installing Water Pump Bolts
Courtesy of GENERAL MOTORS CORP.
Install front timing belt cover. Refer to TIMING BELT REPLACEMENT .

Fig 2: Installing Front Timing Belt Cover
Courtesy of GENERAL MOTORS CORP.
Fill coolant.

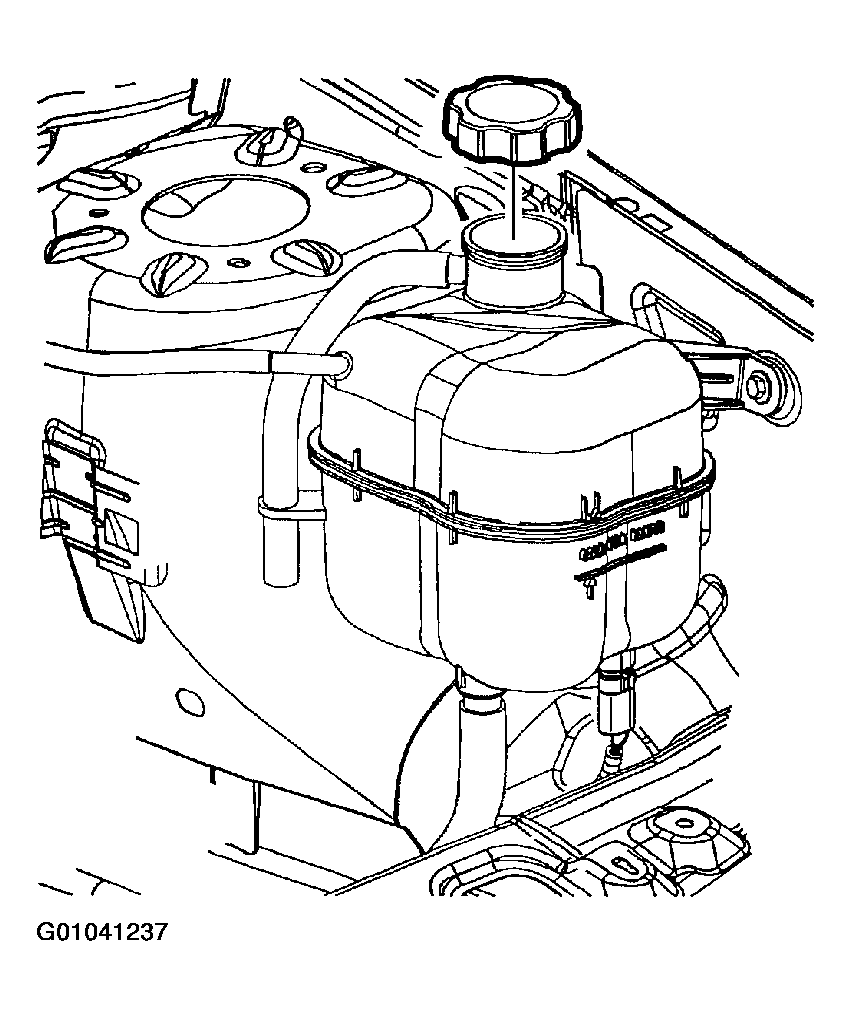

Fig 3: Instaling Coolant Reservoir Cap
Courtesy of GENERAL MOTORS CORP.
