Surge Tank Vent Hose - L81: Removal

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove air outlet duct assembly.
  2. Remove surge tank vent hose to surge tank clamp and hose.
  3. Remove surge tank vent hose to throttle body clamp and hose.

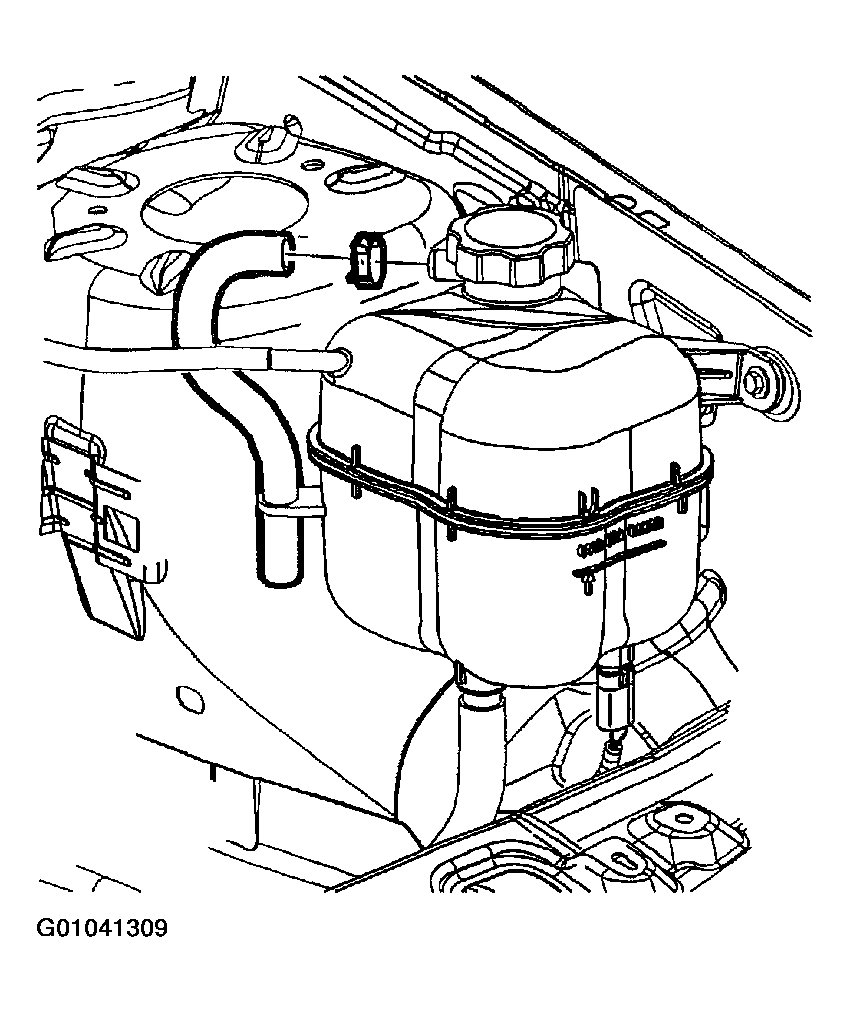

    Fig 1: Removing Surge Tank Vent Hose To Surge Tank Clamp And Hose
    G01041309Courtesy of GENERAL MOTORS CORP.
