Surge Tank Vent Hose - L61: Removal

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen air outlet duct to throttle body clamp.
  2. Remove air outlet bracket to cylinder head nut and lift duct off throttle body.
  3. Remove vent hose to surge tank clamp.

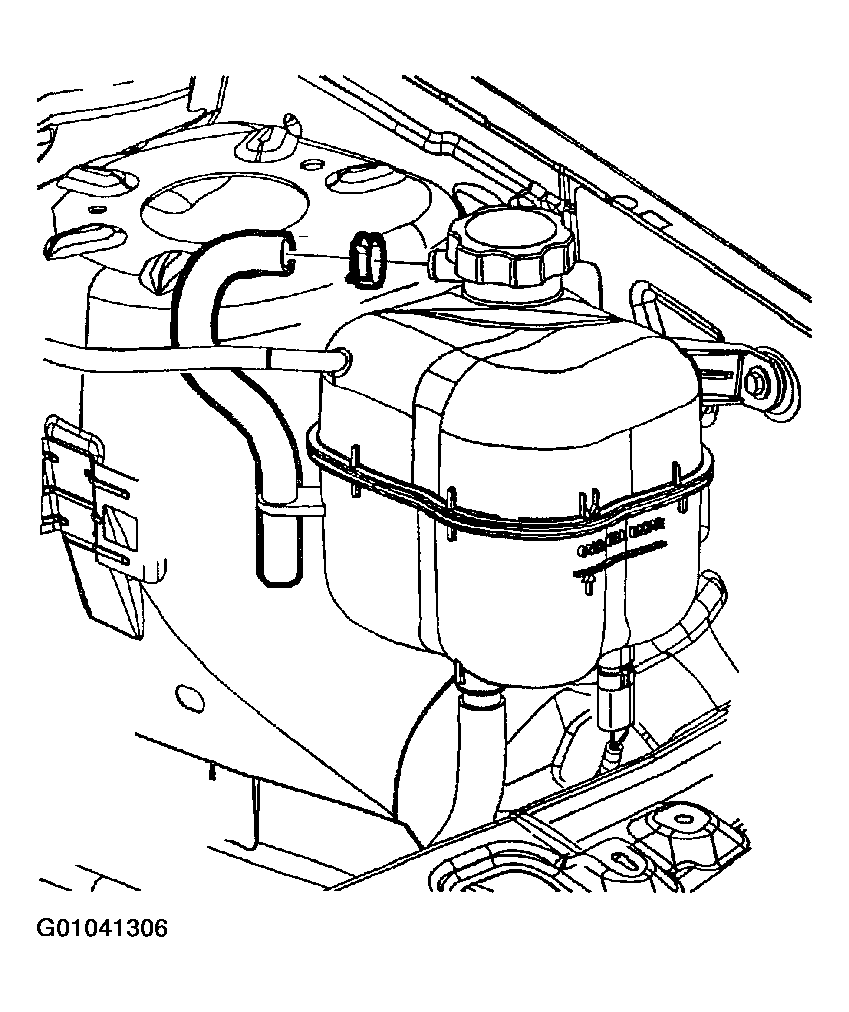

    Fig 1: Removing Vent Hose To Surge Tank Clamp
    G01041306Courtesy of GENERAL MOTORS CORP.
  4. Remove vent hose to cylinder head port clamp and hose from port.
  5. Unclip vent hose from fuel rail and remove hose assembly.

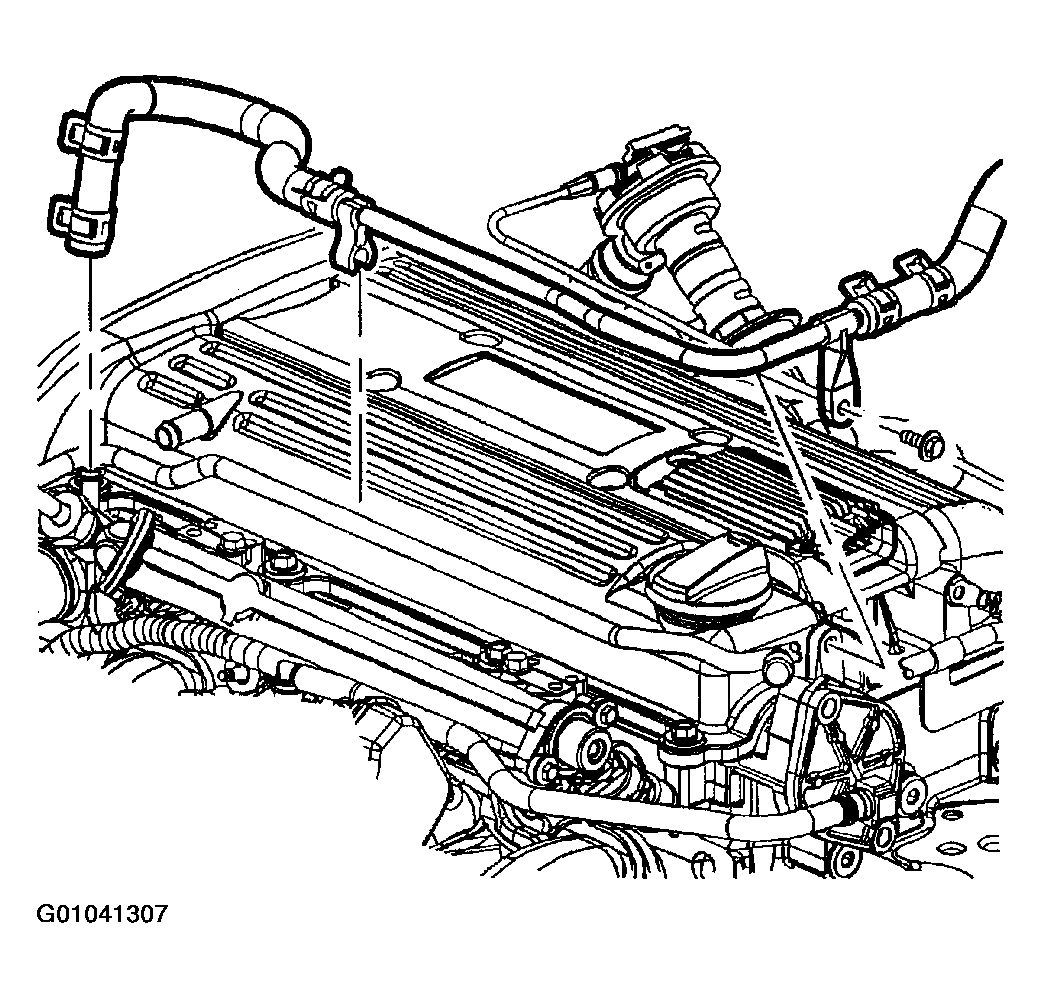

Fig 2: Unclipping Vent Hose From Fuel Rail
G01041307Courtesy of GENERAL MOTORS CORP.
