Surge Tank Vent Hose - L61: Installation

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Clip vent hose assembly to fuel rail.
Install vent hose to cylinder head port and clamp. Position clamp at 7 o'clock.
Install vent hose to surge tank port and clamp. Position clamp at 12 o'clock.
Install air outlet duct, tighten throttle body clamp.
Install duct bracket to cylinder head nut.

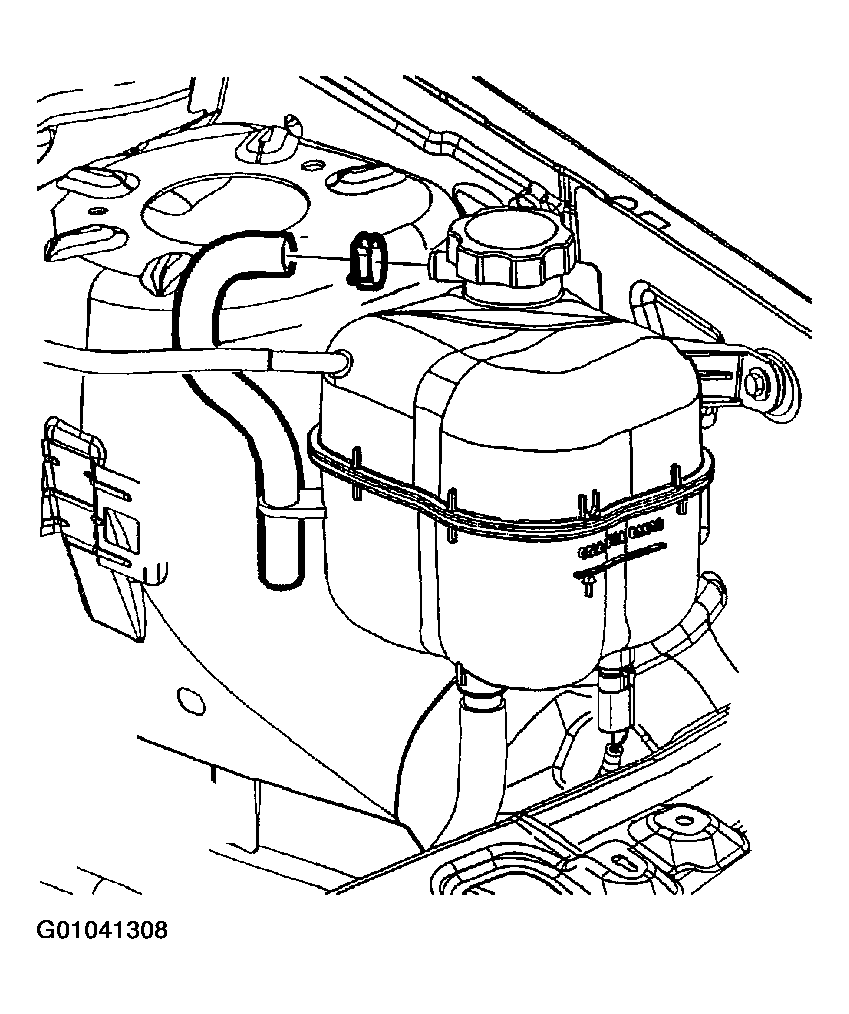

Fig 1: Installing Vent Hose To Surge Tank Port And Clamp
Courtesy of GENERAL MOTORS CORP.
