Radiator Outlet Hose: Removal
WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
- Drain coolant.

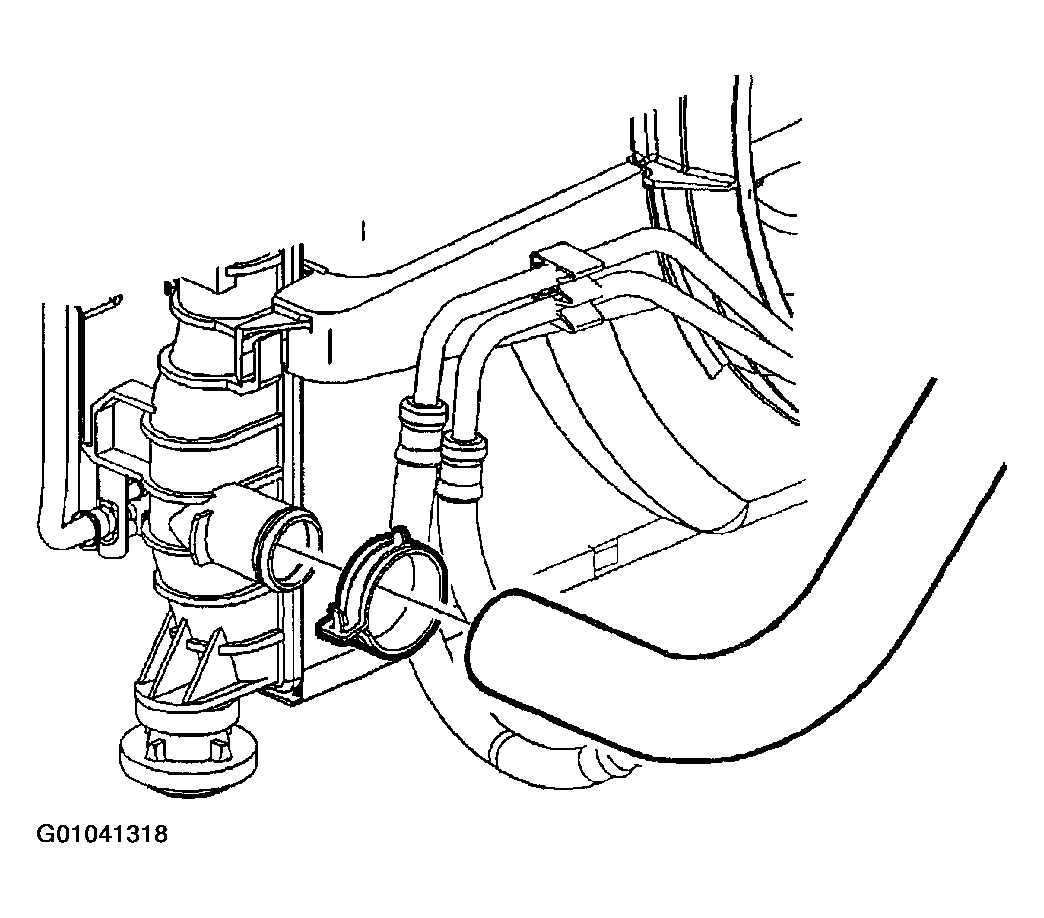

- Remove outlet hose to radiator clamp and hose.
Courtesy of GENERAL MOTORS CORP.
- Remove radiator outlet hose to engine port clamp and hose.
- If vehicle is equipped with L81, removal of battery box /UHFB assembly will be necessary.
