Radiator Inlet Hose: Removal

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain coolant.
  2. Remove radiator inlet hose to radiator clamp.

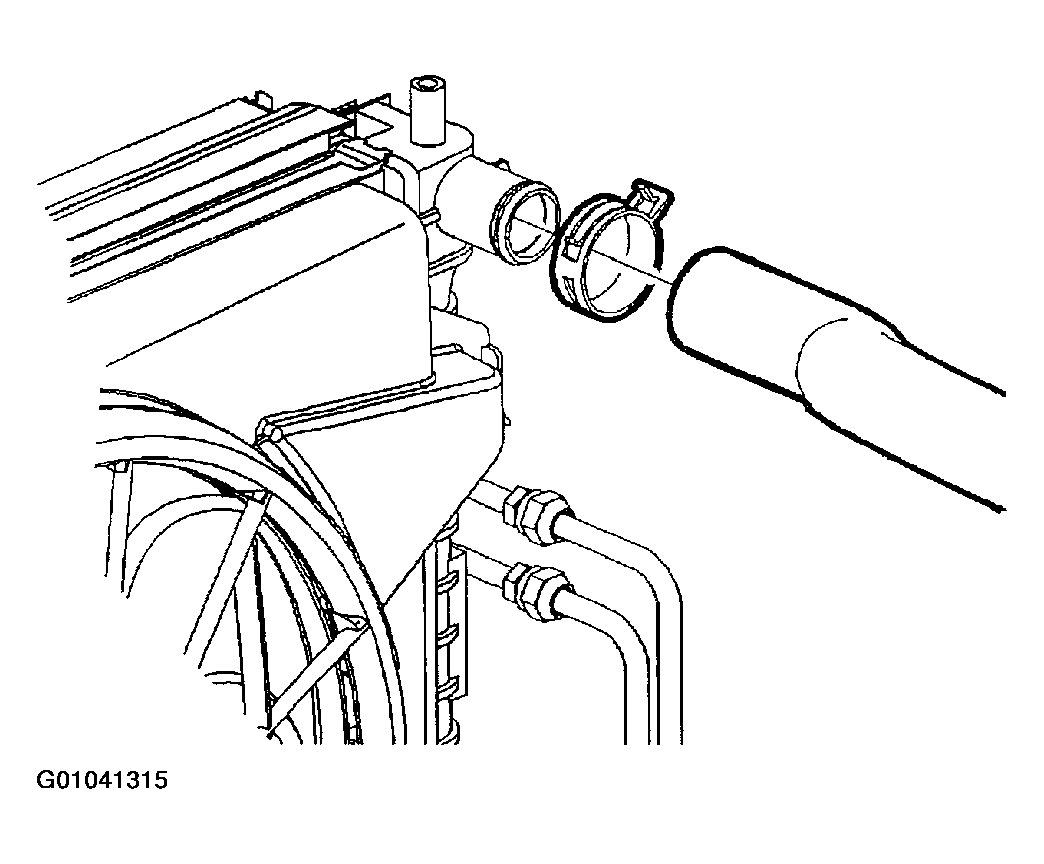

    Fig 1: Remove Radiator Inlet Hose To Radiator Clamp
    G01041315Courtesy of GENERAL MOTORS CORP.
  3. Remove radiator inlet hose to engine port clamp and hose.
