Radiator Inlet Hose: Installation

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Install hose end marked "eng" to engine port, orient "H" on hose to 12 o'clock.
Install clamp at 12 o'clock.

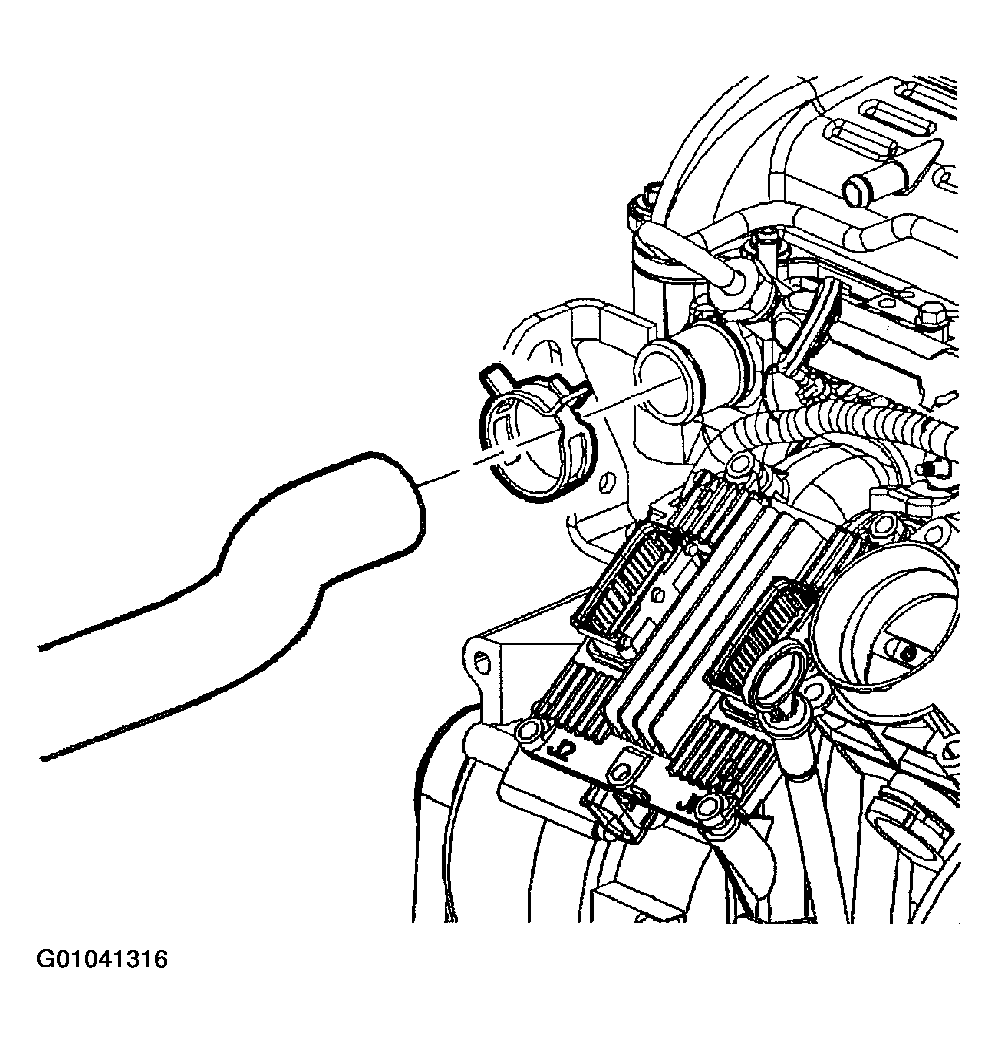

Fig 1: Installing Hose And Clamp To Engine Port
Courtesy of GENERAL MOTORS CORP.
Install hose to radiator with "H" oriented to 12 o'clock.
Install clamp at 6 o'clock.
Fill cooling system.

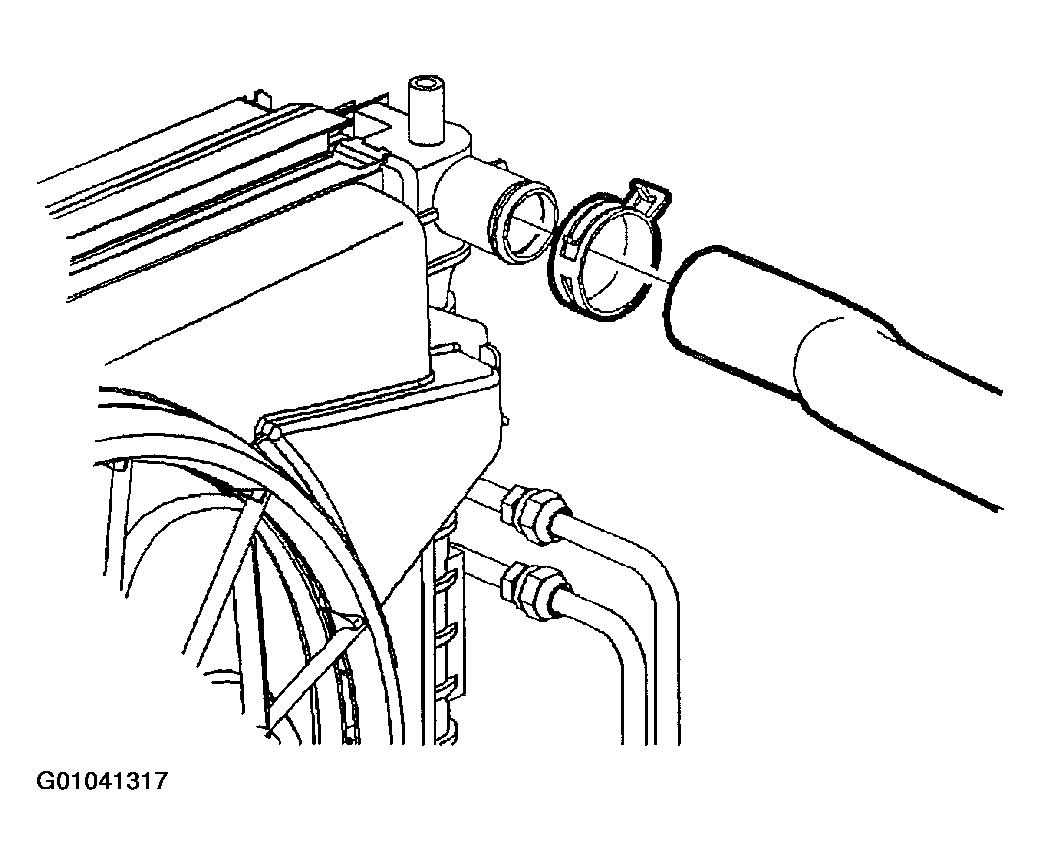

Fig 2: Installing Hose And Clamp To Radiator
Courtesy of GENERAL MOTORS CORP.
