Heater Inlet Hose - L81: Installation

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

If installing front heater inlet hose, install hose and clamp to engine port. Position clamp at 2 o'clock.

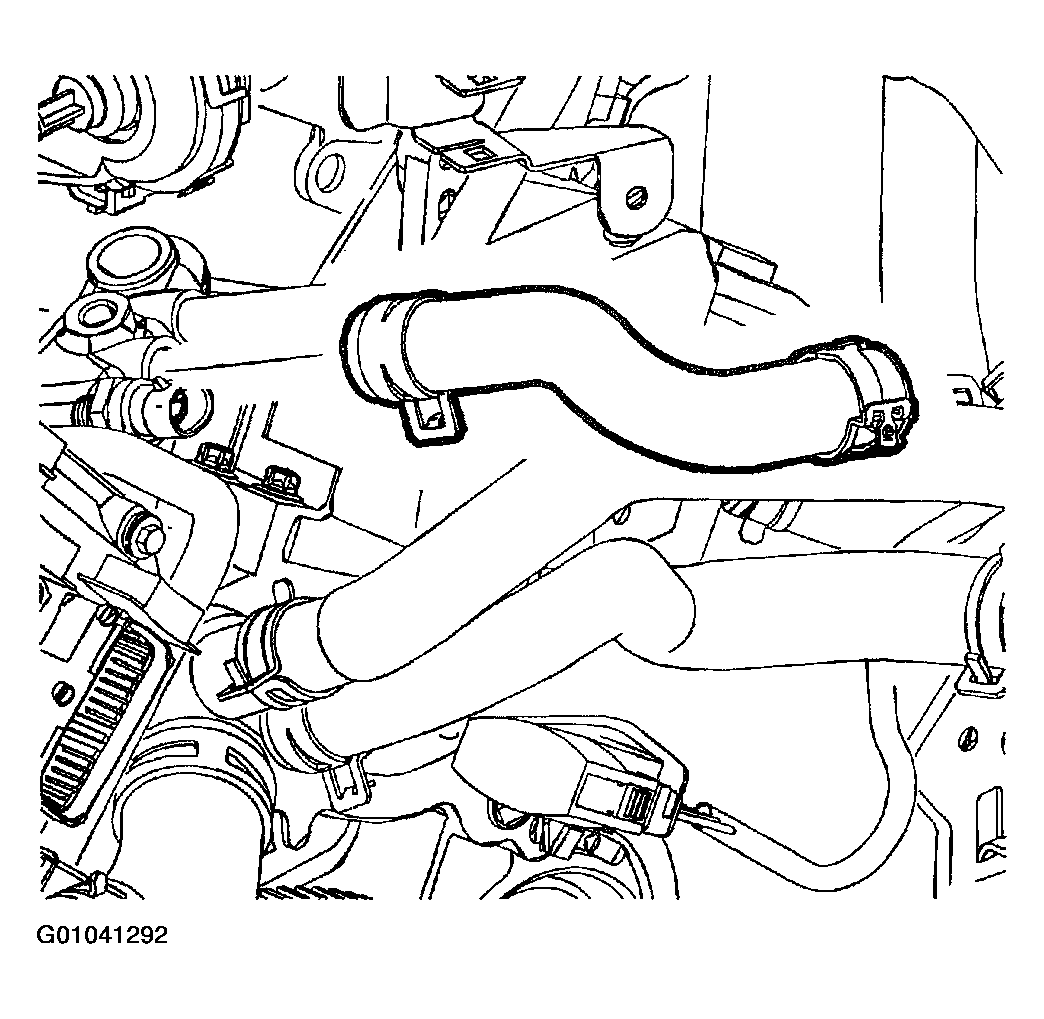

Fig 1: Installing Hose And Clamp To Engine Port
Courtesy of GENERAL MOTORS CORP.
If installing rear heater inlet hose, install hose and clamp to heater core inlet pipe. Position clamp at 9 o'clock.
Install front heater inlet hose to rear and install clamp at 1 o'clock position.
Install air outlet duct assembly.
Install battery box/UHFB assembly. (Refer to "Battery Cooling Box" procedure in the Electrical Service Manual.)
Connect negative battery cable.
Torque:

Battery Terminal Bolt: 17 N.m (13 ft-lbs)
Fill cooling system.

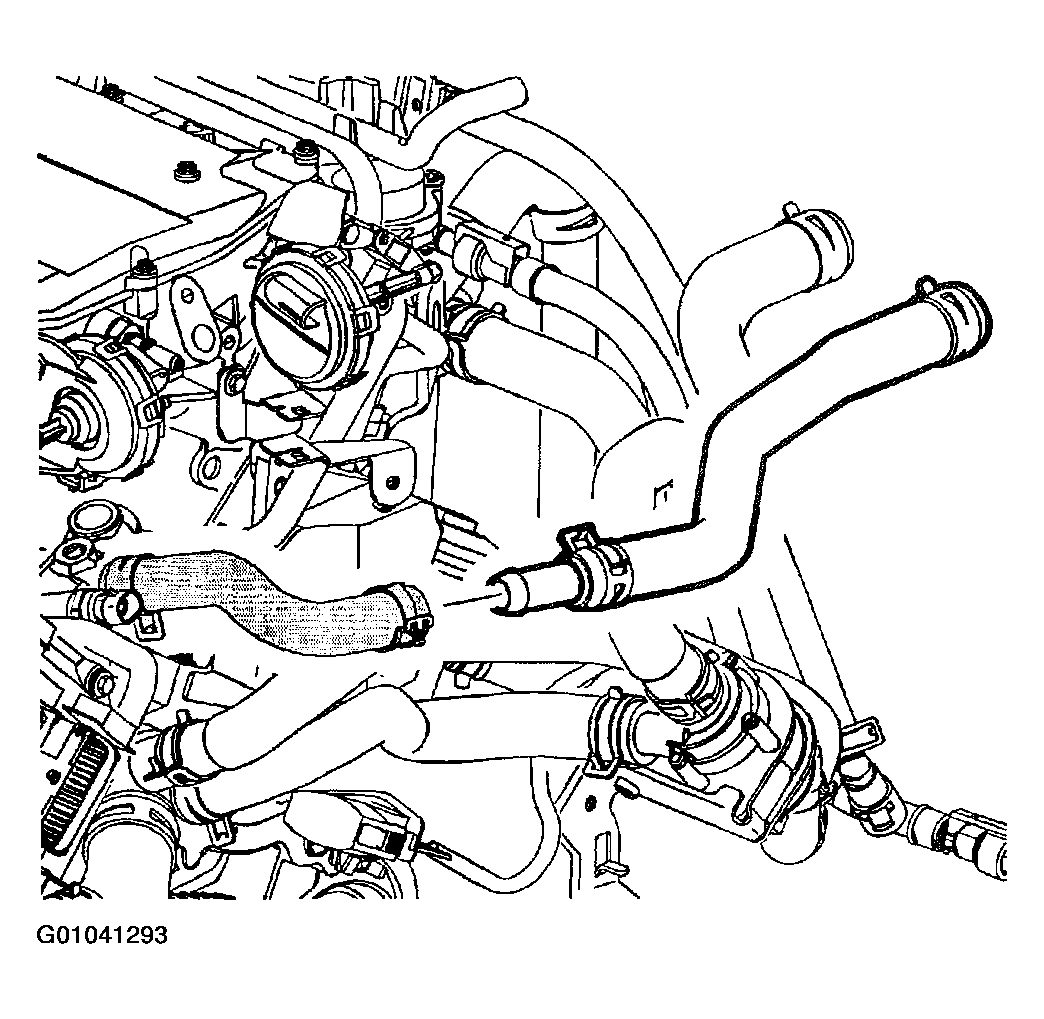

Fig 2: INSTALLING HOSE AND CLAMP TO HEATER CORE INLET PIPE
Courtesy of GENERAL MOTORS CORP.
