Engine Cooling Fan: Removal

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Remove front fascia.
Drain coolant.

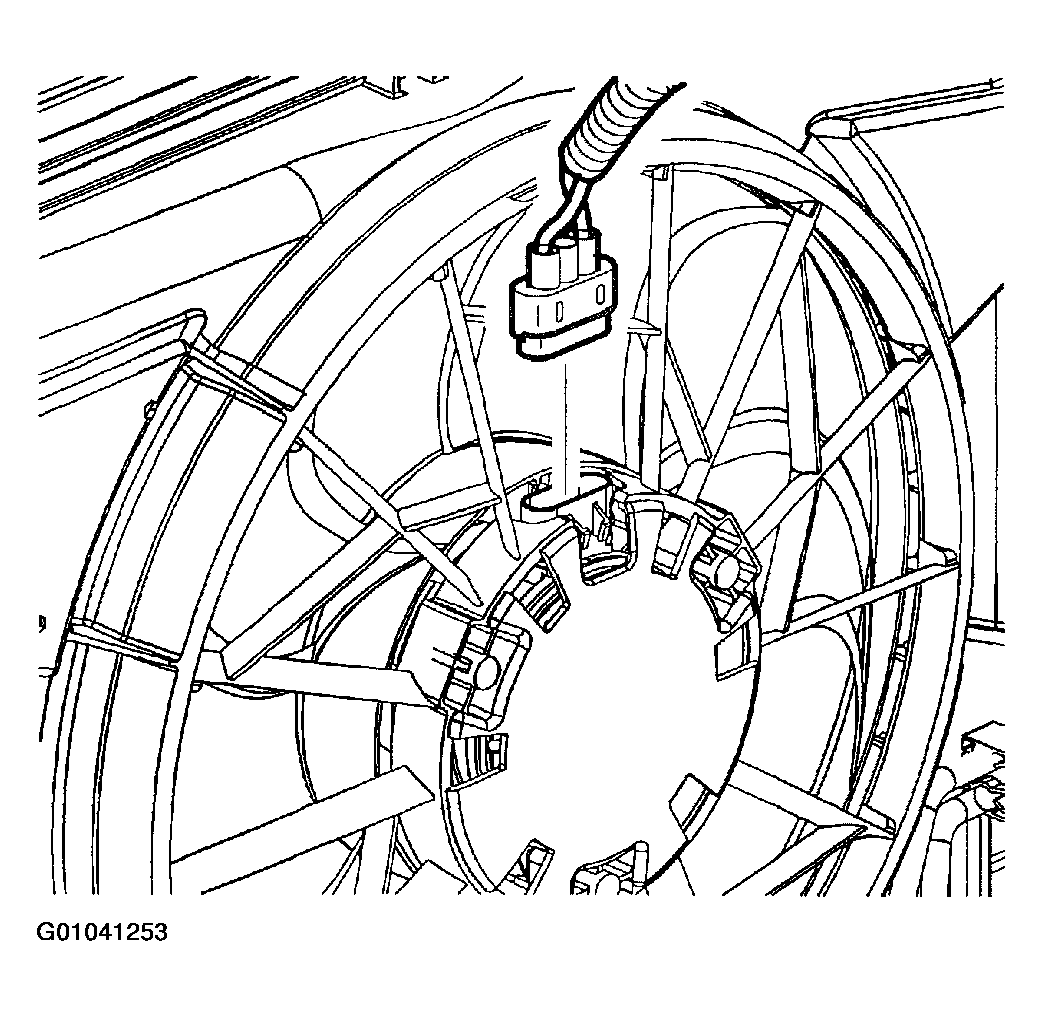

Disconnect fan motor from engine harness.

Fig 1: Disconnecting Fan Motor From Engine Harness
Courtesy of GENERAL MOTORS CORP.

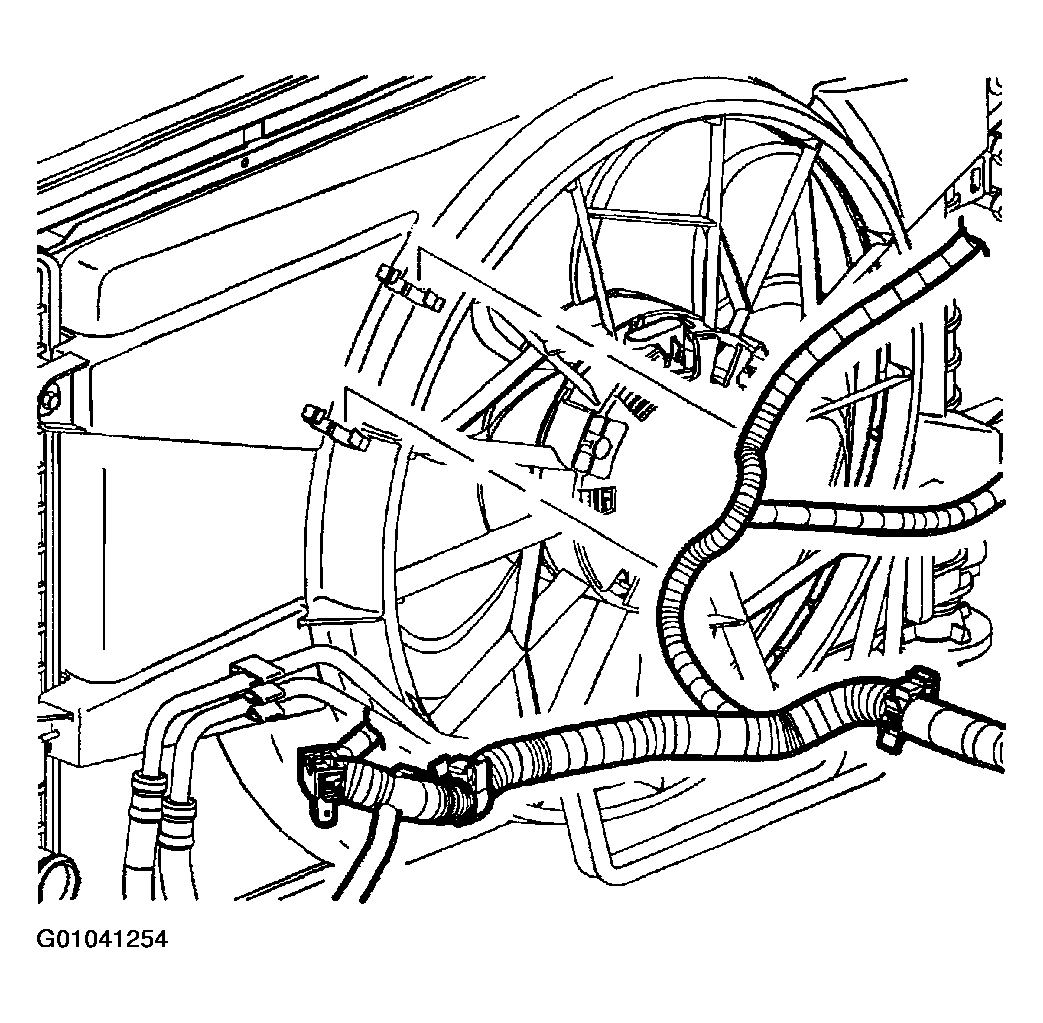

Unclip wire harness from fan assembly.

Fig 2: Unclipping Wire Harness From Fan Assembly
Courtesy of GENERAL MOTORS CORP.

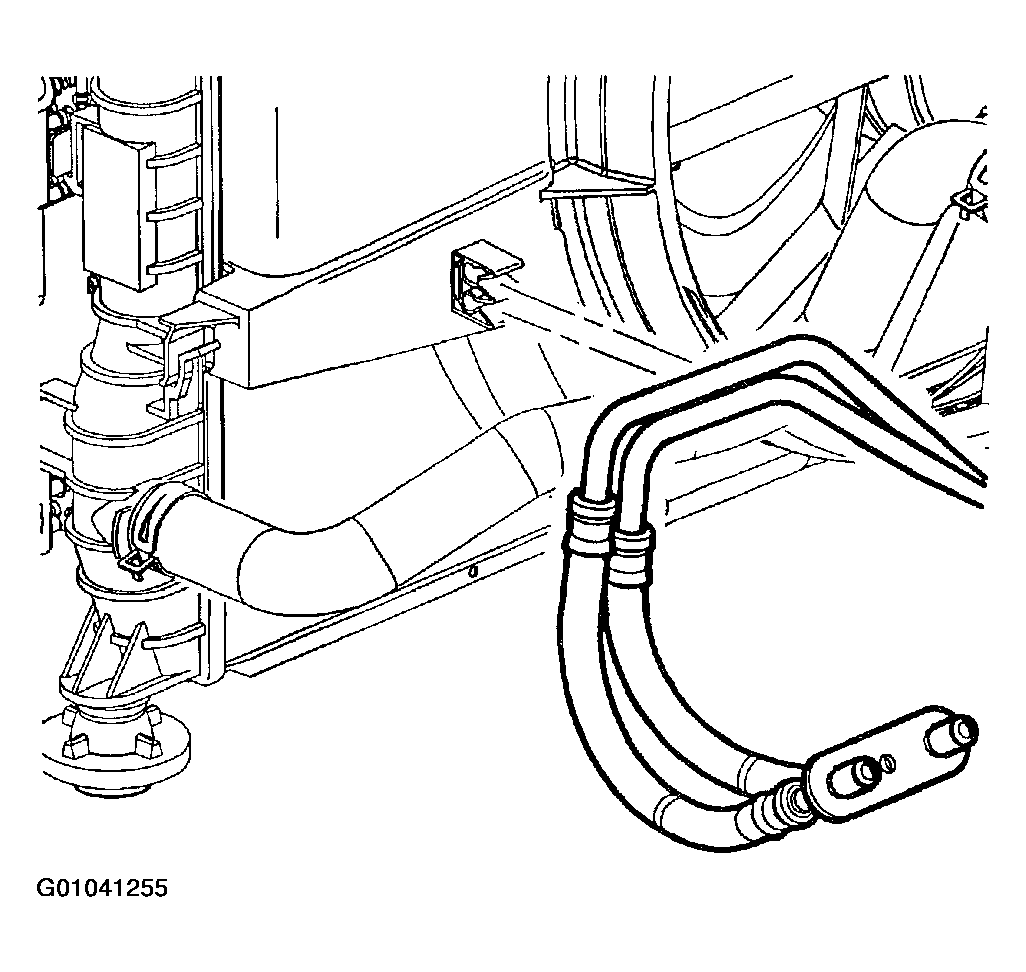

Unclip transmission cooler lines from fan assembly.

Fig 3: Unclipping Transmission Cooler Lines From Fan Assembly
Courtesy of GENERAL MOTORS CORP.

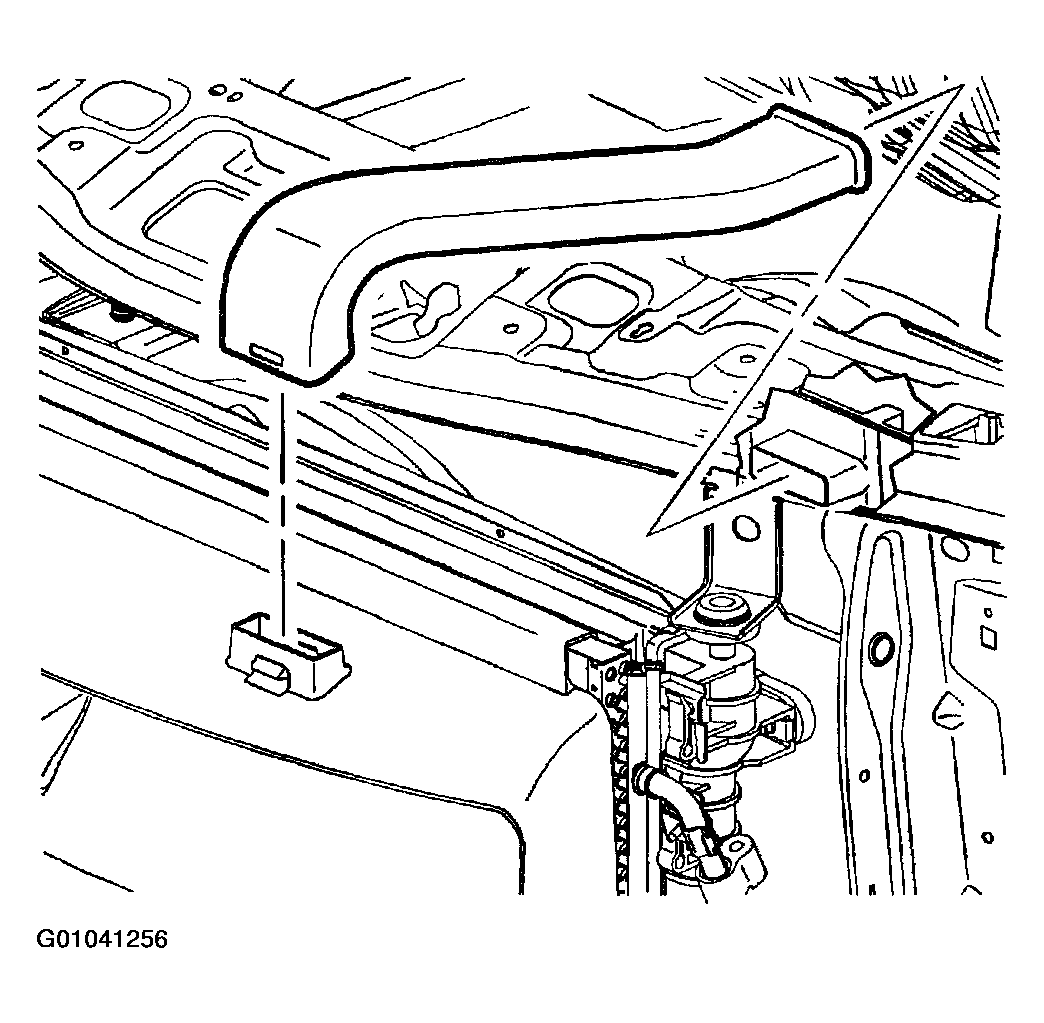

Remove battery box inlet air duct.

Fig 4: Removing Battery Box Inlet Air Duct
Courtesy of GENERAL MOTORS CORP.

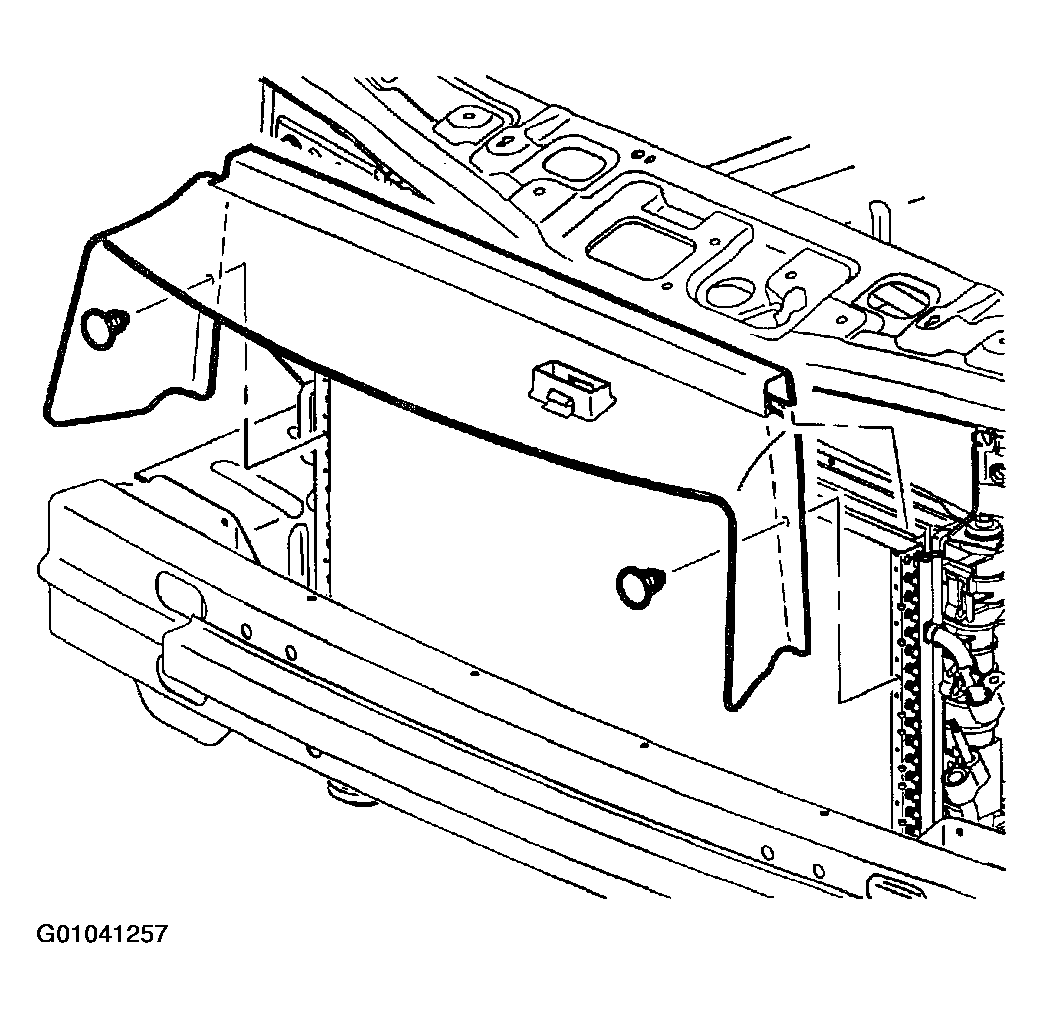

Remove condenser splash shield.

Fig 5: Removing Condenser Splash Shield
Courtesy of GENERAL MOTORS CORP.

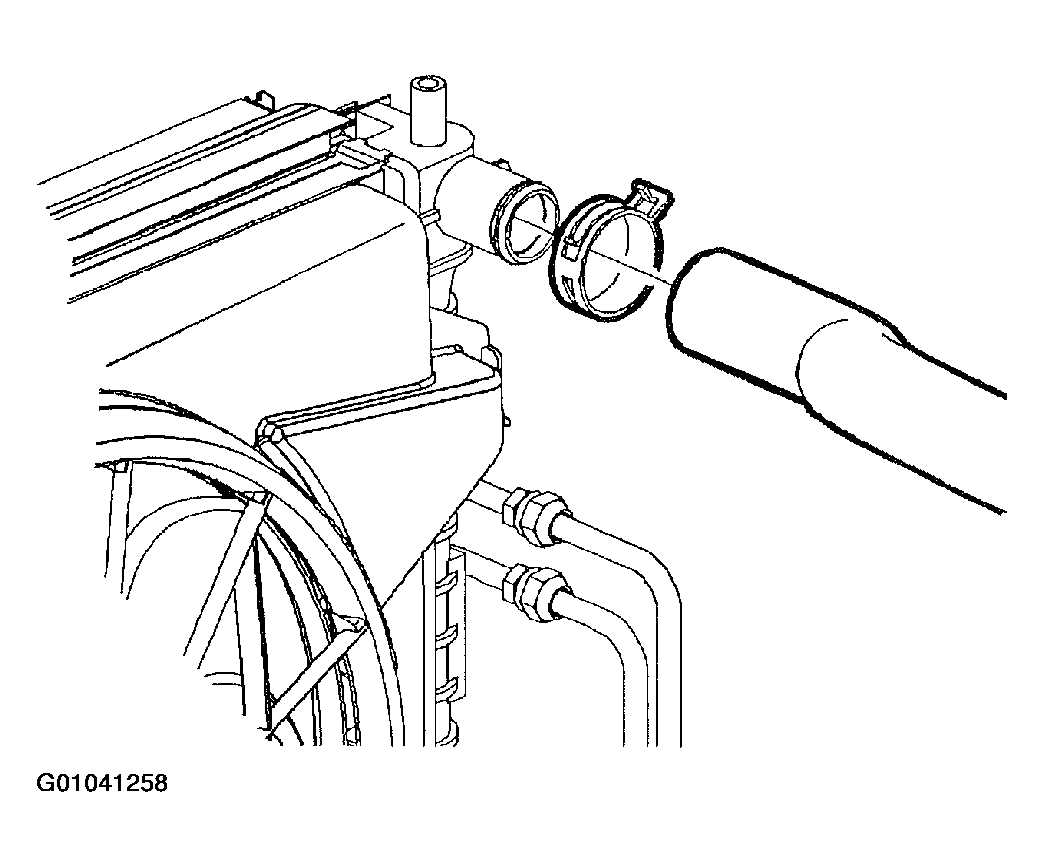

Remove radiator inlet hose.

Fig 6: Removing Radiator Inlet Hose
Courtesy of GENERAL MOTORS CORP.

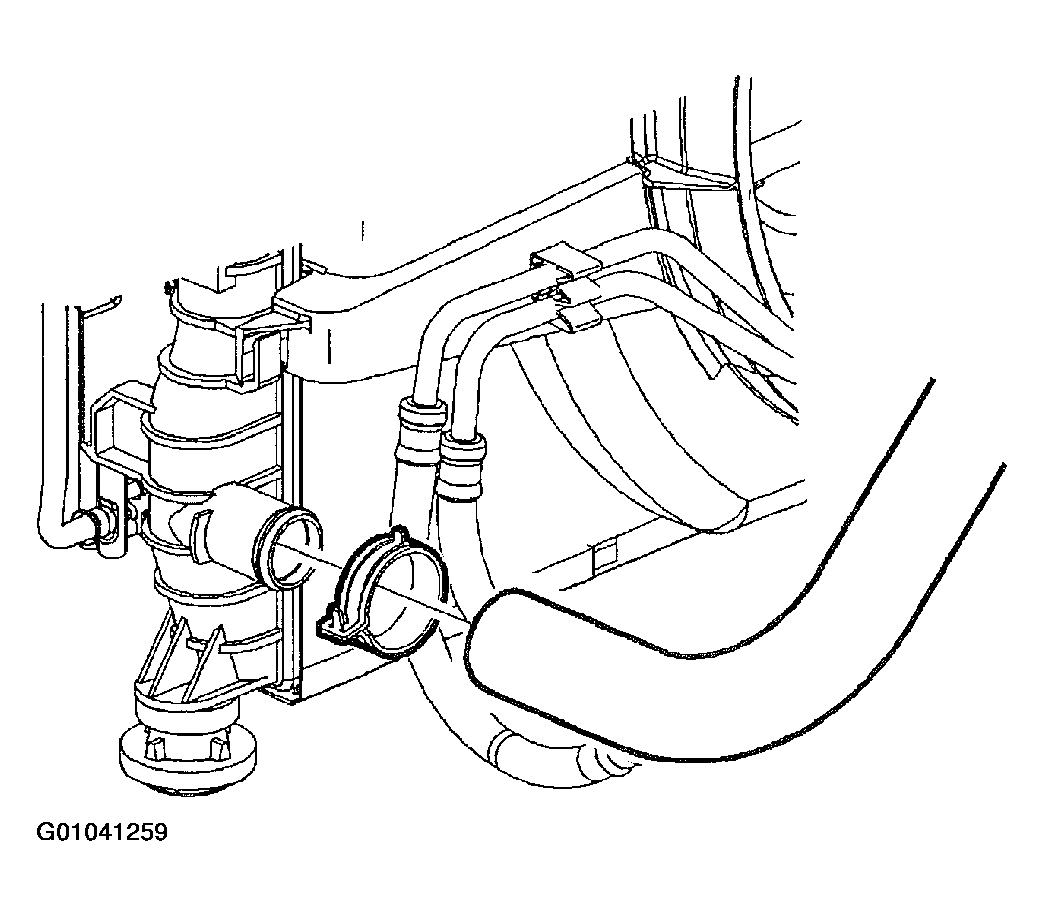

Remove radiator outlet hose.

Fig 7: Removing Radiator Outlet Hose
Courtesy of GENERAL MOTORS CORP.

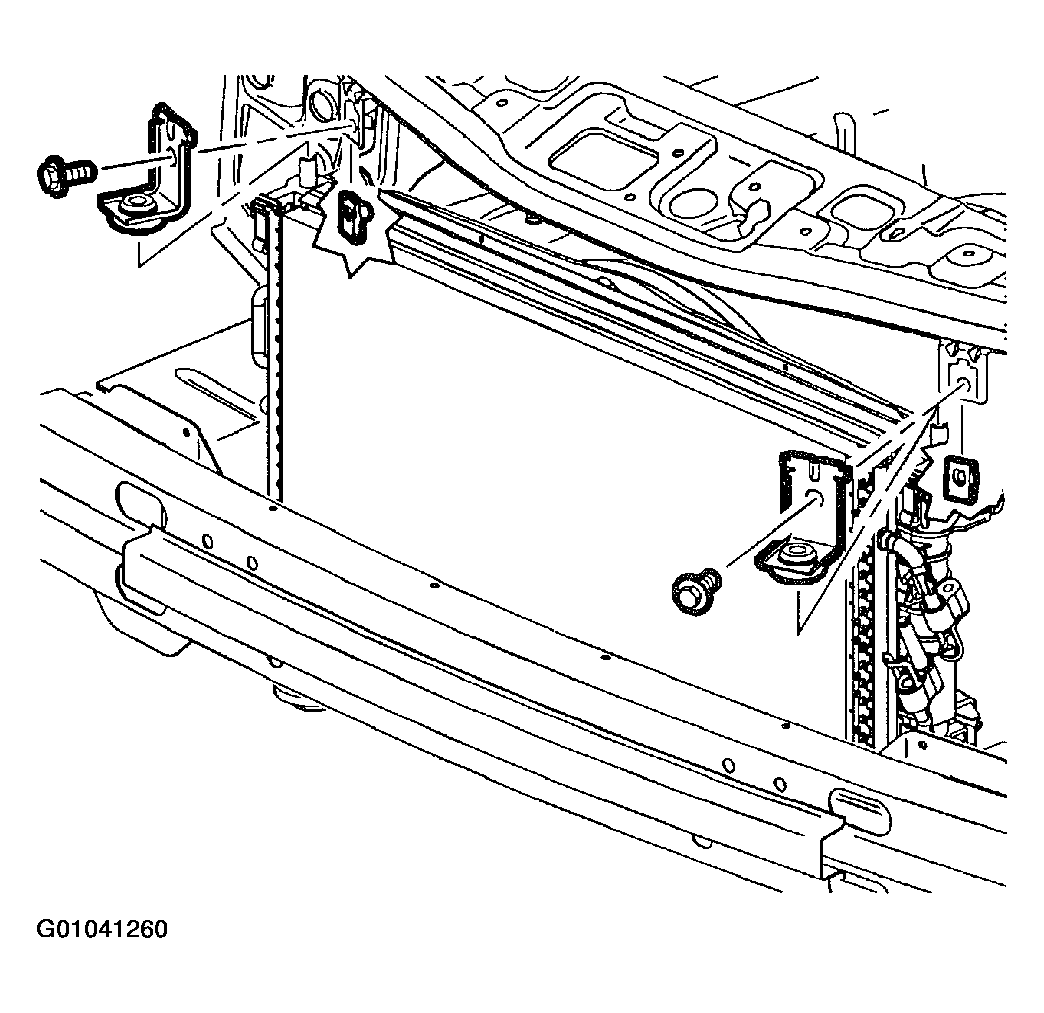

Remove upper CRFM bracket assemblies.

Fig 8: Removing Upper Crfm Bracket Assemblies
Courtesy of GENERAL MOTORS CORP.

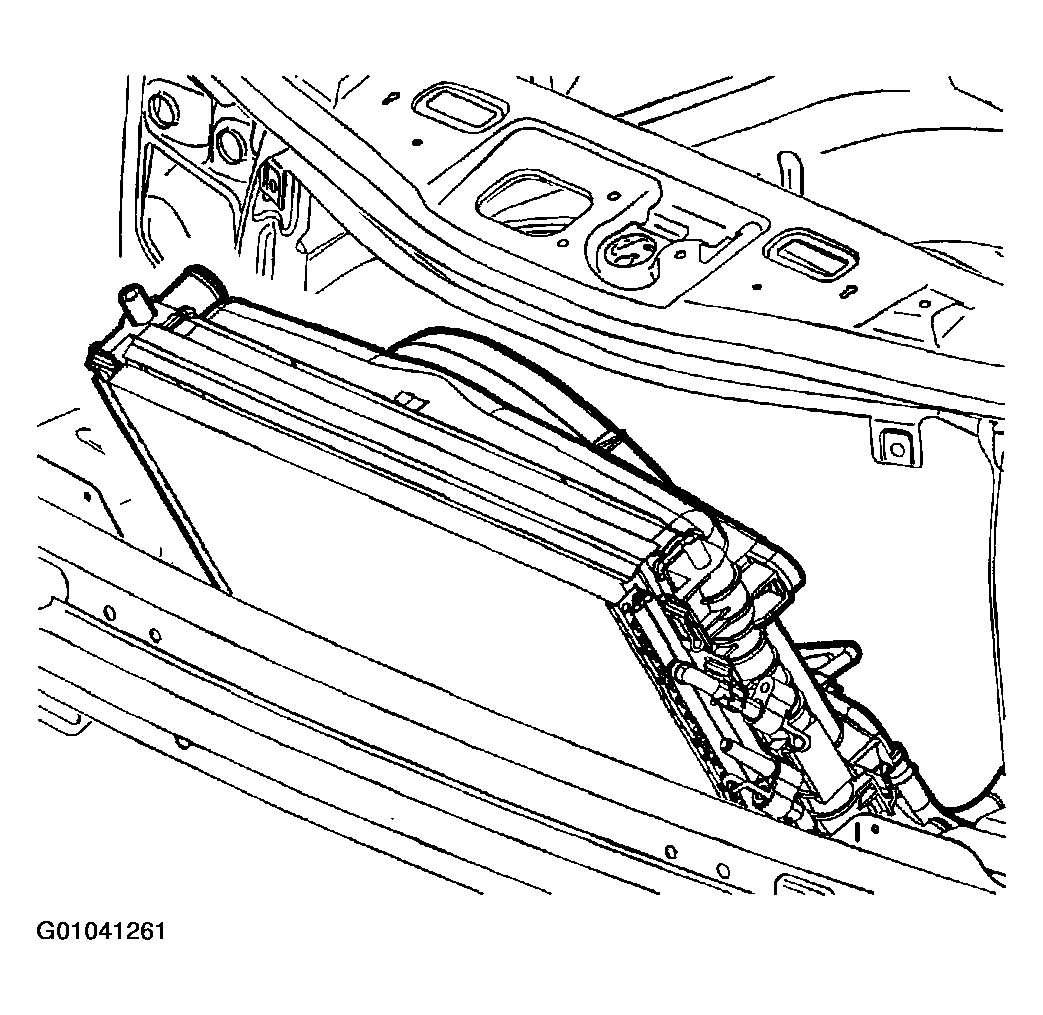

Lift CRFM assembly from lower brackets and carefully move bottom of assembly rearward while tilting the top forward.

Fig 9: Removing Crfm Assembly
Courtesy of GENERAL MOTORS CORP.

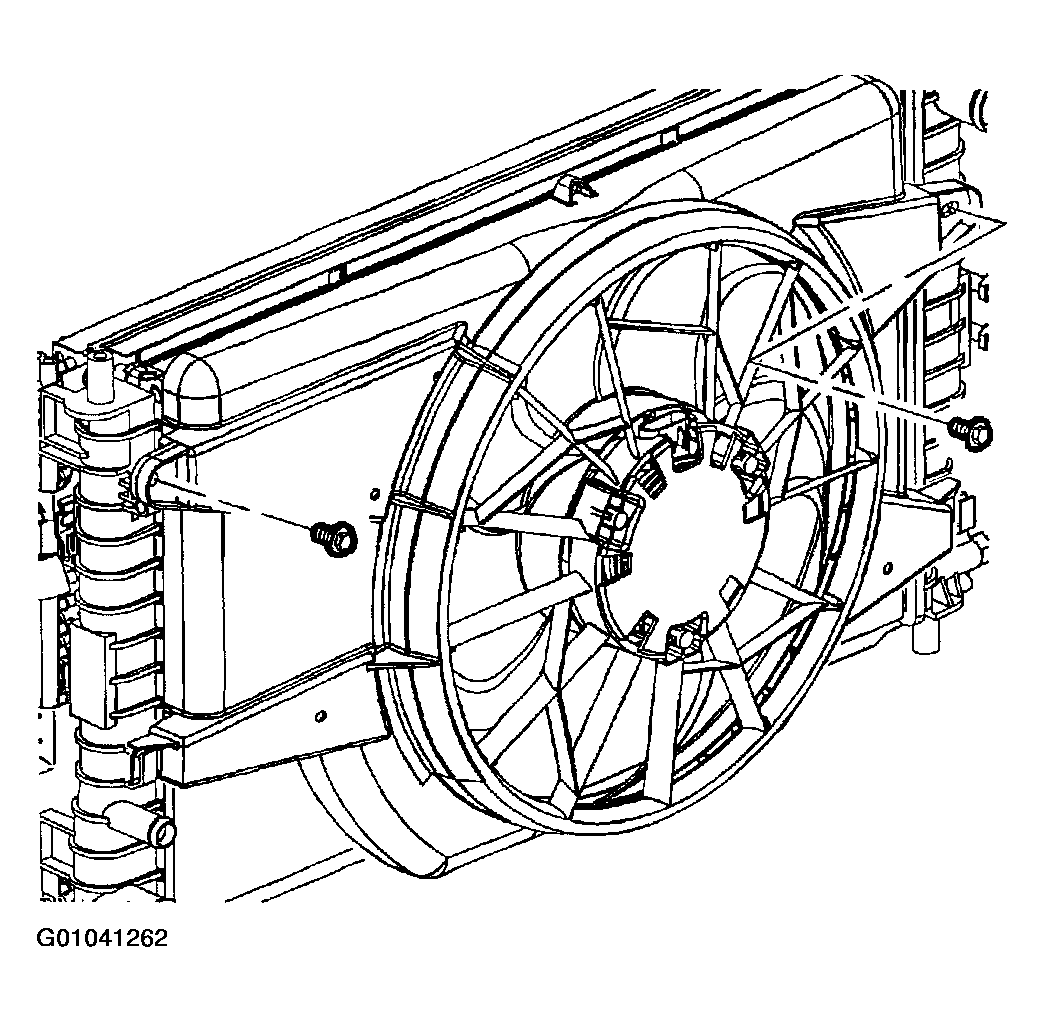

Remove fan assembly to radiator bolt.
Remove fan assembly.

Fig 10: REMOVING FAN ASSEMBLY
Courtesy of GENERAL MOTORS CORP.
