Cooling Bridge Replacement - L81: Removal

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative battery cable.
Lift and support intake manifold.

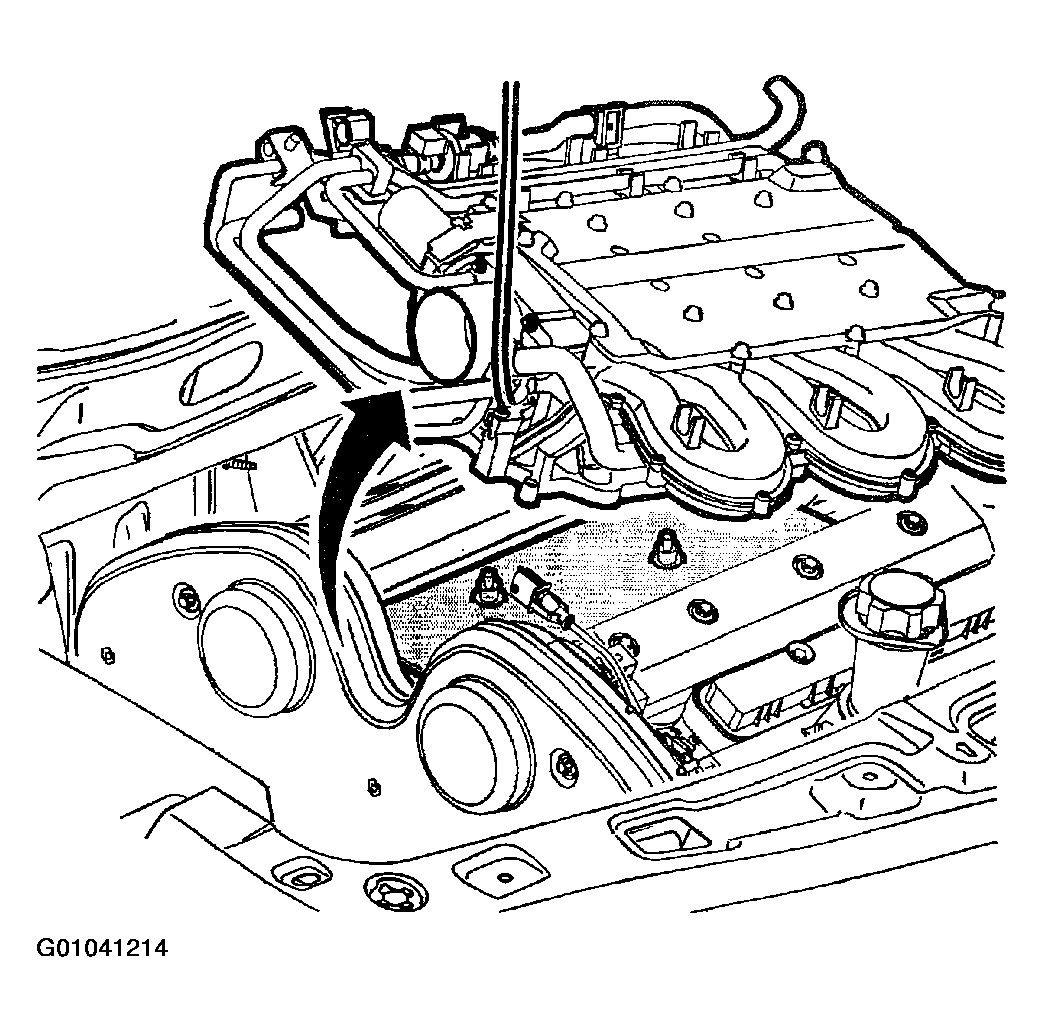

Fig 1: Lifting Intake Manifold
Courtesy of GENERAL MOTORS CORP.
Drain engine coolant.
Disconnect electrical connector at coolant bridge.
Disconnect coolant hoses at coolant bridge.

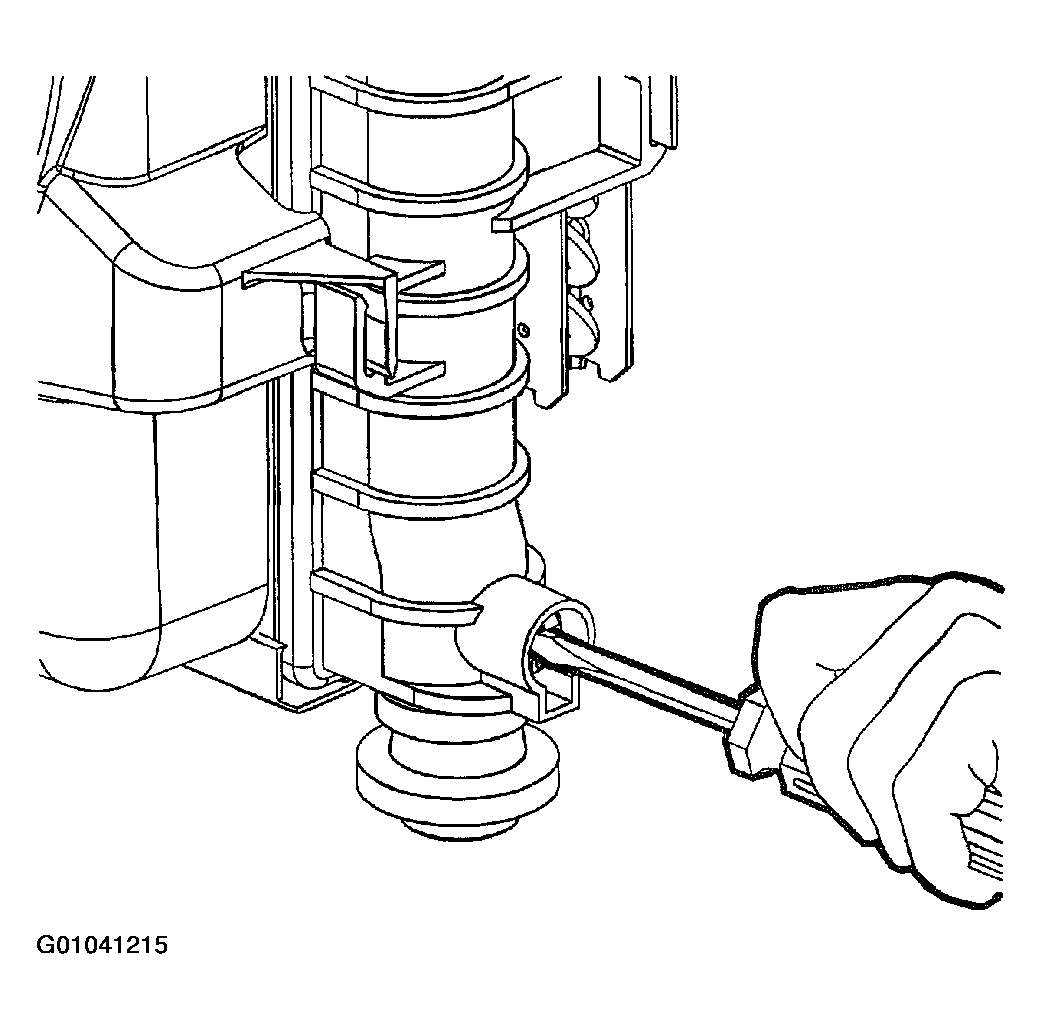

Fig 2: Draining Engine Coolant
Courtesy of GENERAL MOTORS CORP.
Remove coolant bridge bolts.
Remove coolant bridge.
Remove all four seals at coolant bridge.

Fig 3: Removing Coolant Bridge Bolts
Courtesy of GENERAL MOTORS CORP.
