Cooling Bridge Replacement - L81: Installation

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean and dry area before installing new seals.
  2. Install lower seals into position.
  3. Install coolant bridge.
  4. Install upper seals into position.
  5. Install coolant bridge bolt.

    Torque:

    Coolant Bridge Bolt - L81: 30 N.m (22 ft-lbs)

  6. Connect electrical connector at coolant bridge.
  7. Connect coolant hoses at coolant bridge.

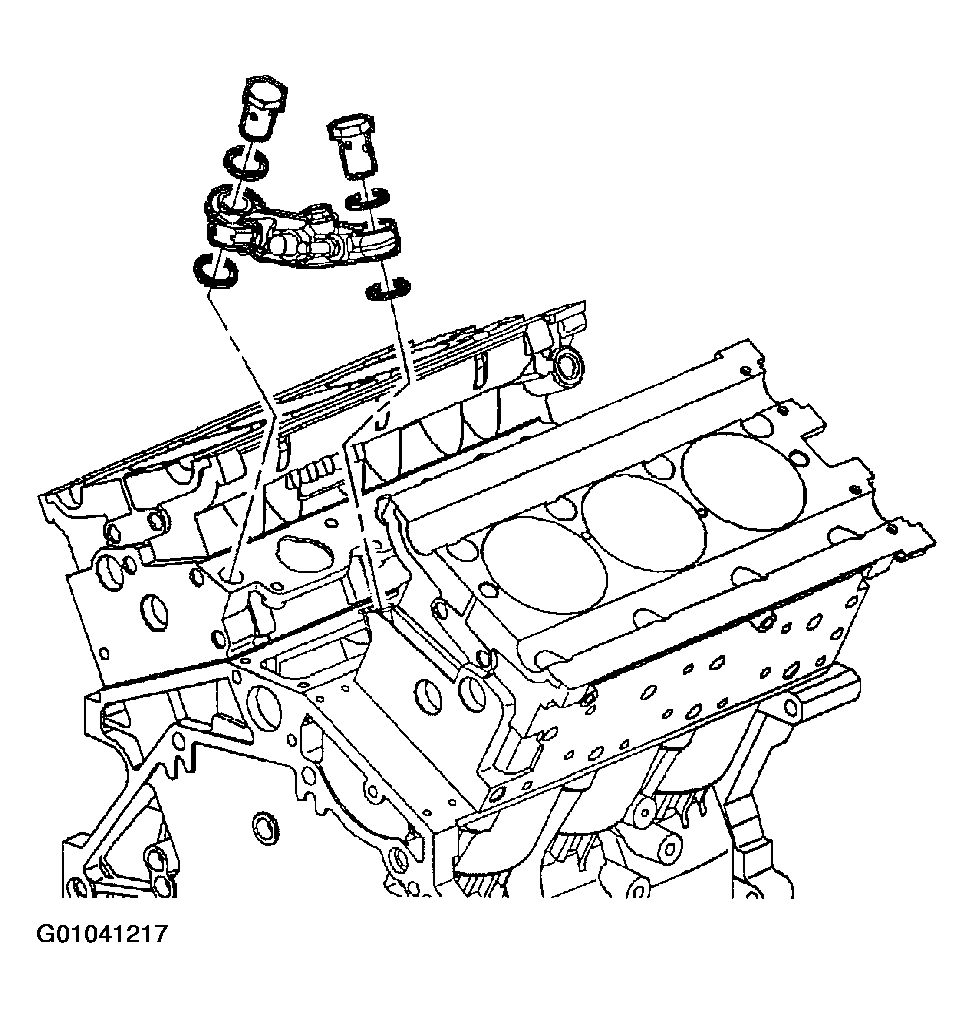

    Fig 1: Installing Coolant Bridge Bolt
    G01041217Courtesy of GENERAL MOTORS CORP.
  8. Install intake manifold.
  9. Connect negative battery cable.

    Torque:

    Battery Terminal Bolt: 17 N.m (13 ft-lbs)

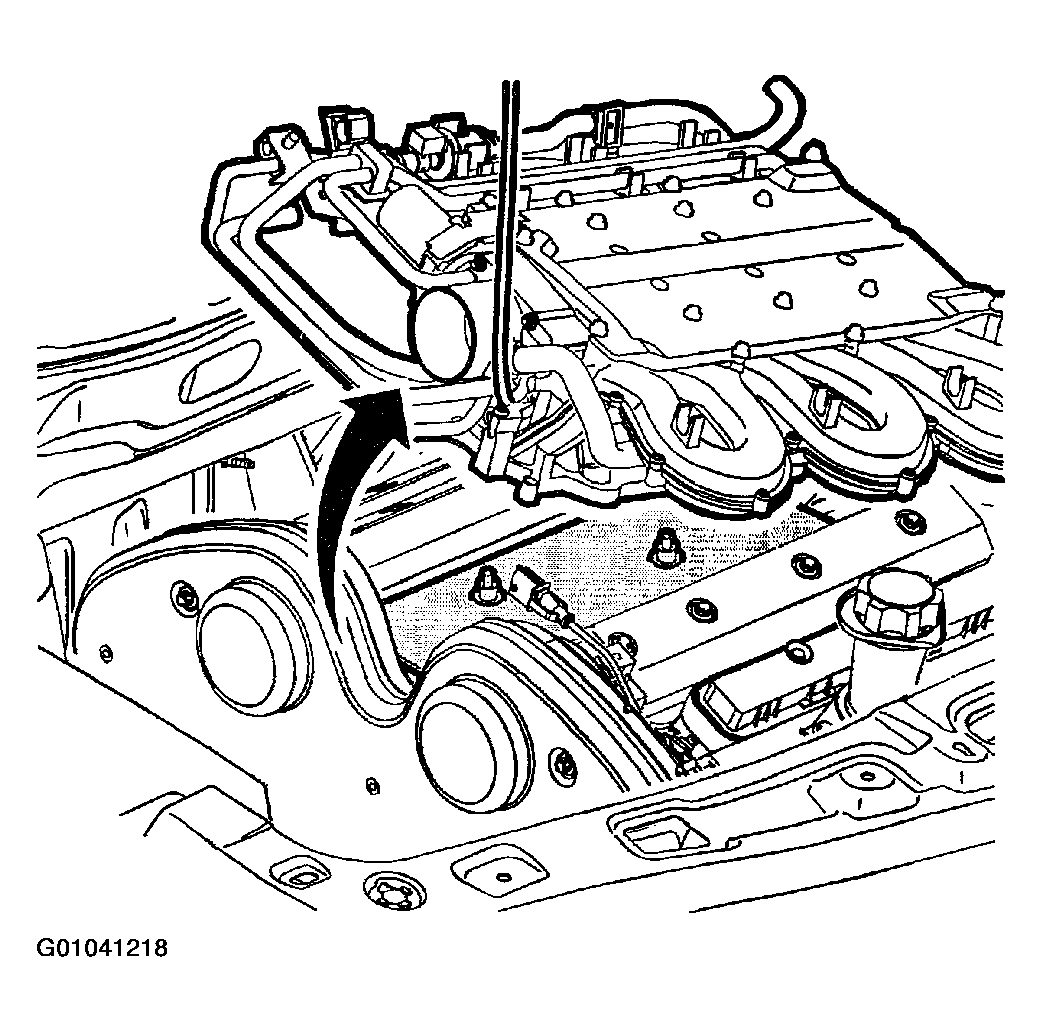

    Fig 2: Installing Intake Manifold
    G01041218Courtesy of GENERAL MOTORS CORP.
  10. Fill coolant.

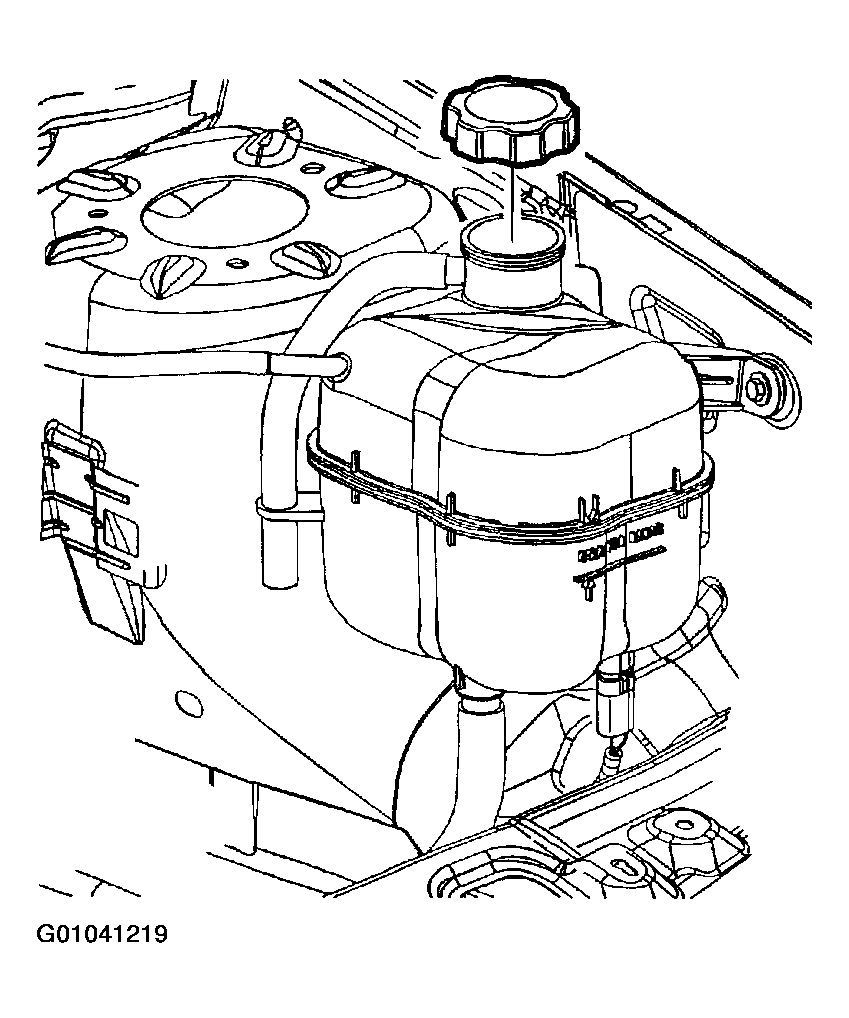

    Fig 3: Installing Coolant Reservoir Cap
    G01041219Courtesy of GENERAL MOTORS CORP.
