Auxiliary Coolant Pump Hose: Installation

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install auxiliary coolant pump hose and clamp to pump outlet.
  2. Position clamp at 10 o'clock.
  3. Lower vehicle.
  4. Install auxiliary coolant pump hose and clamp to engine port.
  5. Position clamp at 2 o'clock.
  6. Install battery box /UHJB assembly.
  7. Connect negative battery cable.

    Torque:

    Battery Terminal Bolt: 17 N.m (13 ft-lbs)

  8. Fill cooling system.

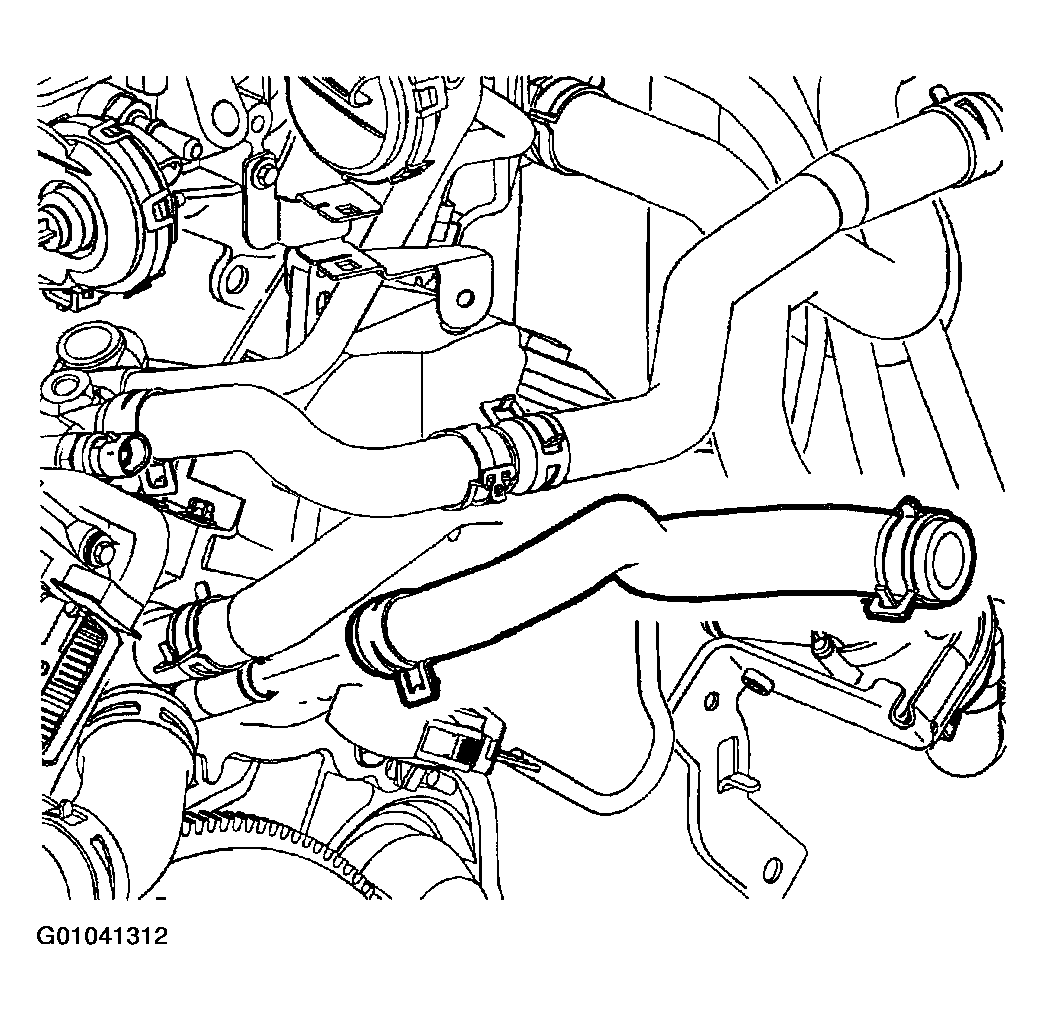

    Fig 1: Installing Auxiliary Coolant Pump Hose And Clamp To Engine Port
    G01041312Courtesy of GENERAL MOTORS CORP.
