Chart 3 - Auxiliary Coolant Pump Inoperative

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

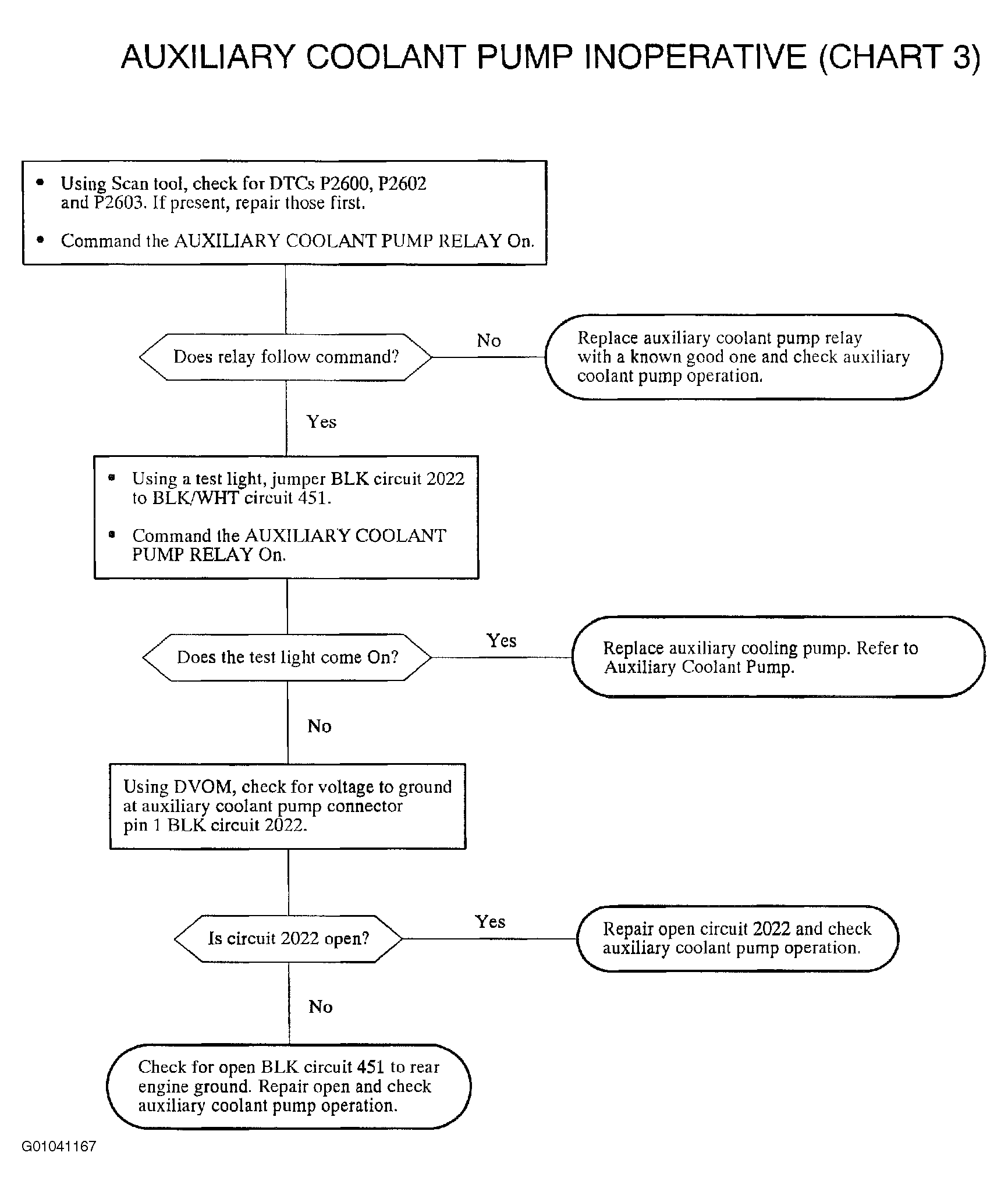

Fig 1: Auxiliary Coolant Pump Inopertive (Chart 3)
G01041167Courtesy of GENERAL MOTORS CORP.
