Trim Height Specifications

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

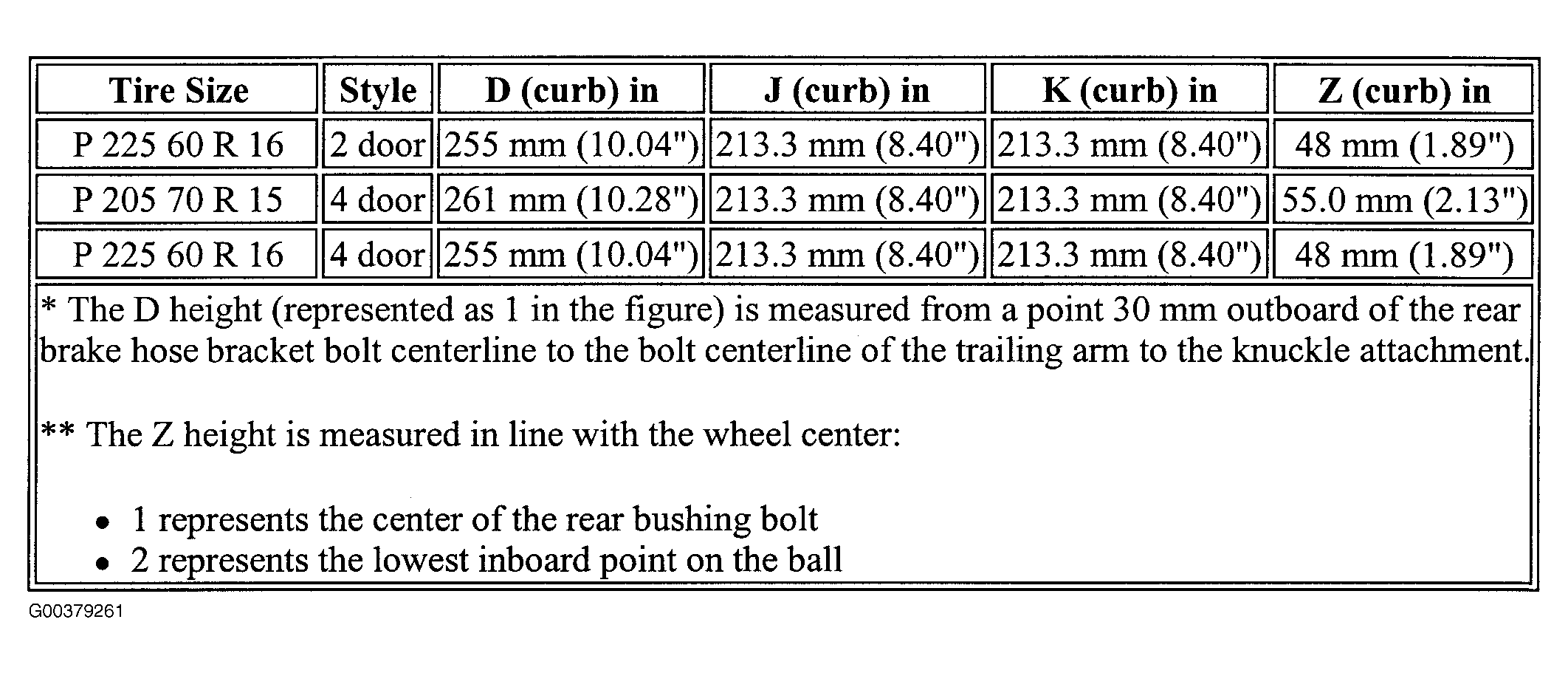

Fig 1: Trim Height Specifications

Courtesy of GENERAL MOTORS CORP.

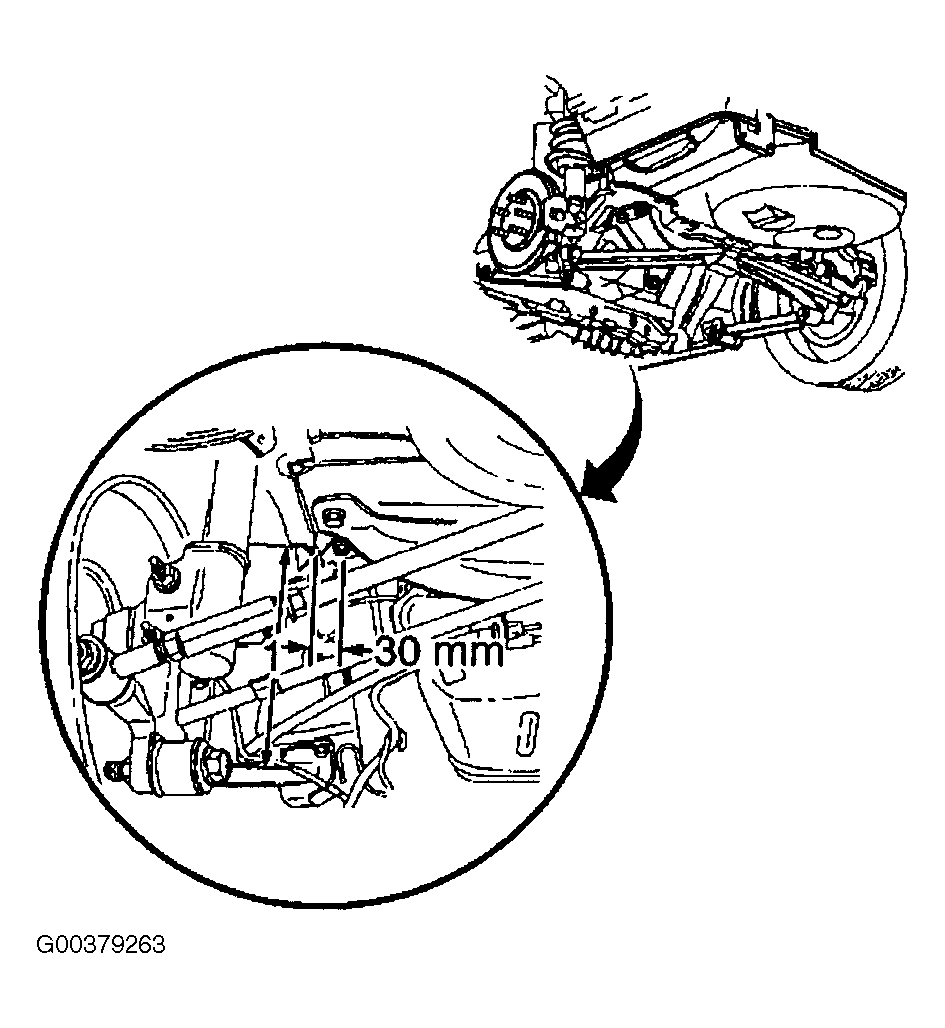

Fig 2: Measuring D Height

Courtesy of GENERAL MOTORS CORP.

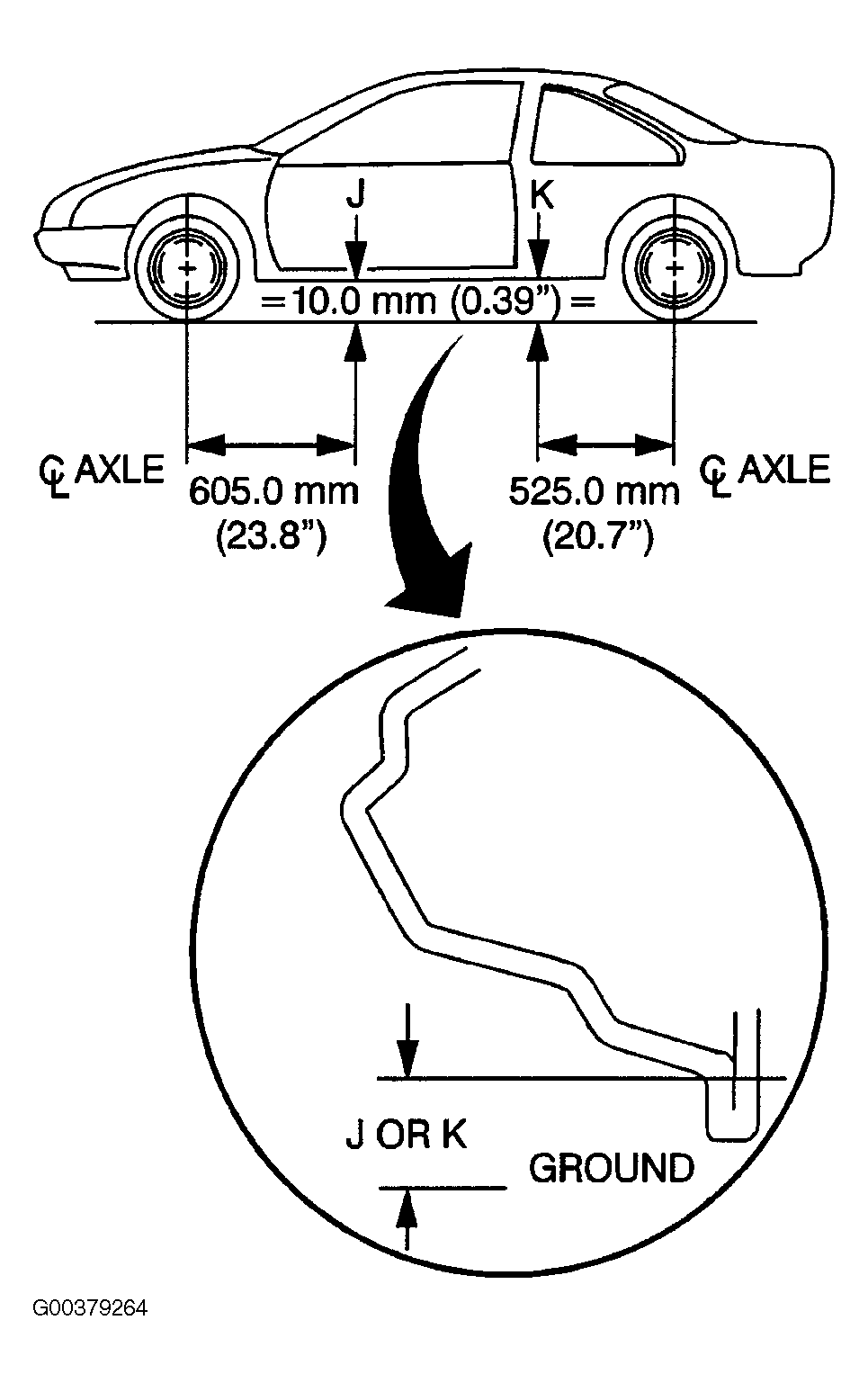

Fig 3: Measuring J Or K Height

Courtesy of GENERAL MOTORS CORP.

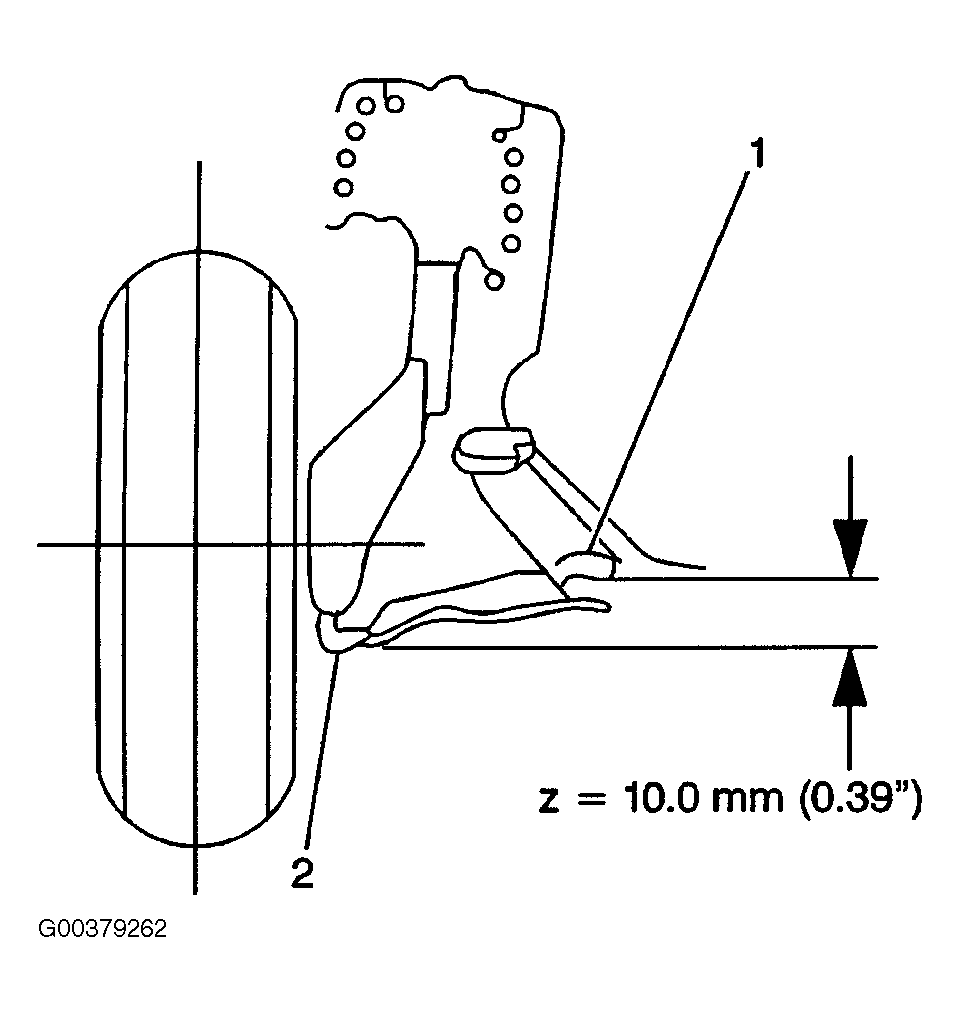

Fig 4: Measuring Z Height

Courtesy of GENERAL MOTORS CORP.
