Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Remove the coil spring.
Make a mark on the lower control arm at the cam indicator (1).

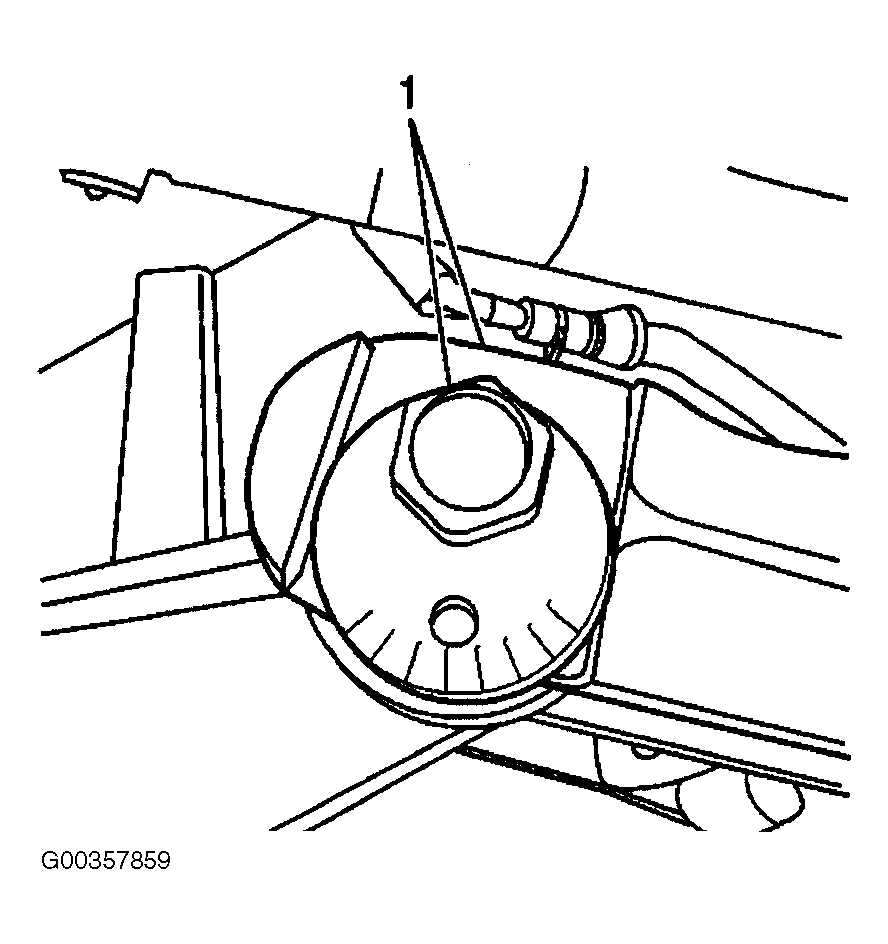

Fig 1: Locating Lower Control Arm Cam Indicator
Courtesy of GENERAL MOTORS CORP.
Remove the lower control arm to crossmember mounting bolts (1 & 5).

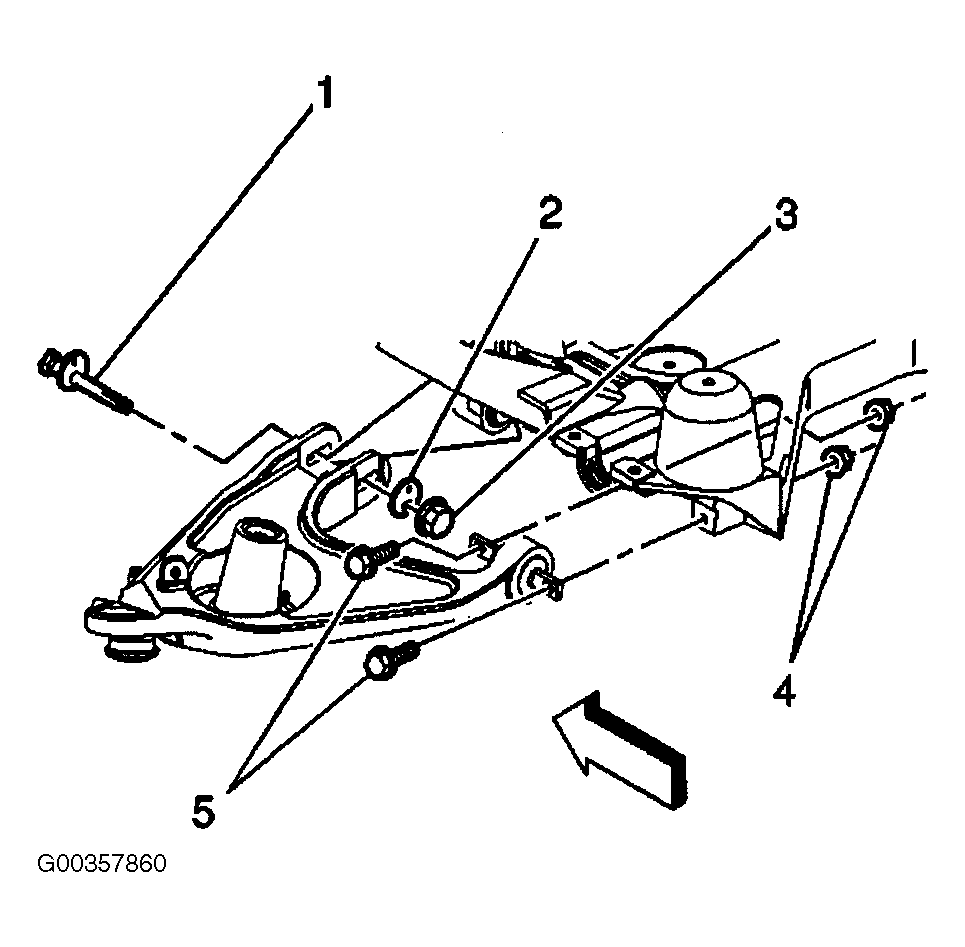

Fig 2: Identifying Lower Control Arm Mounting Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the lower control arm.
