Insulator Panel (Left Side): Removal
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

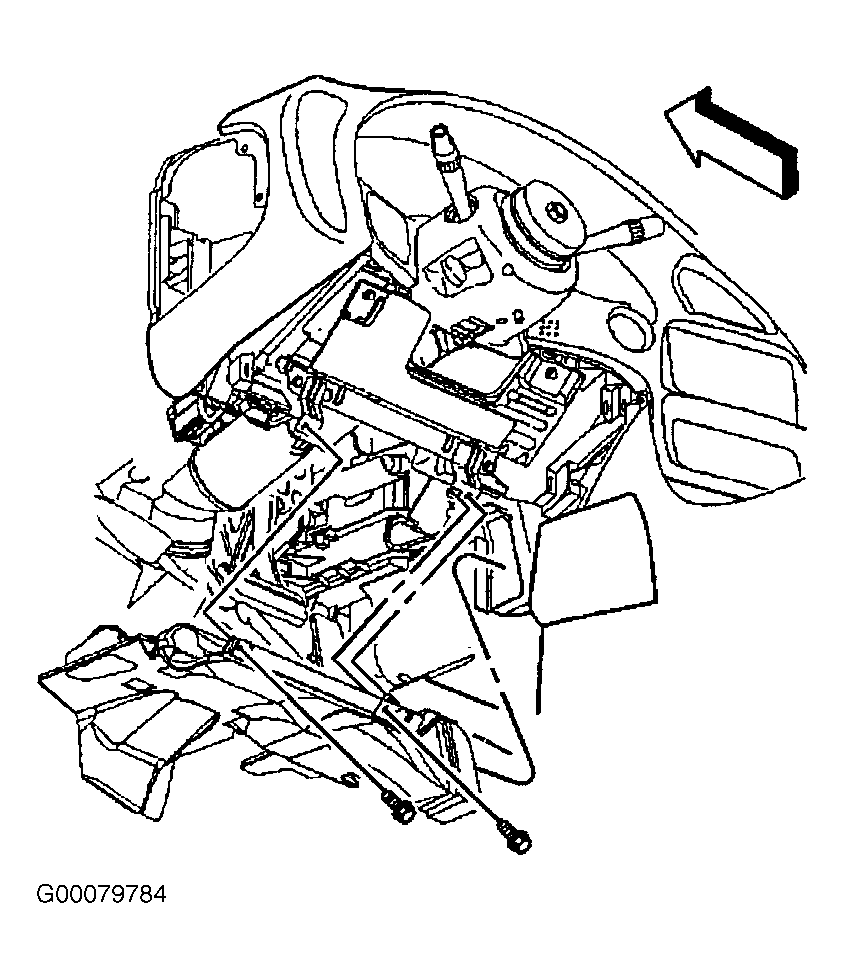

Remove the fasteners securing the closeout insulator panel to the instrument panel retainer. See Figure . Remove the heater temperature sensor from the closeout insulator panel by turning 1/4 turn counter clockwise. Disconnect electrical connector from the lower instrument panel courtesy light. Slide the closeout insulator panel rearward in order to remove from the vehicle.
