Rear Shock Absorber Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated. See Fig 1.
  2. Install in the reverse order of removal.

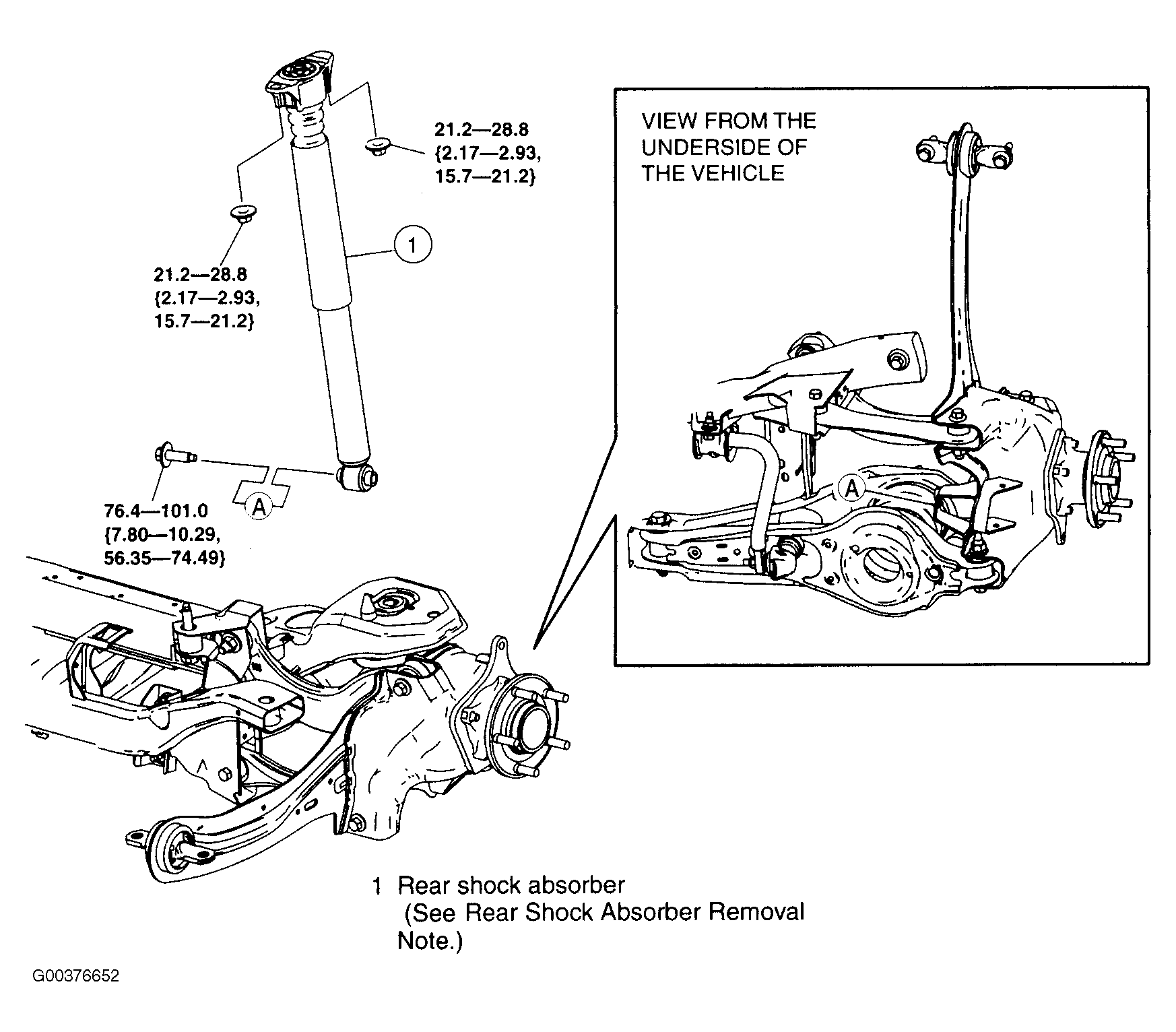

Fig 1: Rear Shock Absorber With Torque Specifications
G00376652Courtesy of MAZDA MOTORS CORP.
