Rear Crossmember Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear auto leveling sensor. See AUTO LEVELING SENSOR REMOVAL/INSTALLATION .
  2. Remove the rear stabilizer. See REAR STABILIZER REMOVAL/INSTALLATION .
  3. Remove the charcoal canister. See CHARCOAL CANISTER REMOVAL/INSTALLATION .
  4. Remove in the order indicated. See Fig 1.
  5. Install in the reverse order of removal.
  6. Inspect the wheel alignment and adjust it if necessary. See WHEEL ALIGNMENT .

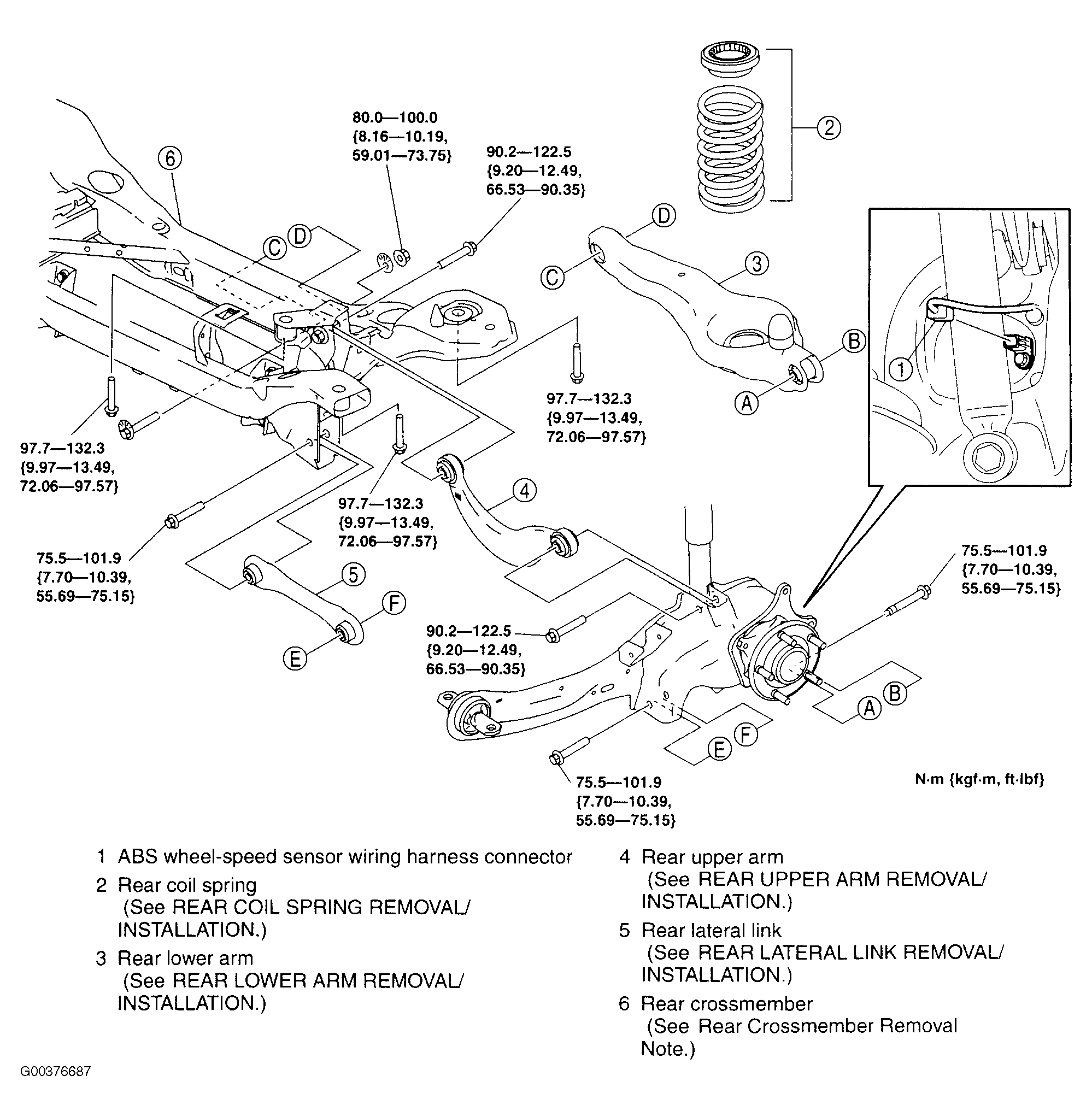

Fig 1: Crossmember With Torque Specifications
G00376687Courtesy of MAZDA MOTORS CORP.
