Front Lift

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Position the (suspension contact) front lift under the outer edge of the front suspension lower control arms.

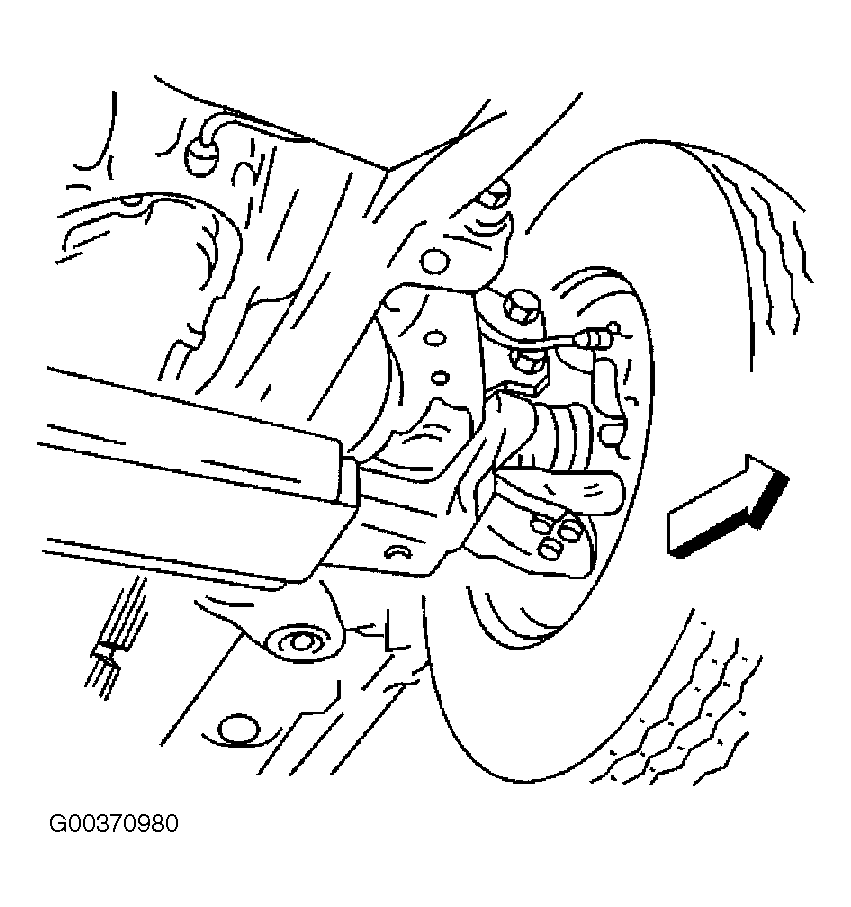

Fig 1: Locating Front Suspension Lift Contact Point
G00370980Courtesy of GENERAL MOTORS CORP.
