Front Hoist Pads
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The front hoist pads must not contact the rocker panels, the front fenders, or the floor pan.

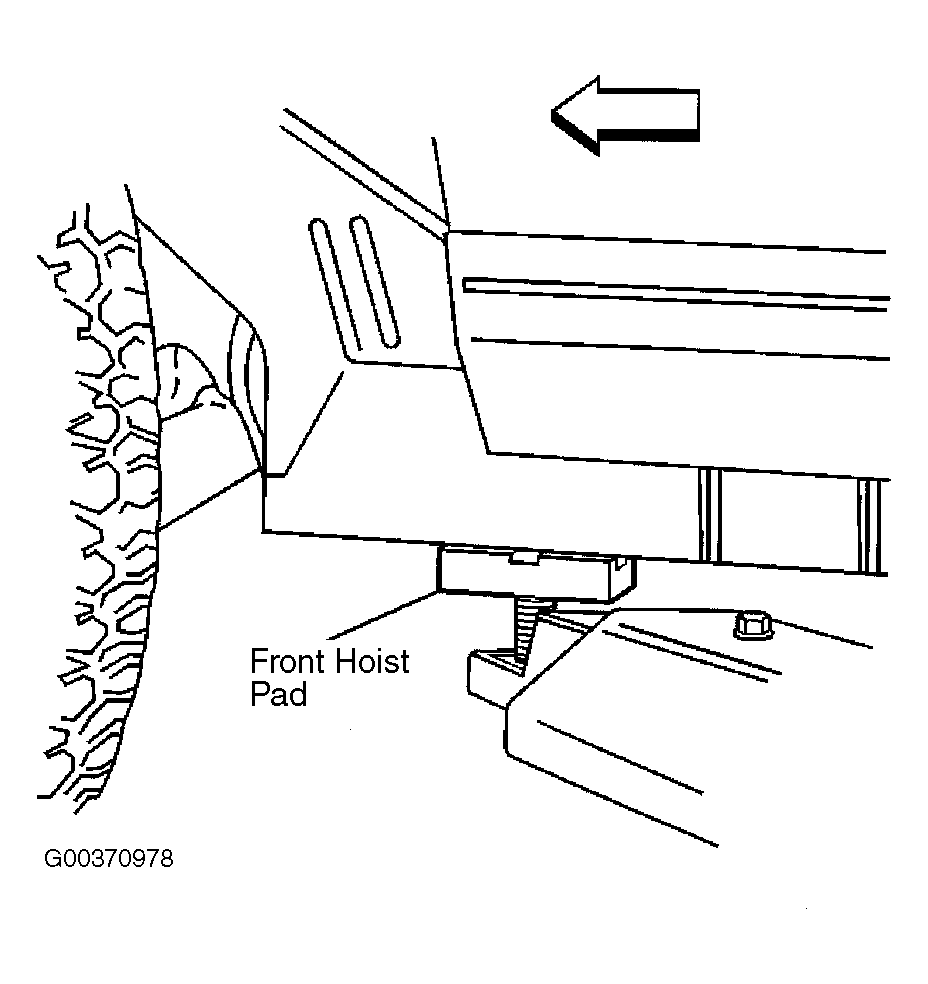

Position the (frame contact) front hoist pads as follows:
- Under the front frame rail shipping slot reinforcements.
- The long sides of the pads parallel to the frame rails.
